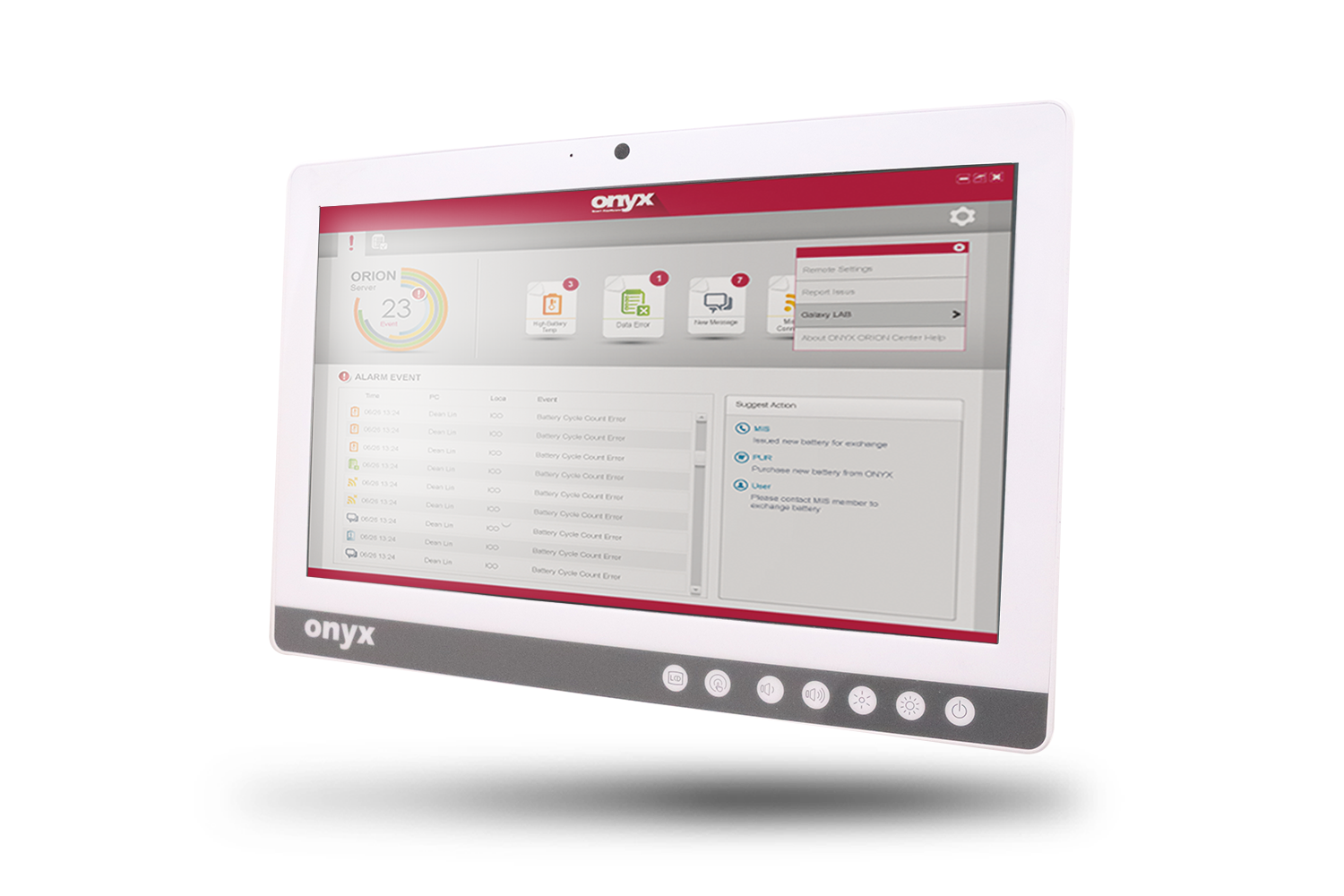

15.6" Intel i7/i5/i3 Medical Panel PC with Dual Battery
● Highest level of medical safety protection , EMC4.1/ Safety 3.2
● Cleanability with hospital solvents
● Hot swappable design, support 24/7 run time
● Intel® Skylake Dual-Core i5
● Support remote monitor/control/update (ORION compatible)
● isolated LAN / COM port
Specifications
System
Processor
Intel® Celeron
Intel® Skylake
OS Support
Windows® 7
Windows® 10
Ubuntu 18.04 LTS
IGEL (thin client solution)
System Memory
16GB
Security
Trusted Platform Module 2.0
Storage
M.2 SSD up to 512GB
Wireless Communication
BT 4.0 (optional)
802.11 ac/a/b/g/n
Speaker
3Wx2
Display
Display Size
15.6”
Resolution
1920x 1080(FHD)
Max. Colors
262K
Contrast Ratio
500:1
Luminance (cd/m2)
220nits
I/O
USB
USB 2.0
USB 3.0 (Type-A)
Video Out
HDMI x 1
Serial Port
COM Port x1
Ethernet
Gigabit LAN x2
Mechanical and Environmental
Power Supply
DC-in
Degree of Protection
IPX1 in the back
IP65 in the front
Operating Temperature
0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature
-20°C ~ 60°C(-4°F ~ 140°F)
Storage Humidity
10%~95%@40°C, non-condensing
Dimension (WxDxH)
392 x 43 x 265 mm
Package Size
520 x 190 x 400 mm
Gross Weight
4.7 Kg (10.3lb)
Net Weight
2.7kg (5.9lb)
Certifications
CE (ITE)
CE (Medical)
FCC (Medical)
FCC (ITE)
UL
cUL
TELEC
