ACCEL-JS241 (Preliminary)

24” FHD NVIDIA Jetson AGX Orin Medical All in One PC for AI Inference

Product Feature

  • 24" Full HD LCD Wide Viewing Angle
  • Capacitive Multi-Touch Screen
  • NVIDIA Jetson AGX Orin Platoform for Medical AI usage
  • Support optional 3G / 12G SDI or HDMI input for image capture
  • IP54
  • Isolated
  • Touch

Features

Specifications

Main Specifications
CPU

NVIDIA Jetson AGX Orin
12-core Arm® Cortex®-A78AE v8.2 64-bitCPU3MB L2 + 6MB L3 /
8-core Arm® Cortex®-A78AE v8.2 64-bitCPU 2MB L2 + 4MB L3

System Memory 64 / 32GB 256-Bit LPDDR5
Graphics NVIDIA Ampere architecture
2048 NVIDIA CUDA® cores and 64 Tensor Cores /
1792 NVIDIA CUDA® cores and 56 Tensor Cores
Storage 64GB eMMC and M.2 NVMe SSD x 1
OS support Linux
Security TPM2.0 Chip (Infineon SLB9670XQ2.0)
Speaker 2W x 2
Function Key Power On/Off, LCD,Brightness Up/Down, Touch
Screen On/Off
Power Requirement 100~240V AC
Display
Size 24" LCD
Max. Resolution 1920 x 1080
Luminance(cd/m2)(TYP) 250 nits
View Angle 178˚(H)/178˚(V)
Contrast Ratio 3000:1
Back Light Life Time 30,000 Hours
Touch Screen Capacitive Multi-Touch
I/O
USB USB Type C x 2 for USB 3.2 Gen 1,
USB Type A x 2 for USB 2.0
Ethernet RS-232 x 2 or x1 (when backup battery is installed)
Video in(Optional) 3G / 12G SDI or HDMI
Serial port RS-232 x 2
Mechanical and Environmental
Operating Temperature 0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)

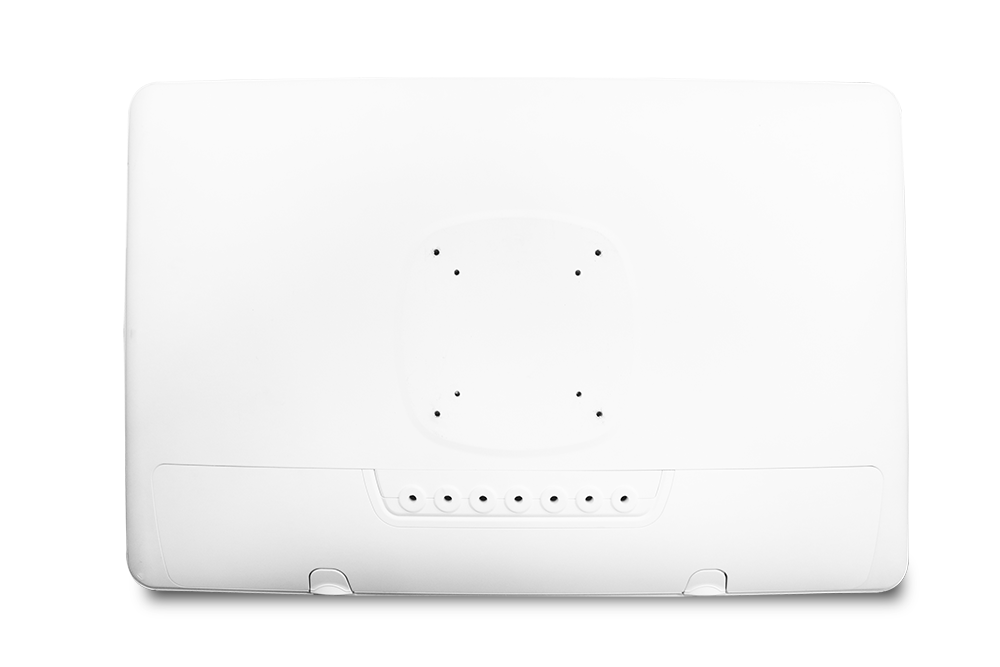

Mounting VESA 75/100 mm
Degree of protection IP65 in the front, IPX1 in the back
Dimension TBD
Package Size TBD
Gross Weight TBD
Net Weight TBD
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
