UPower Lite-62

6 Slot Charger

Product Feature

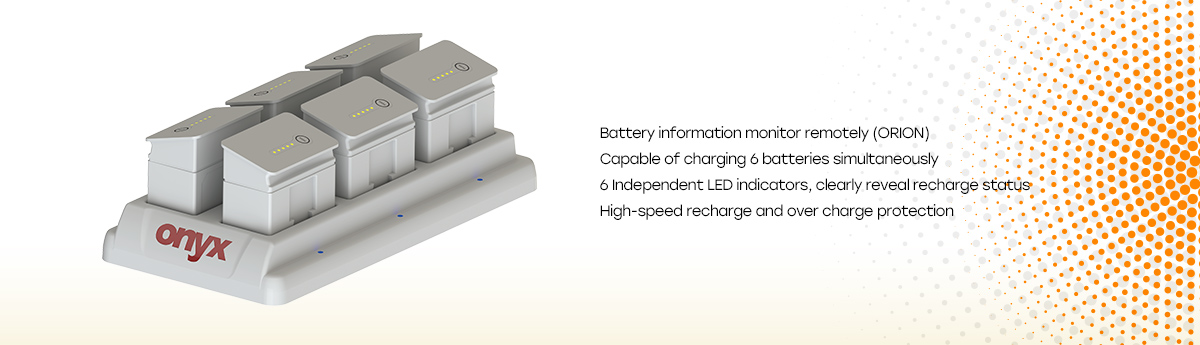

  • Battery information monitor remotely (ORION)
  • Capable of charging 6 batteries simultaneously
  • 6 Independent LED indicators, clearly revealrecharge status
  • High-speed recharge and over charge protection
  • Swap
  • SIAA

Features

1 6

Specifications

Main Specifications
Battery Charge Time 2.5 hrs for 85%, 3.5 hrs for 100% @std battery
Input Power 24V/250W adapter
Protection

Supports protection from over-voltage(input), over-current (input and output),
short circuit, over-charge.

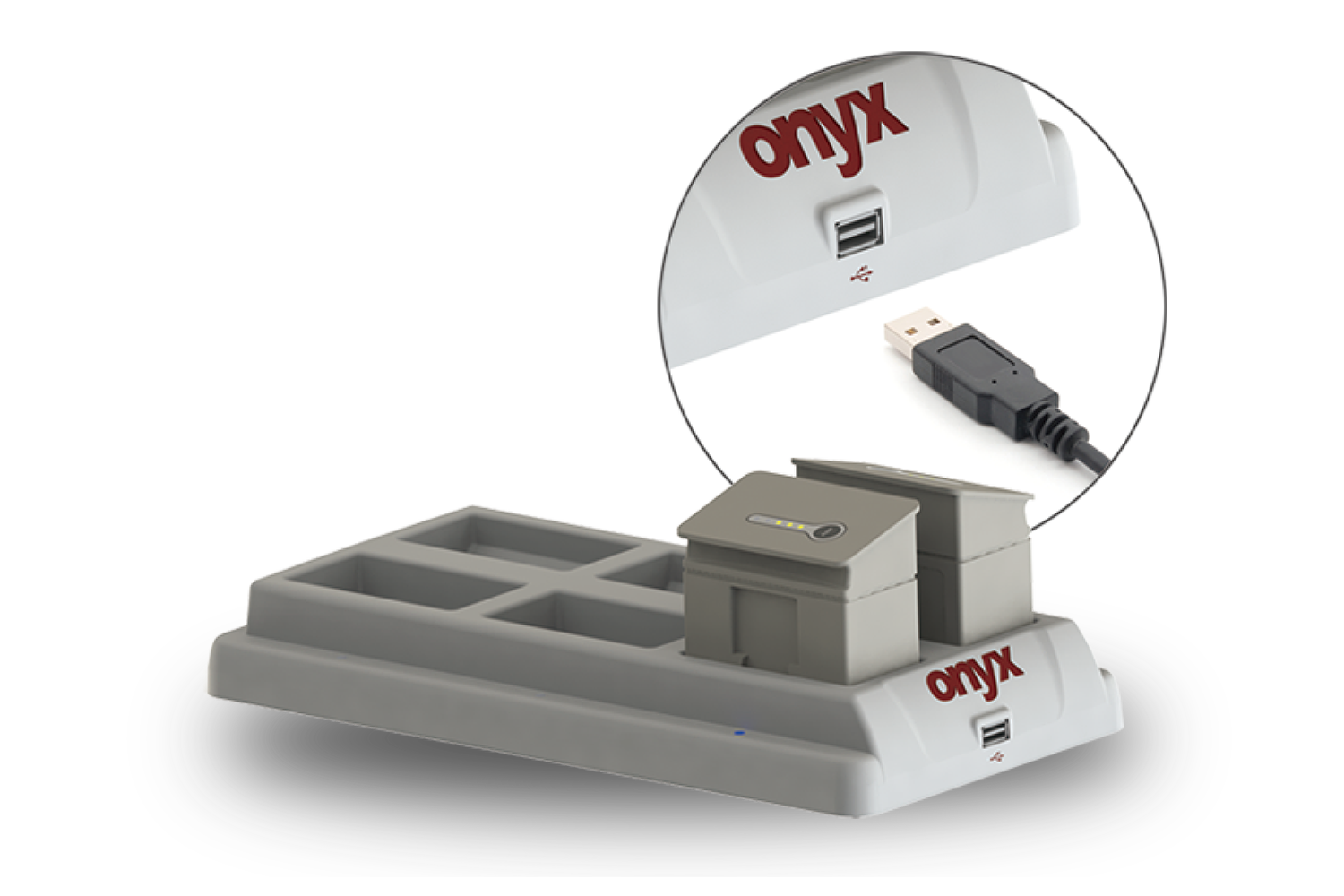

IO Interface USB TypeA x 1(Data transport only), DC-in x 1
Certification CE, FCC
Mechanical and Environmental
Architecture ABS + PC
Color White
Dimension 304(L) x 154(W) x 41(H) mm
Net Weight 1.16kg (2.56 lbs)
Packing Size 410(L) x 110(W) x 290(H) mm
Gross Weight 3kg (6.61 lbs)
Operating Temperature 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Storage Humidity 10%~95%@35°C, non-condensing
Battery LED Indicator
Blue Lighting Full Charge (AC mode)
Blue Flashing Charging (AC mode)
Green Lighting N/A
Orange Lighting N/A
Purple Lighting N/A
Green-Purple Flashing N/A
Power Supply Specification
Input Voltage 100-240V AC @50-60 Hz
Output Power 24V / 6.25A, 150W max

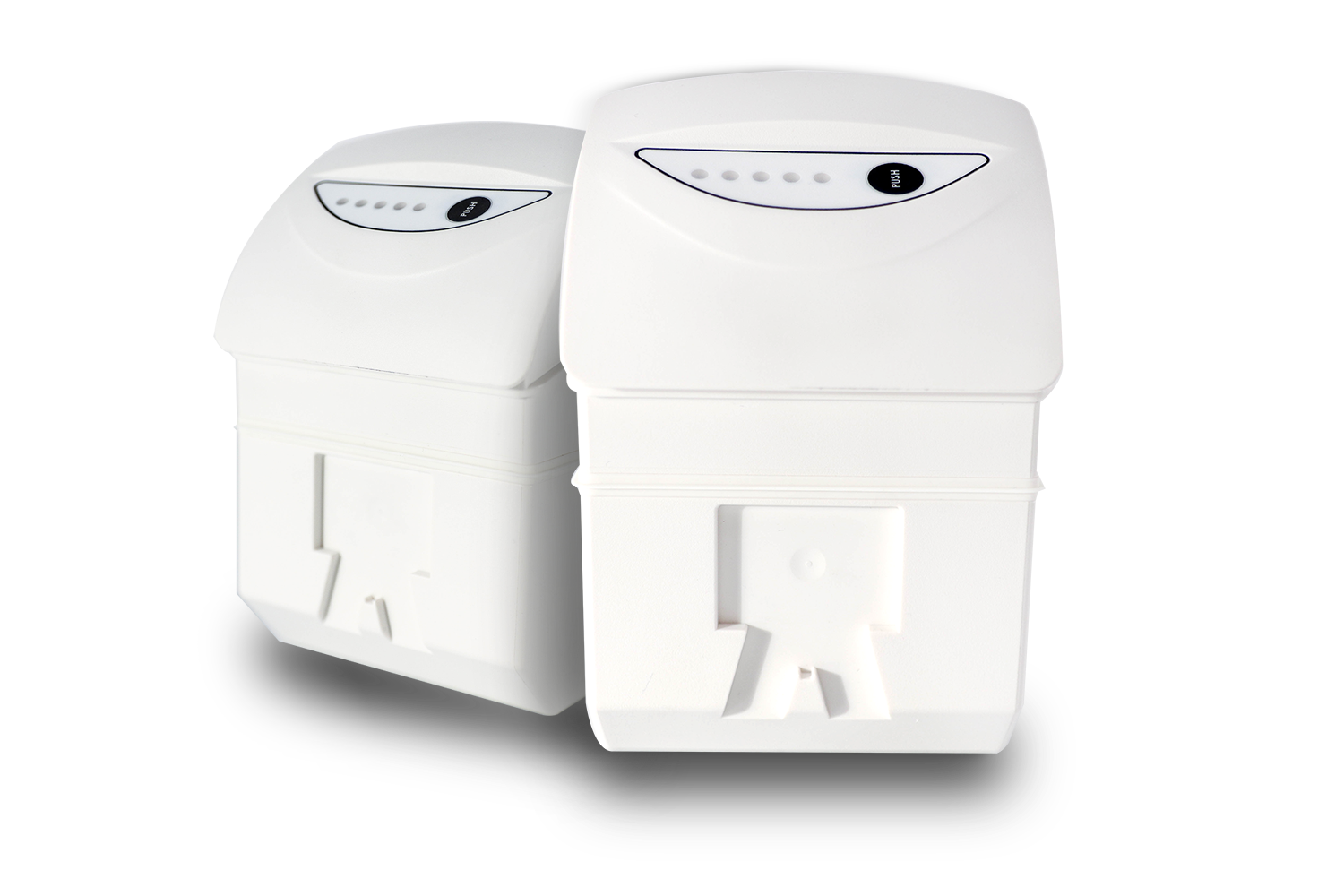

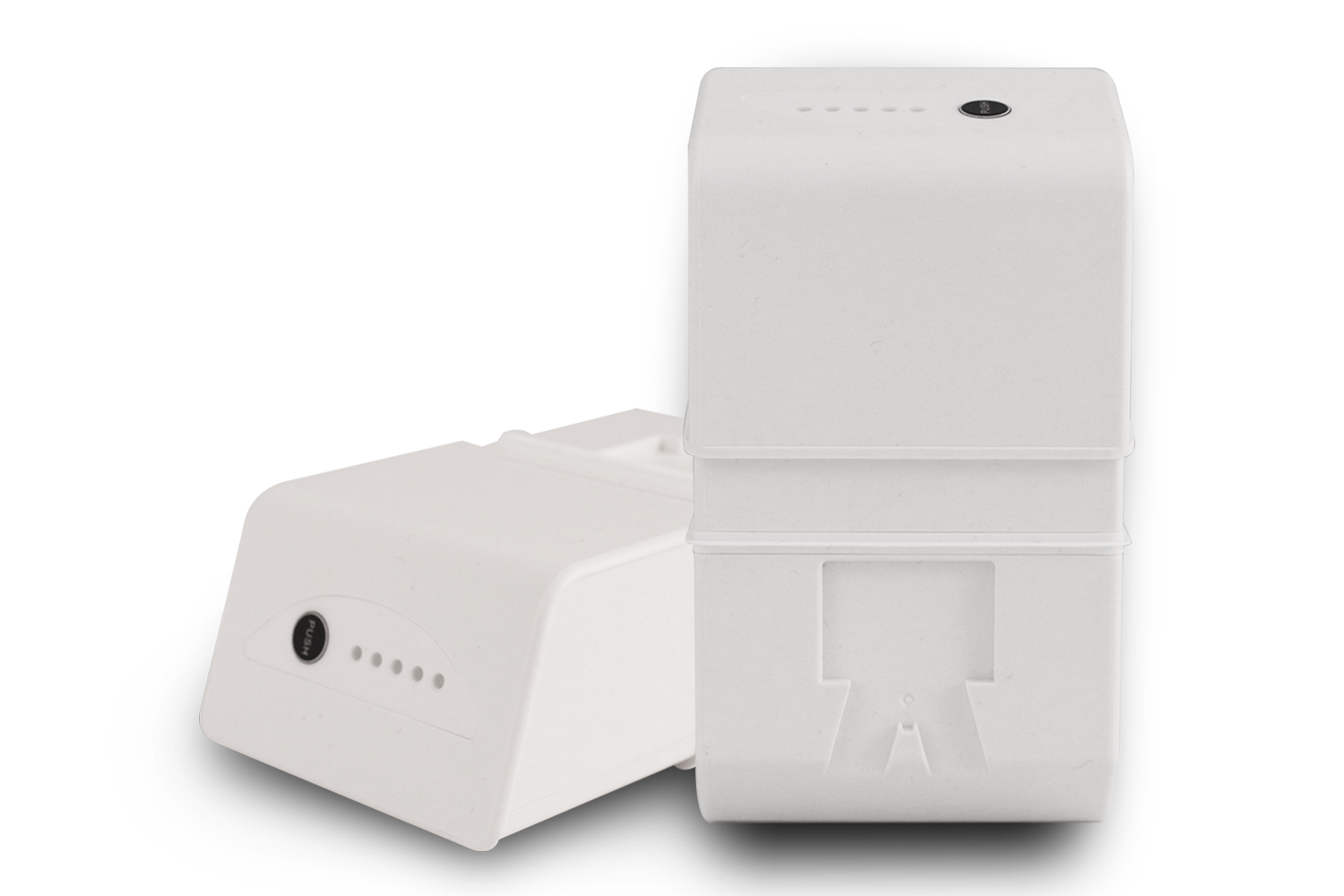

Battery Pack (optional)
Battery Type 6/9/12 Cell Lithium-ion battery
Battery Capacity 5700 / 8550 / 12060 mAh
Output Voltage 10.8 / 10.95 / 10.8V
