MEDDP-415
15” Slim Medical Display
Product Feature
- 15 " 1024 x 768 Resolution Display
- P-cap touch
- Stylish And Elegant Design
Features
1
6
Specifications
| Display | |
| Size | 15" |
| Resolution | 1024 x 768 |
| Max. Colors | 16.2M |
| Brightness (Typ.) | 300 nits |
|
Viewing Angle (CR=10)(Typ.) |
80˚(H)/80˚(V) |
| Contrast Ratio (Typ.) | 700:1 |
| Touch Screen | P-cap Touch, Protective Glass |
| System | |
| OS Support | Windows® XP, Windows® 7, Windows® 10 |

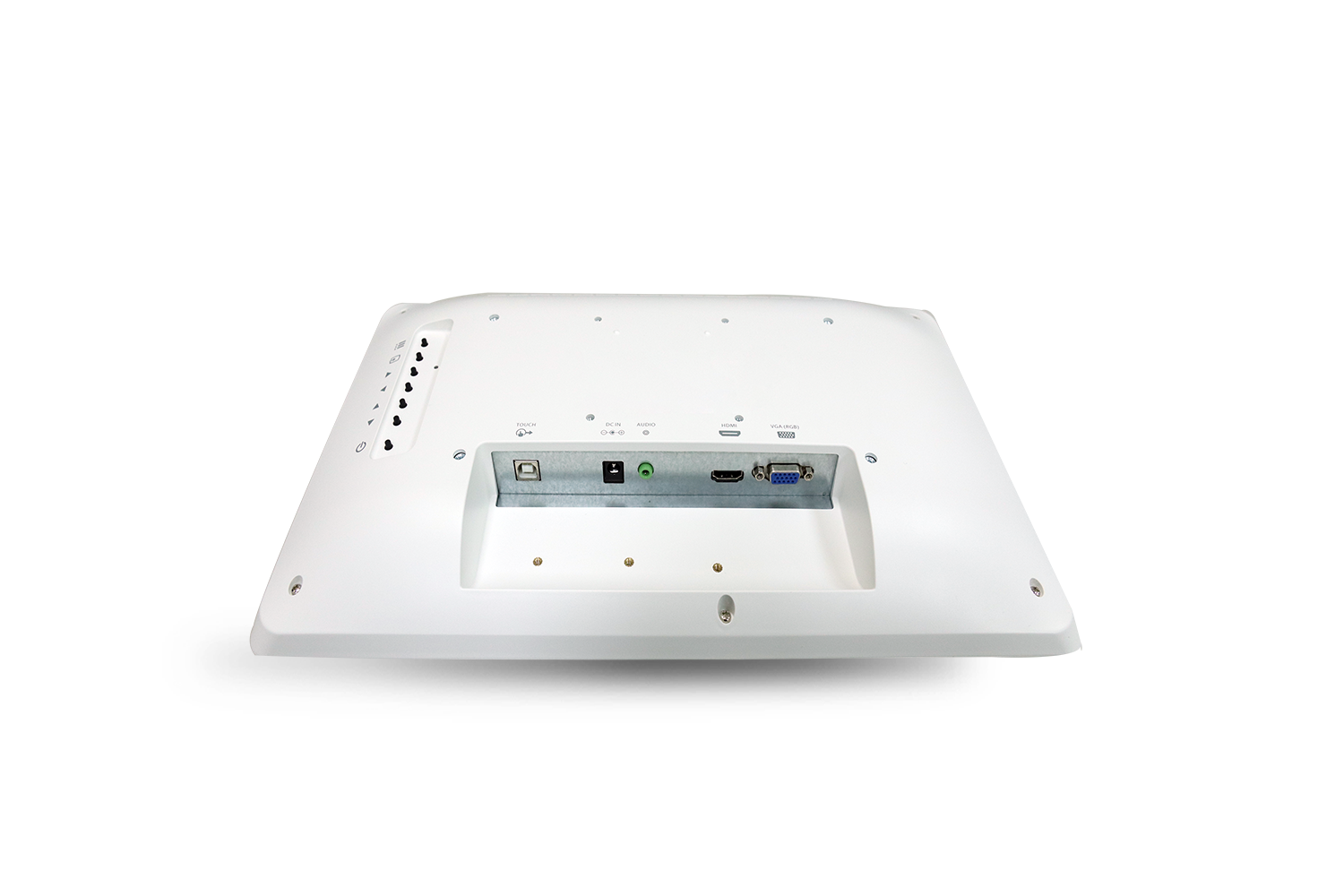

| I/O | |
| Audio | Audio-in x 1 |
| Serial Port | USB x 1 for touch controller |
| Signal | VGA x 1, HDMI x 1 |
| Speaker | 1 W speaker x 2 on back side |
| Mechanical and Environmental | |
| Power Consumption | Full Loading :24.3.7Watts |
| VESA | 75 x 75mm & 100 x 100mm |
| Power Requirement | DC12V / 5A power input |
| Operating Temperature | 5°C ~ 40°C(41°F ~ 104°F) |
| Storage Temperature | -10°C ~ 60°C(14°F ~ 140°F) |
| Storage Humidity | 10%~90%@35°C, non-condensing |
| Dimension | 352.5x 276.1 x 45.0 mm |
| Packing Size | 402.5x 326.1 x 80.0 mm |
| Gross Weight | 4.25kg |
| Net Weight | 2.25kg |
| Certifications |
CE: EN 60601-1-2:2015(V4.0) EN 60601-1:2006 / A1:2013(V3.1) FCC: Part 18 Class B, Part 15 Class B |
