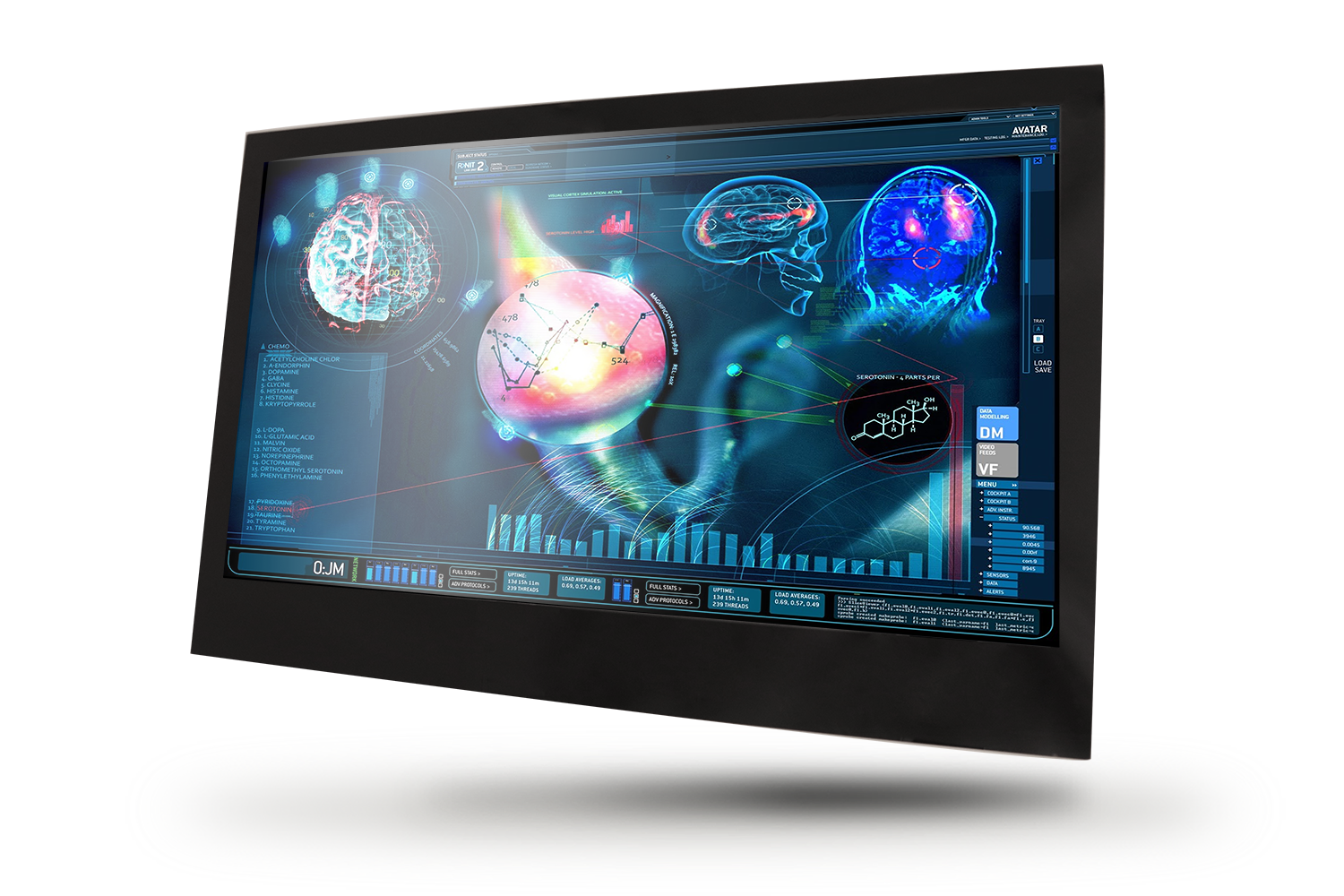

Moniteur ACL médical de 22 po sans ventilateur

Product Feature

21,5 "LCD Panel avec LED Backlight Compact et TerseDesign DVI x 1, HDMI x 1, DPx1 Véritable écran plat avec PCTTouch OSDDesign Invisible Faible consommation d'énergie Audio –2 x intégré



Size 21.5"
Resolution Full HD 1920 x 1080
Max. Colors 16.7M
Brightness (Typ.) 350 nits
Viewing Angle
Contrast Ratio (Typ.) 1000:1
Touch Screen Projective capacitive touch screen (optional)
IP Grade IP 22
OS Support Windows® XP, Windows® 7, Windows® 10
DICOM Support Optional
Audio Audio-in x 1
Serial Port USB x 1 for touch controller
Signal DVIx 1, HDMI x 1, DP x1
Speaker 2W speaker x 2 on back side
Mechanical and Environmental
Power Consumption Full Loading :28.7Watts
Power Requirement DC12V / 5A power input
Operating Temperature 5°C ~ 40°C(41°F ~ 104°F)
Storage Temperature -10°C ~ 60°C(14°F ~ 140°F)
Storage Humidity 10%~90%@35°C, non-condensing
Gross Weight 8.4kg (18.51lb)
Net Weight 5.7kg (12.57lb)
Dimension 527.3 x 348.5 x 55.1 mm
Package Dimension
(W x D x H)
570 x 478 x 260 mm
Certifications CE: EN 60601-1-2:2015(V4.0) ,
EN 60601-1:2006/ A1:2013/A12:2014(V3.1)
FCC: Part 18 Class B
