ACCEL-A2702

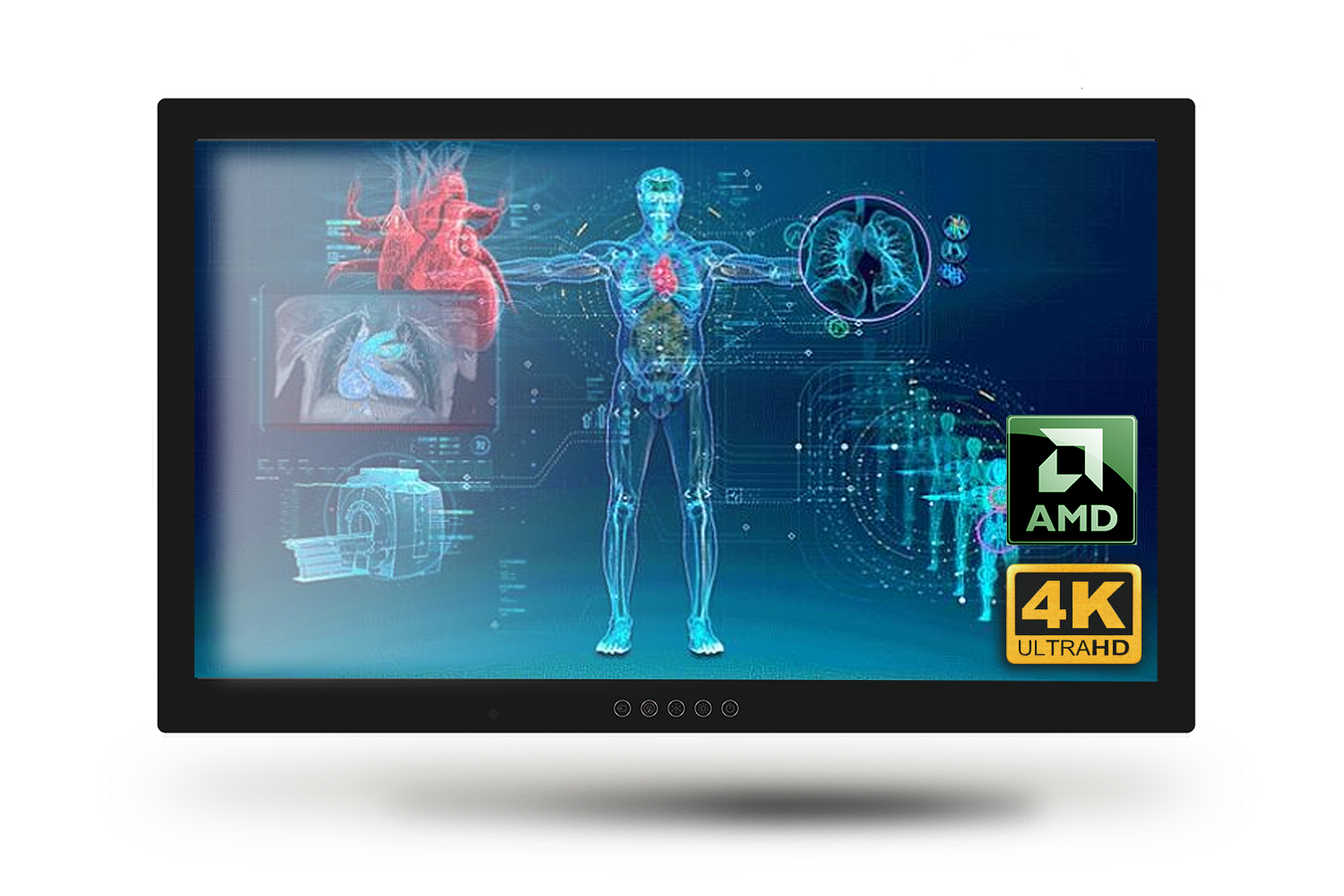

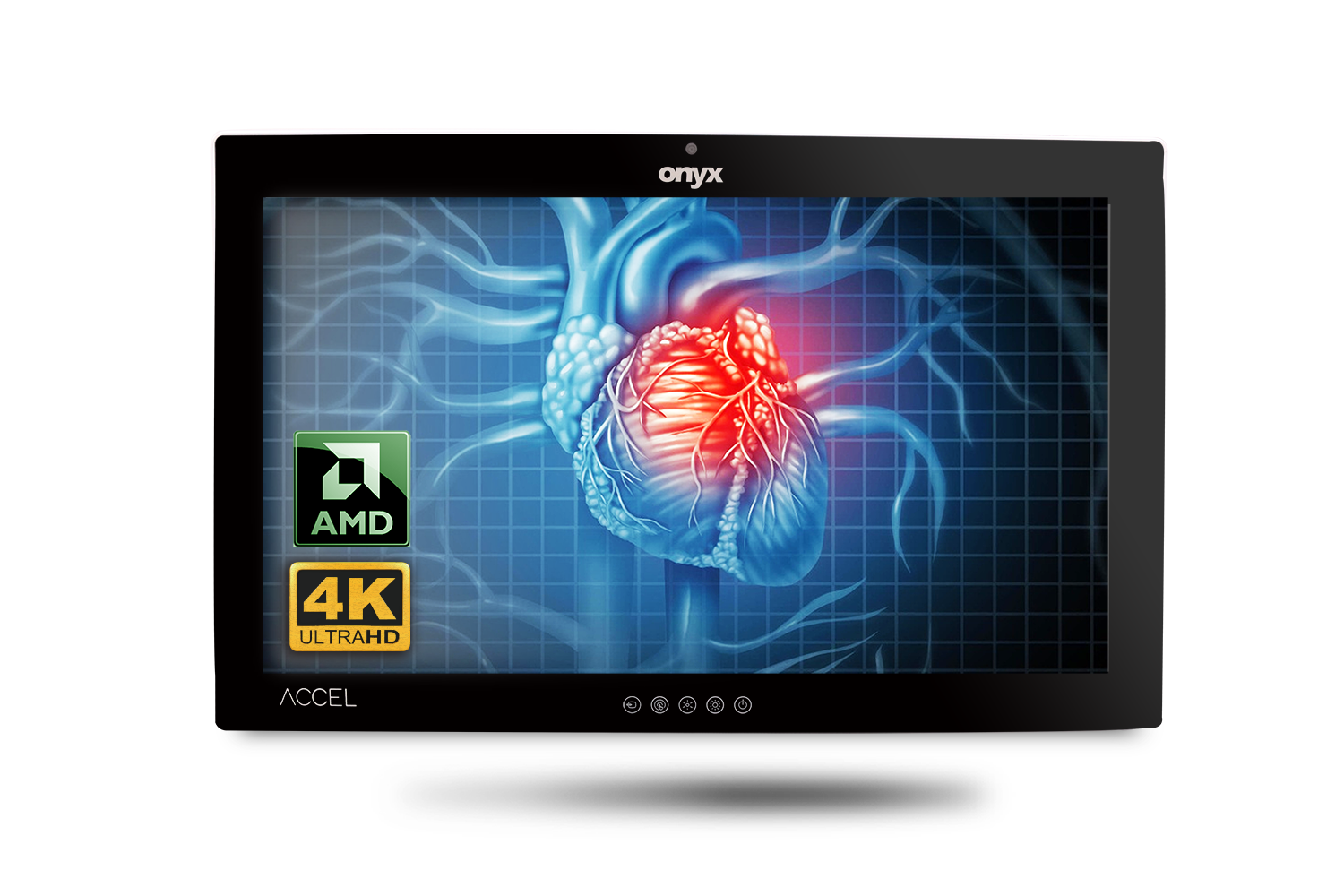

27” 4K UHD AMD Ryzen Embedded V1000 Medial All in One PC

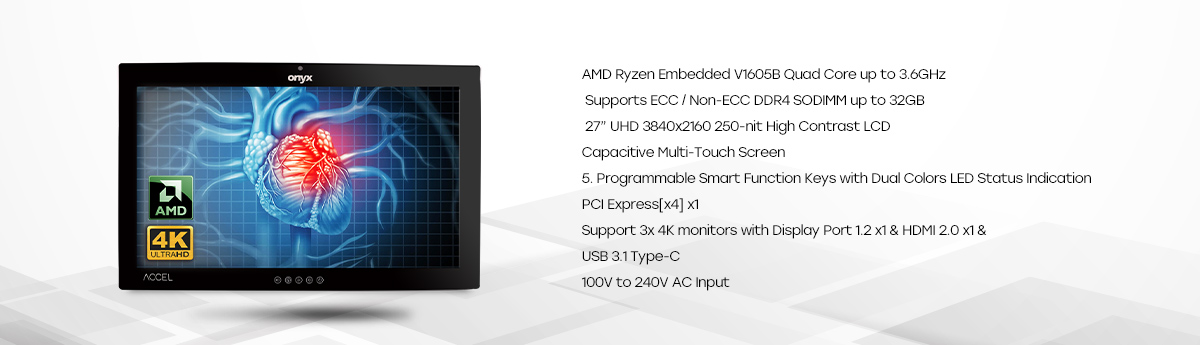

Product Feature

  • AMD Ryzen Embedded V1605B Quad Core up to 3.6GHz
  • Supports ECC / Non-ECC DDR4 SODIMM up to 32GB
  • 27” UHD 3840x2160 250-nit High Contrast LCD
  • Capacitive Multi-Touch Screen
  • 5. Programmable Smart Function Keys with Dual Colors LED Status Indication
  • PCI Express[x4] x1
  • Support 3x 4K monitors with Display Port 1.2 x1 & HDMI 2.0 x1 & USB 3.1 Type-C
  • 100V to 240V AC Input
  • Isolated
  • Touch
  • 4K
  • IP65

Features

1 6

Specifications

Main Specifications
Processor AMD Ryzen Embedded V1605B 3.6GHz Quad Core
System Memory ECC / Non-ECC DDR4 SODIMM up to 32GB
Expansion Interface PCI Express[x4] x1
Storage Disk Drive 2.5” SATA Hard Disk Drive/Solid State Disk Drive x1
Security fTPM 2.0
Wireless Communication 802.11ac/a/b/g/n, Bluetooth V4.1 / V4.2
Speaker 5W x 2
Function Key Power On/Off, LCD Brightness Up/Down,
Touch Screen On/Off, Video Input Selet
Power Requirement 100~240V AC
OS Support Windows® 10, Linux®
Display
Size 27” LCD
Resolution 3840 x 2160
Luminance 250 nits
View Angle 178˚(H)/178˚(V)
Contrast Ratio 1000:1
Back Light Life Time 30,000 Hours
Touch Screen Capacitive Multi-Touch
I/O
USB USB 3.1 Type-C x 1, USB 3.1 Type -A x 2 , USB 2.0 x 2
Serial Port Isdated RS-232 x2(optional)
Ethernet Gigabit LAN x2
Audio Mic, Line out
Video In HDMI x1
Video Out Display Port 1.2 x1, HDMI 2.0 x1, USB 3.1 Type-C x1

Mechanical and Environmental

Power Consumption Full loading : 80 Watts
Operating Temperature 0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Mounting VESA 100mm
Degree of protection IP54 in the front , IPX1 in the back
Dimension 676 x 429 x 53 mm
Package Size 820 x 575 x 230 mm
Gross Weight 14 kg (30.9 lb)
Net Weight 11.3 kg (24.91 lb)
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
