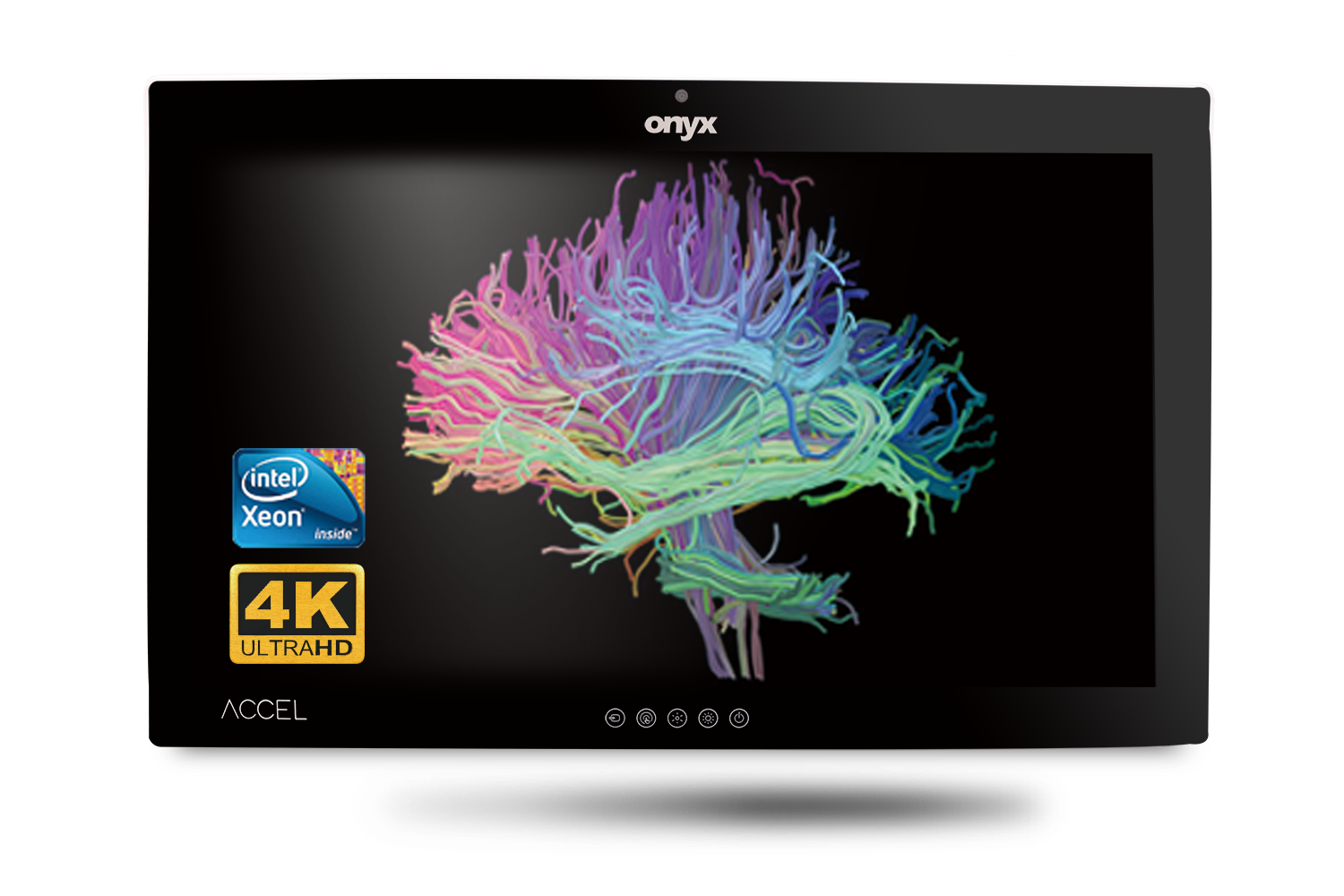

ACCEL-A3201

32” 4K UHD 11th Generation Xeon / Core i7 Medial All in One PC for AI Inference

Product Feature

  • Intel® Core™ i7-11850HE (8C/16T, 2.1 GHz, 35W)
  • Intel® Xeon® W-11865MRE (8C/16T, 2.1 GHz, 35W)
  • Supports ECC / Non-ECC DDR4 SODIMM up to 32GB
  • 32” UHD 3840x2160 350-nit High Contrast LCD
  • Capacitive Multi-Touch Screen
  • 5 Programmable Smart Function Keys with Dual Colors LED Status Indication
  • LAN/USB(optional)/COM(optional) Medical Isolation
  • Dual Slots PCI Express[x16] x1 for High End Graphics Card /GPU
  • Accelerator Card up to 300W
  • PCI Express[x4] x1, PCI Express[x1]x1
  • Trusted Platform Module 2.0
  • Remote Management: Intel Active Management Technology
  • 100V to 240V AC Input
  • AI
  • Isolated
  • Touch
  • 4K
  • IP65

Features

1 6

Specifications

Main Specifications
Processor Intel® Core™ i7-11850HE (8C/16T, 2.1 GHz, 35W)
Intel® Xeon® W-11865MRE (8C/16T, 2.1 GHz, 35W)
Chipset CM236 (for Xeon) / QM170(for Core i7)
System Memory ECC (for Xeon) / Non-ECC (for Core i7) DDR4 SODIMM up to 32GB
Expansion PCI Express[x16] x1, PCI Express[x4] x1, PCI Express[x1] x1)
Storage Disk Drive 2.5” SATA Hard Disk Drive/Solid State Disk Drive x2
Security Trusted Platform Module 2.0
Wireless Communication 802.11ac , Bluetooth 5.1
Speaker 5W x 2
Function Key Power On/Off, LCD,Brightness Up/Down, Touch
Screen On/Off , Video Input Select
Power Requirement 100~240V AC
OS Support Windows® 7, Windows® 10, Linux®
Display
Size 32” LCD
Resolution 3840 x 2160
Luminance 350 nits
View Angle 178˚(H)/178˚(V)
Contrast Ratio 1000:1
Back Light Life Time 30,000 Hours
Touch Screen Capacitive Multi-Touch

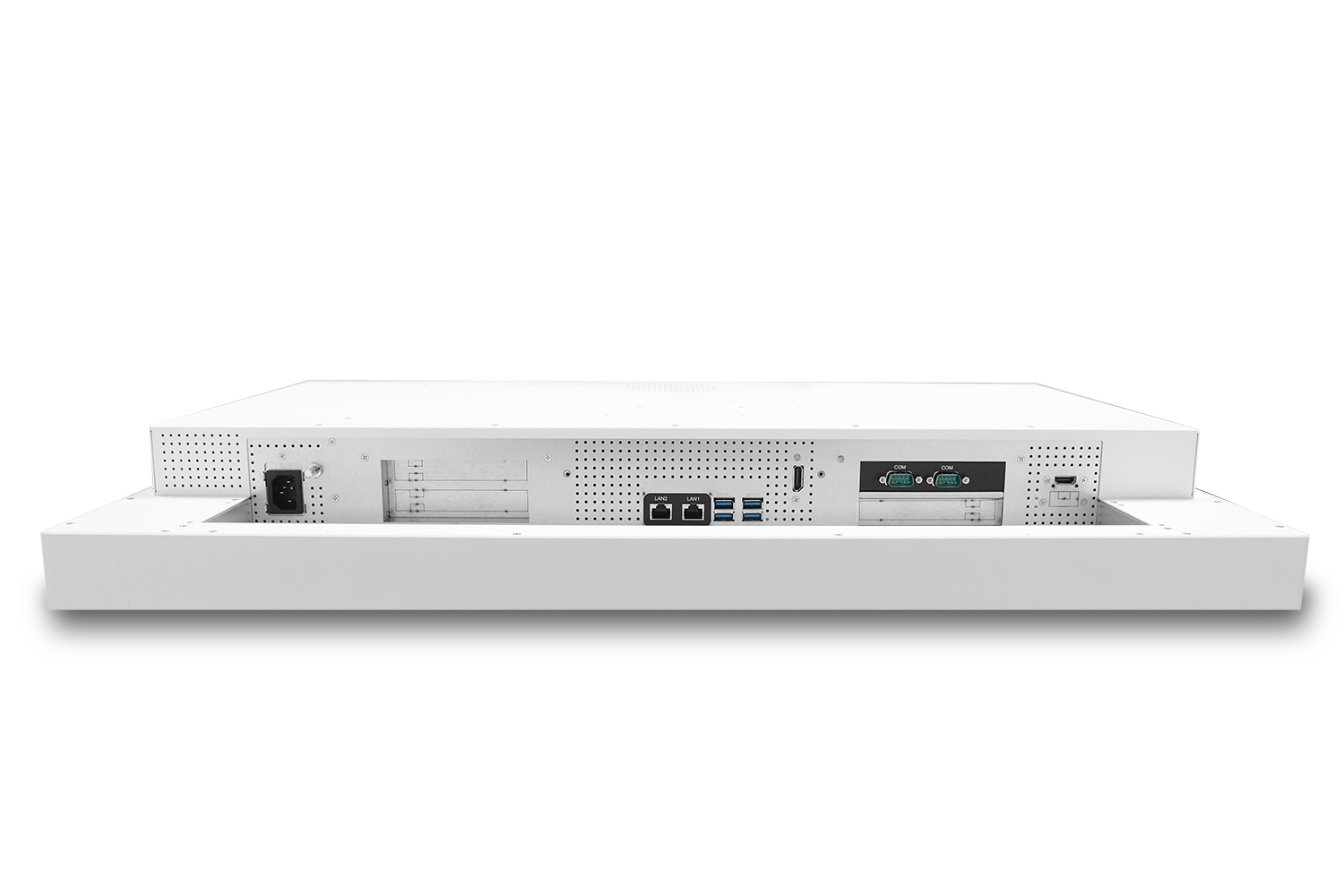

I/O
USB USB 3.0 x 4
Serial Port Isolated RS-232 x2(optional)
Ethernet Isolated Gigabit LAN x2
Audio Mic(optional), Line out(optional)
Video Out Display Port 1.4 x1
Video In HDMI x1

Mechanical and Environmental

Power Consumption Full loading : 90 Watts
Operating Temperature 0°C ~35°C( 32°F ~95°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Mounting VESA 100mm
Degree of protection IP54 in the front, IPX1 in the back
Dimension 778 x 478 x 102mm
Package Size 1006 x 661 x 258 mm
Gross Weight 28 kg (61.7 lb)
Net Weight 18.5 kg (40.8 lb)
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
