ACCEL-VM100

HDMI/DP over IP Transceiver with USB Extension for Digital OR

Product Feature

  • Can be configured to function as either a Transmitter or a Receiver
  • IP switchable with minimum latency requires optional control center or control software
  • Ultra-light compression, lossless for most content
  • Extension up to 30km (maximum distance depends on the SFP+ module and type of fiber used)
  • Supports the use of an external control center or control software to provide expanded functionality

Features

1 6

Specifications

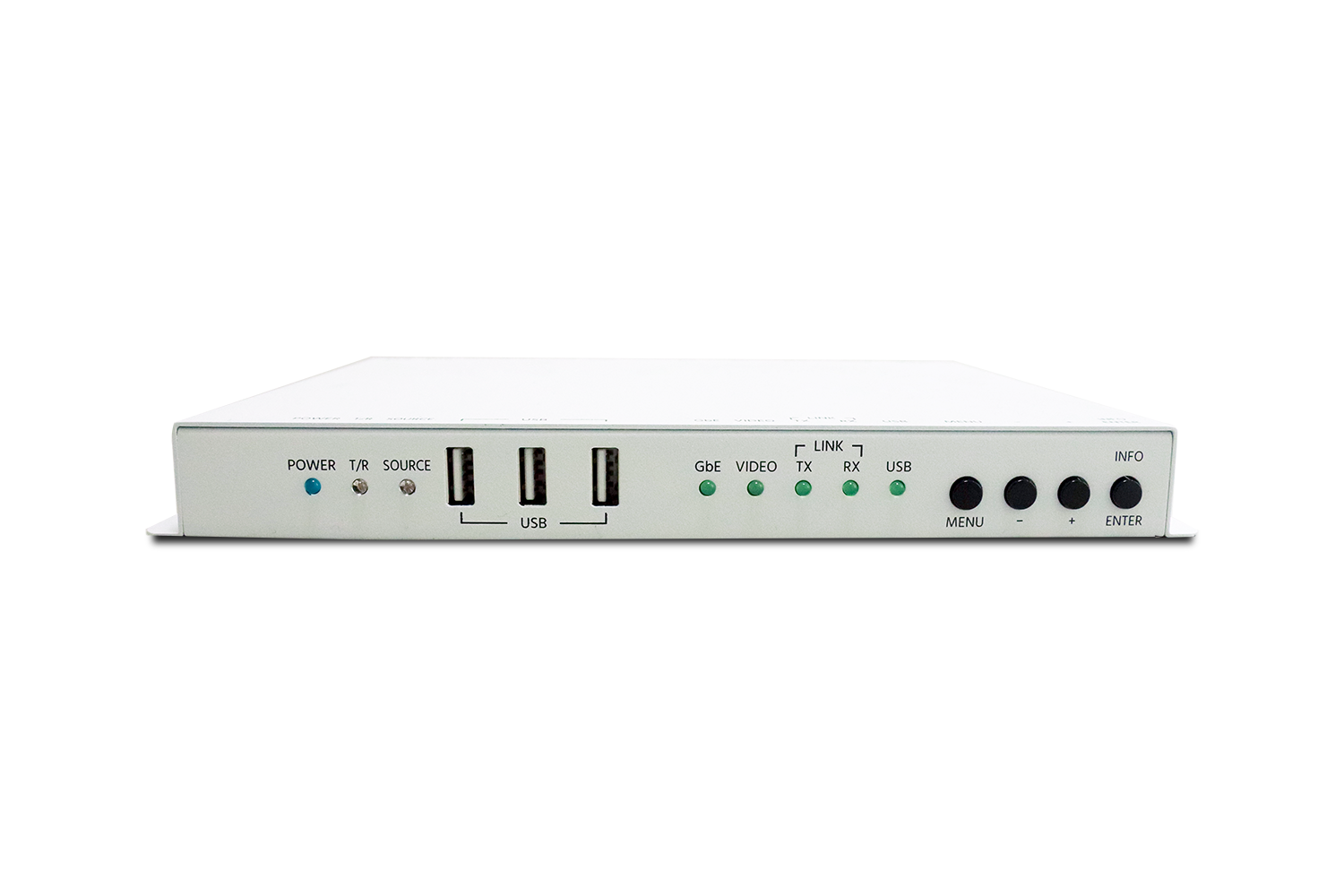

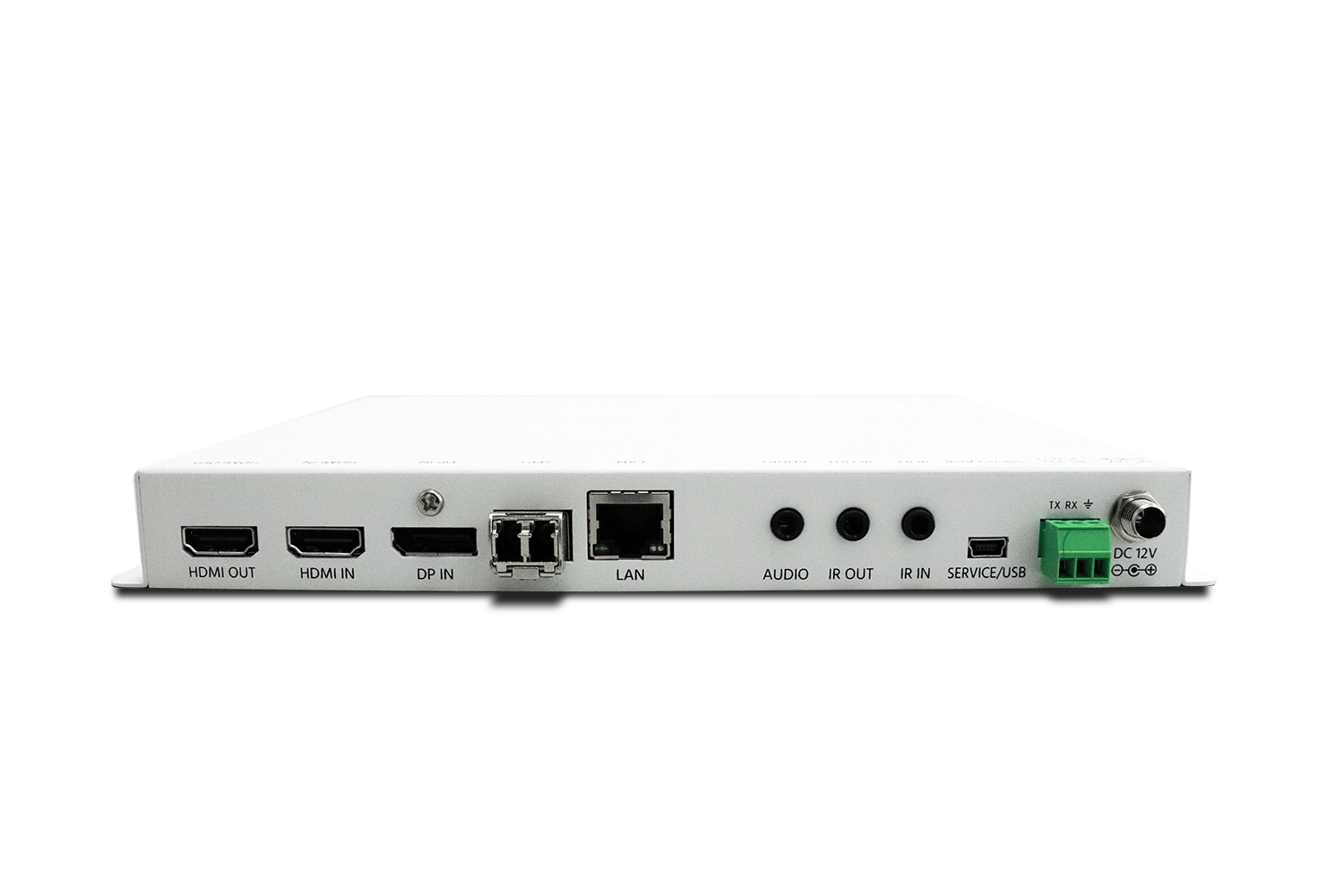

Interfaces
Input Port 1 x HDMI (Type-A), 1 x DisplayPort
Output Port 1 x HDMI (Type-A)
Bi-directional Port 1 x 10GbE LAN (SFP+)
Pass-through Port 1 x Unbalanced Stereo (3.5mm)
1 x IR Extender (3.5mm)
1 x IR Blaster (3.5mm)
1 x RS-232 (3-pin Terminal Block)
1 x Ethernet (RJ-45)
3 x USB (Type-A)
Service Port 1 x USB (Mini-B)
Video
HDMI Compliance HDMI 2.0 (DVI 1.0)
HDCP Compliance 2.2
Input Signal Types HDMI 2.0 / 4K@60, HDR10 / DisplayPort 1.4 HBR2
Resolutions
Maximum Input HDMI - 4096×2160p@60, 2560×1600p@60RB
DisplayPort - 4096×2160p@60, 2560×1600p@60RB
Streaming -  4096×2160p@60, 2560×1600p@60RB
Maximum Output HDMI - 4096×2160p@60, 2560×1600p@60RB
Streaming -  4096×2160p@60, 2560×1600p@60RB
Audio
Digital Formats HDMI - 8CH LPCM, Bitstream, HD Bitstream
DisplayPort- 8CH LPCM, Bitstream, HD Bitstream
Analog Formats Unbalanced 2 Channel
Line Level Frequency Response: < ±0.5dB (20Hz to 20kHz)
THD: < 0.02% (20Hz to 20kHz)
S/N Ratio: > 80dB (1kHz with 0dBFS)
Crosstalk: < −80dB (10kHz, Vin=0dBFS)

Power

Power Supply 12V/3A (Locking)
Power Consumption HDMI 2.0 / 4K@60, HDR10 / DisplayPort 1.4 HBR2
Enclosure
Chassis Material Metal (Steel)
Chassis Color White
Dimensions (W×H×D) 231.5 × 25 × 158mm
Weight 916g
Packing Size 298 x 258 x 68 mm
Certification

CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013/A12:2014 (V3.1)
FCC: Part 18 Class A
