ACCEL-VS100

HDMI/VGA Live Video Streamer with Recording for Digital OR

Product Feature

  • Audio embedding and mixing support with the analog stereo audio input
  • Integrated support for live steaming to Facebook, Youtube or Twitch Channel
  • On screen countdown timer and test overlay are supported
  • Generate 4 simultaneous streams from the same video source for easy system integration at multiple bandwidth targets

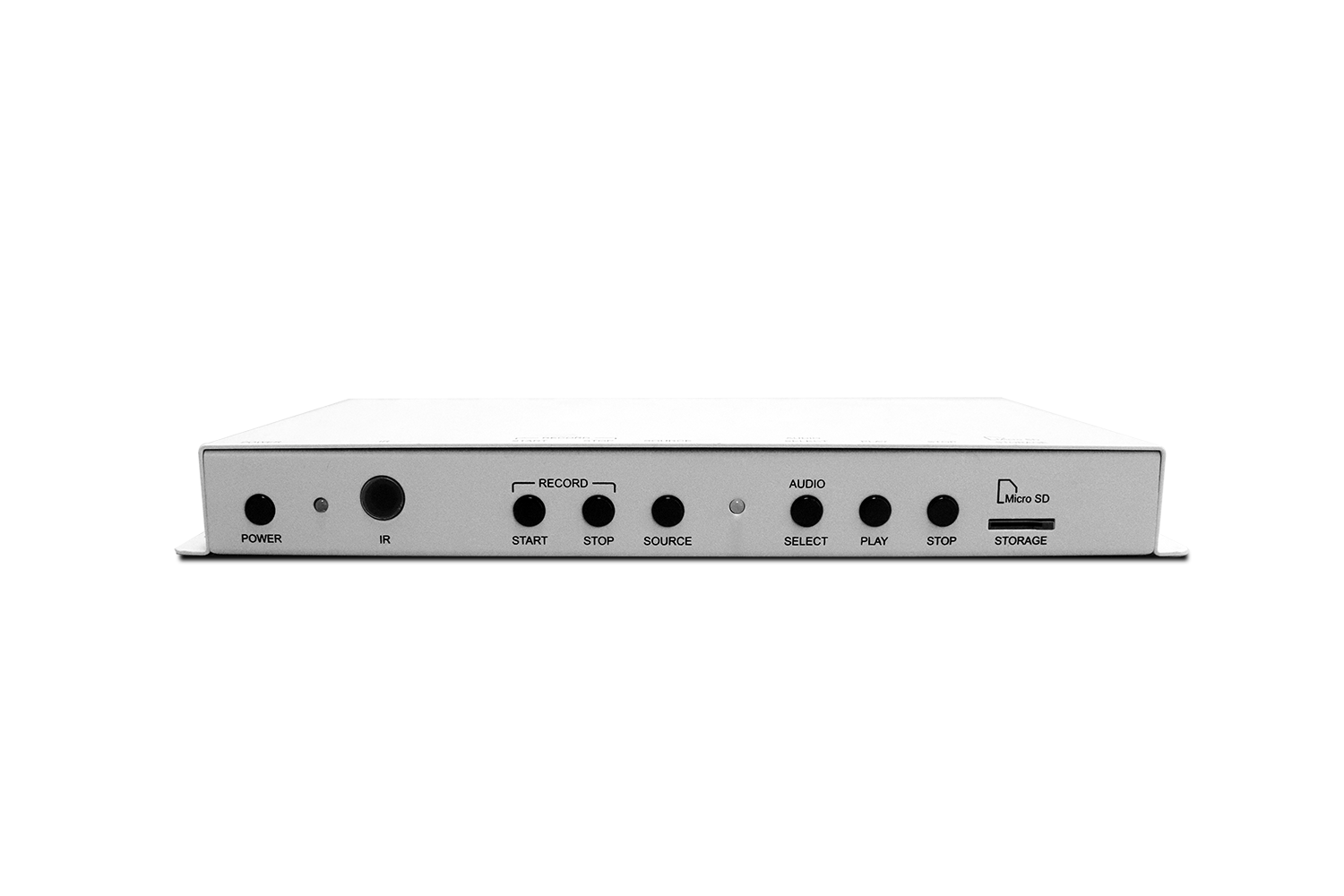

  • Control via front panel buttons WebGUI, Telnet, RS232 and IR

Features

1 6

Specifications

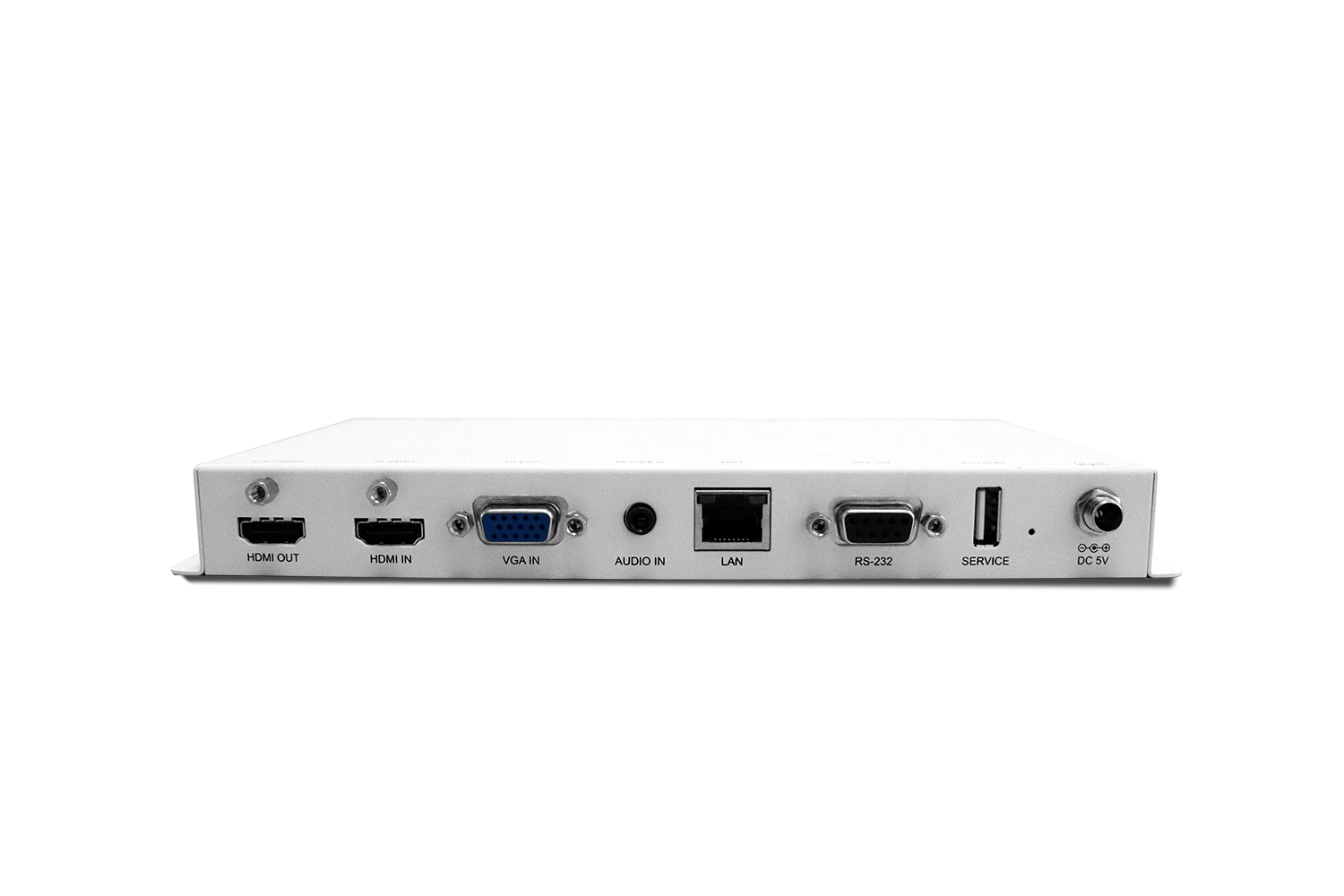

Interfaces
Input Port 1 x HDMI (Type-A) , 1 x VGA (HD-15) , 1 x Unbalanced Stereo (3.5mm)
Output Port 1 x HDMI (Type-A)
Pass-through Port 1 x LAN (RJ-45)
1 x RS-232 (DE-9)
1 x MicroSD slot
Service Port 1 x USB (Type-A)
Video
HDMI Compliance 2.0
HDCP Compliance 2.2
Input Signal Types 4K@60 8bit YUV 4:4:4
Output Signal Type 4K@60 8bit YUV 4:4:4
Resolutions
Maximum Input HDMI - 4096×2160p@60, 2560×1600p@60RB
VGA  - 1920×1200p@60RB
Maximum Output HDMI - 4096×2160p@60, 2560×1600p@60RB
H.264 Stream -  1080p@60
Audio
HDMI Unbalanced Stereo, 2CH LPCM

Power

Power Supply 5V/2.6A
Power Consumption 9.57W (Full load)
Enclosure
Chassis Material Metal (Steel)
Chassis Color White
Dimensions (W×H×D) 231.5 × 25 ×108 mm
Weight 668g
Packing Size 280 x 180 x 71 mm
Certification

CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013/A12:2014 (V3.1)
FCC: Part 18 Class A

Video

Downloadable Contents

Solution Your Best Source for Smart Healthcare Solution

Digital OR
