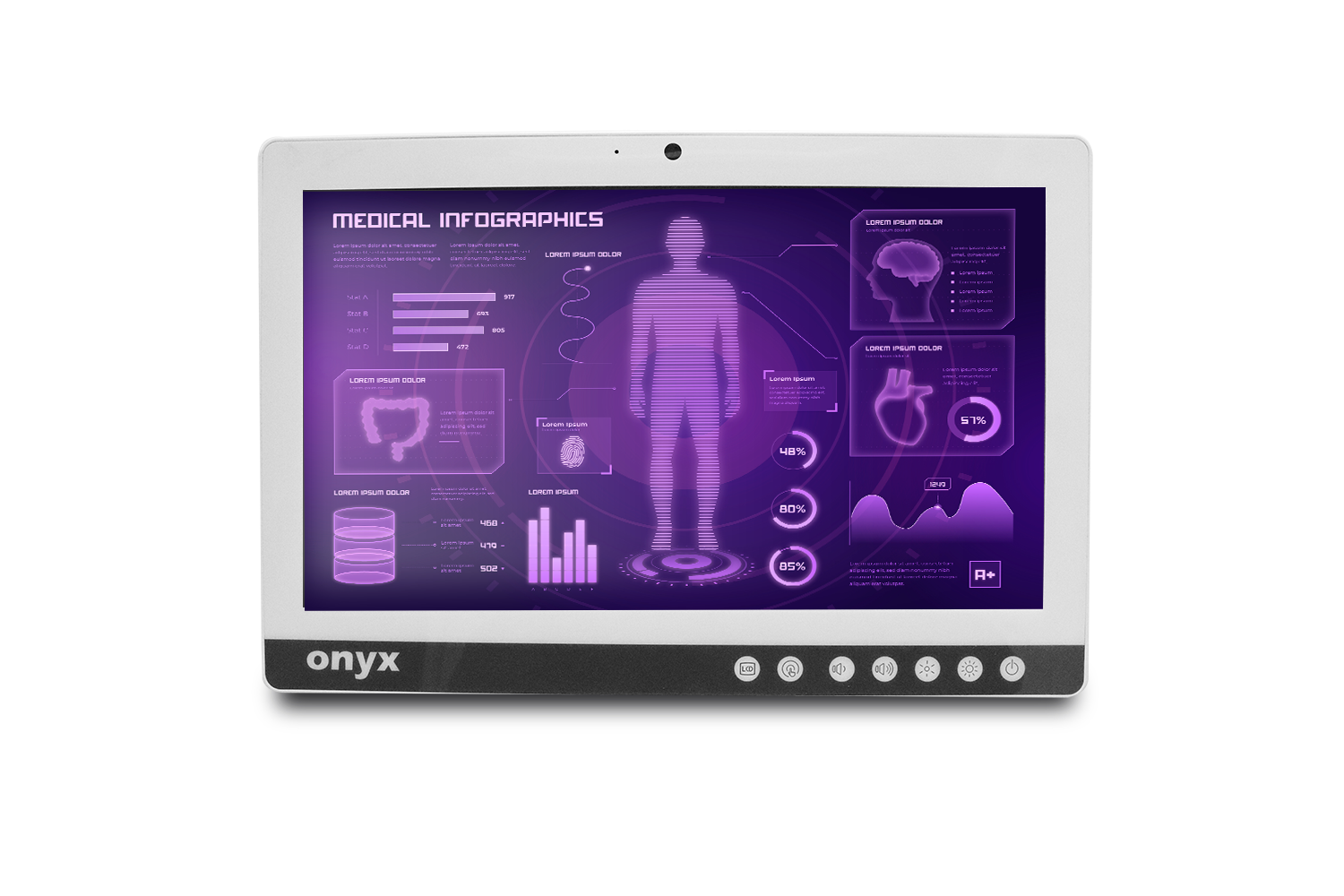

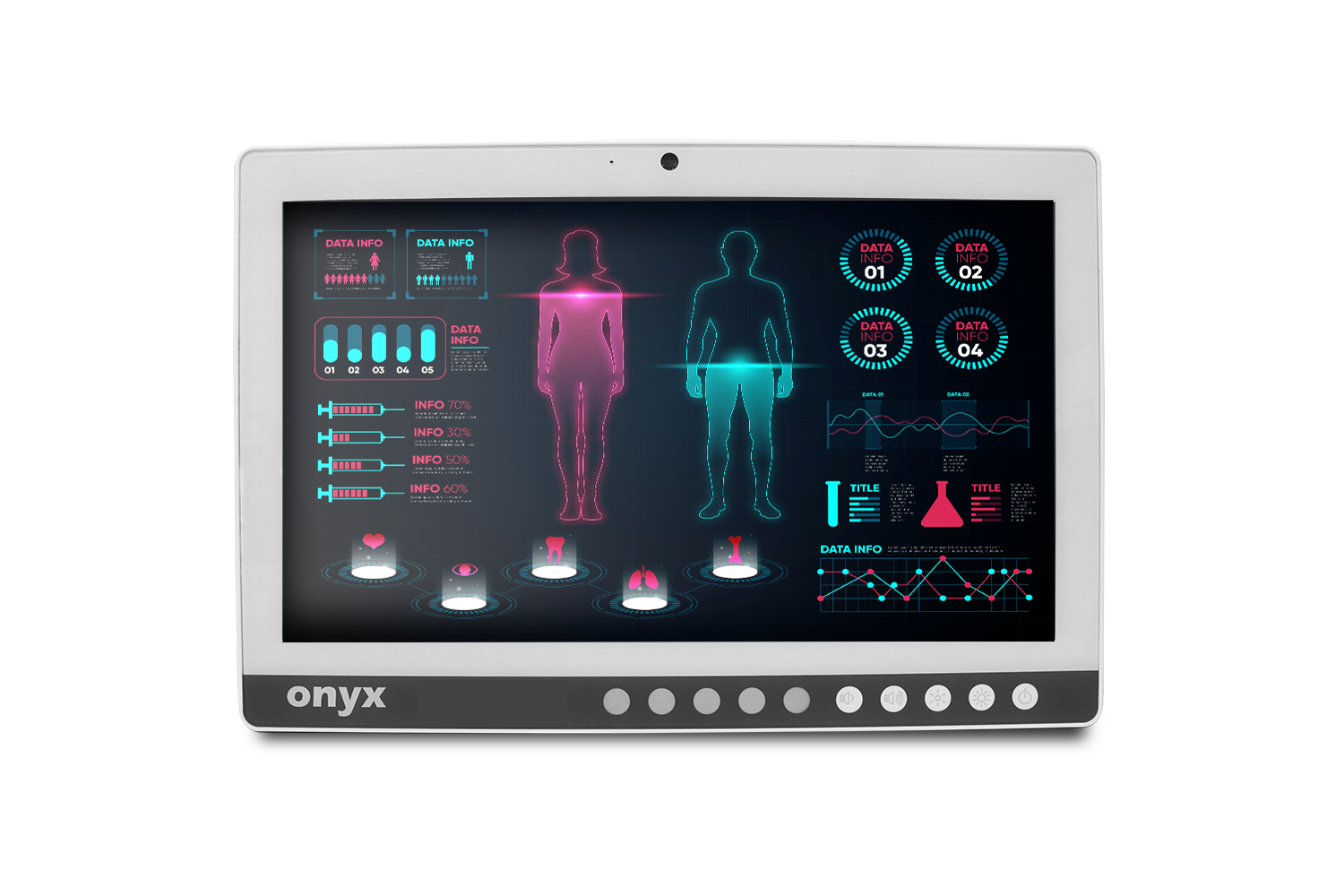

Venus-154 Plus
15.6” Intel Medical AI Panel PC with Dual Battery
Product Feature
- Intel® Meteor Lake Core™ Ultra 125U
- Highest level of medical safety protection , EMC4.1/ Safety 3.2
- Cleanability with hospital solvents
- Support remote monitor/control/update (ORION compatible)
Features
Specifications
| Main Specifications | |
| Processor | Intel® Meteor Lake Core™ Ultra 125U |
| System Memory | DDR5 up to 32GB |
| OS Support |
Microsoft® Windows 11 Ubuntu 24.04 LTS IGEL (thin client solution) |
| Graphics | Intel® HD Graphics |
| Storage | M.2 SSD up to 1TB (optional) |
| Wireless Communication | WiFi6E + BT 5.3 (optional) |
| Touch | Project Capacitive Touch / Resistive Touch |
| Speaker | 3W x2 |
| Security | TPM 2.0 |
| Display | |
| Display Size | 15.6” |
| Max. Resolution | 1920 x 1080 |
| Luminance(cd/m2)(TYP) | 300 |
| Max. Colors | 16.2M |
| Contrast Ratio | 1000:1 |
| View angle | 178(H) / 178(V) |

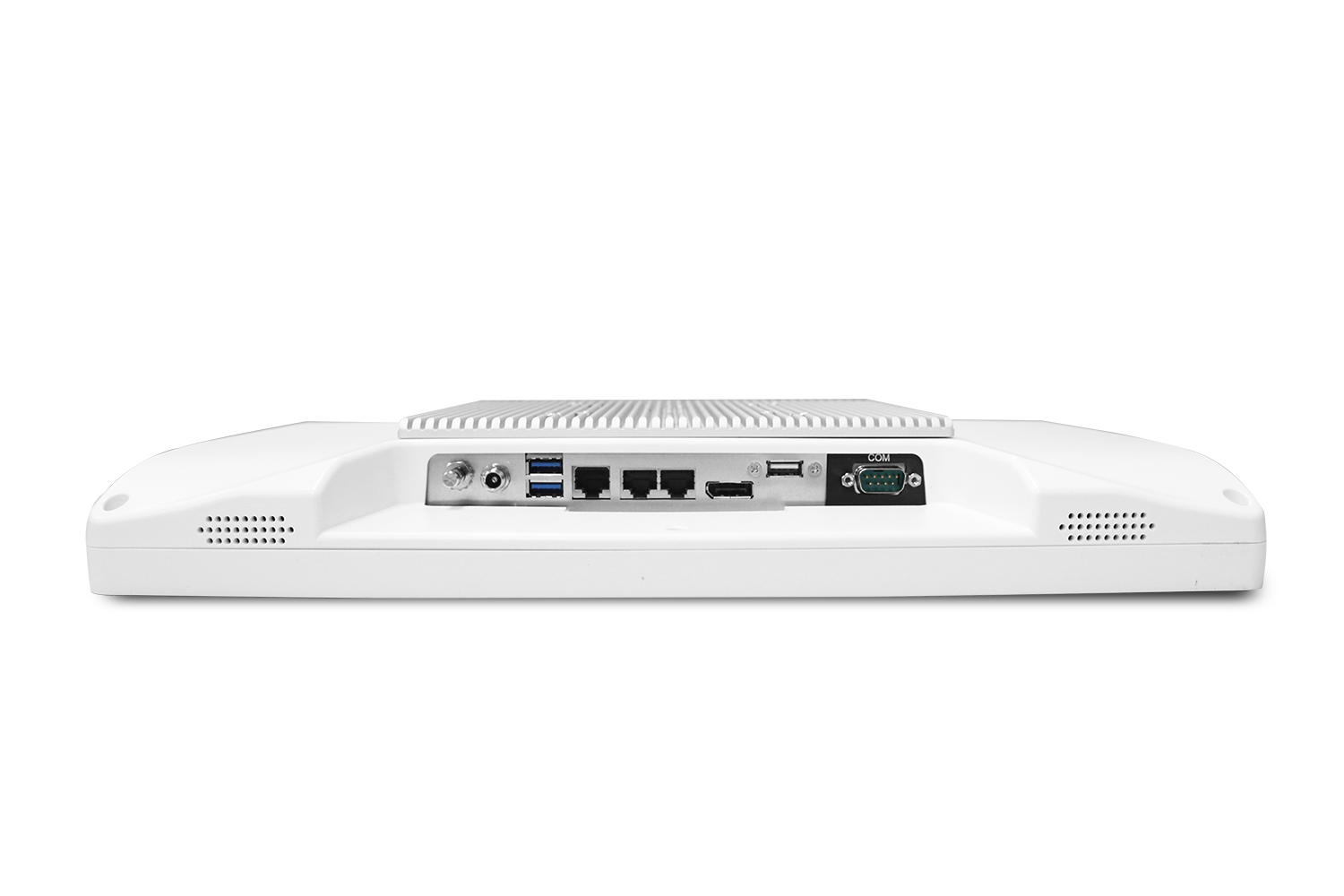

| I/O | |
| USB | USB 3.2 x2, USB 2.0 x1 |
| Video Out | DP x1 |
| COM | Isolated COM port x1(optional) |
| Ethernet | Gigabit LAN x 3 |
| DC-in | 12V DC-in x1 |
| Mechanical and Environmental | |

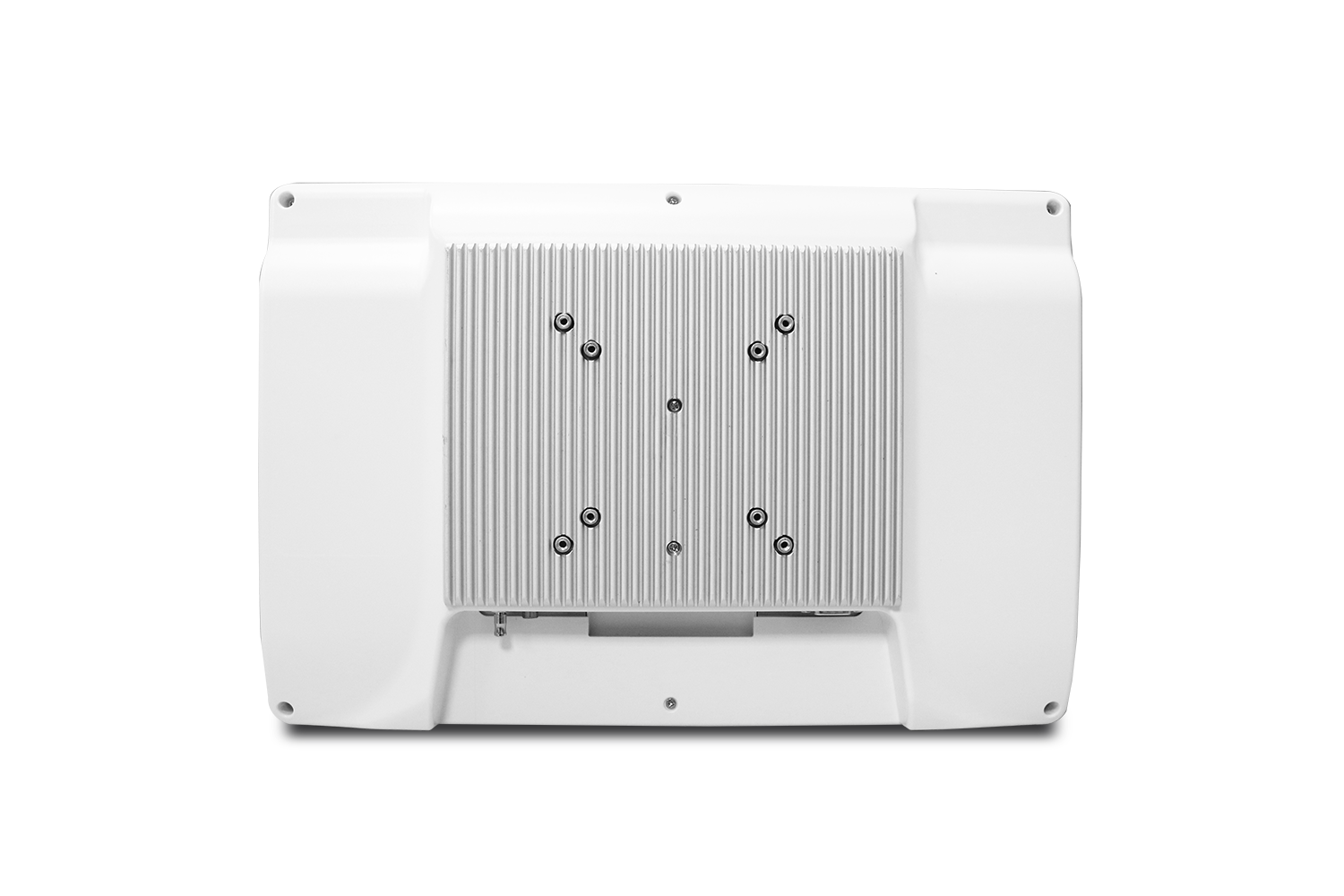

| VESA | 75/100 mm VESA mount |
| Operating Temperature | 0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Storage Humidity | 10%~95%@40°C, non-condensing |
| Degree of Protection | Front Panel: IP65 ; Rear: IPX1 |
| Dimension | 392(L) x 52(W) x 265(H) mm |
| Net Weight | 2.7kg |
| Gross Weight | 4.7 Kg |
|
Package Dimension (W x D x H) |
520(L) x 190(W) x 400(H) mm |
| Certifications |
CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) TELEC :JAPAN TELEC |
