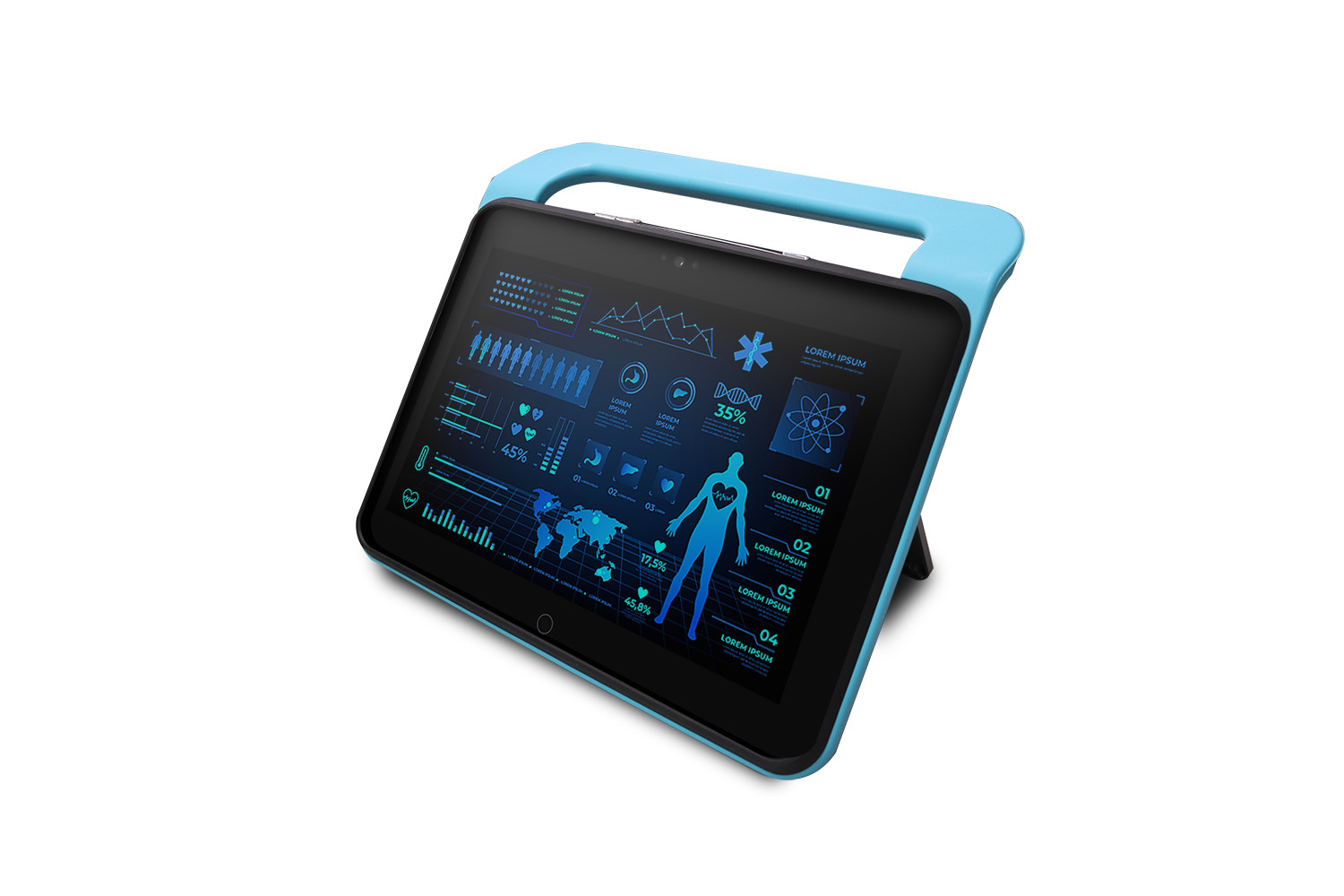

MD102N
10.1” Rugged Medical Tablet
Product Feature
- Intel® Alder Lake processor
- Slim & lightweight design for clinical mobility
- Long battery life for intensive care services
- Standard USB Type-A for easy connection to medical devices
- IP54 certified & 1.5 Meter drop resistant
- ORION client compatible
- VESA mounting via adapter
- EN60601-1 Certified
- Ergonomic design adapted for portable and cart use
- Windows 10/Windows 11 IOT
Features
Specifications
| Main Specifications | |
| Processor | Intel® Alder Lake N200 1.80 GHz |
| System Memory | DDR5 8GB |
| OS Support | Microsoft® Windows 10 IOT LTSB /Win 11 IOT/Linux/Ubuntu |
| Storage | NVMe 256GB |
| Wireless Communication | 802.11 ax/a/b/g/n +BT 5.2 |
| Camera | 2 MP (Front) / (8MP) MP (Rear) |
| Touchscreen | Projected Capacitive Touchscreen ,w/Gorilla Glass 3 |
| Accelerometer Sensor | LSM6DSO |
| Ambient Light Sensor | LSM6DSO |
| Power Button | x1 |
| Volume Keys | x2 |
| Speakers | 2W x2 SPL 98±3dB |
| Alarm Light | x1 (Optional) |
| Battery Light | x1 |
| Power Requirement | DC 15 V, ( 60W) |
| Display | |
| Display Size | 10.1” 16:10 Wide Screen LED Panel |
| Resolution | 1920 x 1200 |
| Max. Colors | 16.7M |
| Contrast Ratio | 800:1 |
| Luminance (cd/m2) | 380 nits |
| I/O | |
| USB | USB 3.0 (Type-A) x 1USB 3.0 (Type-C) x 1 (Host + Display) |
| Audio Out / Mic In | 3.5 mm Combo Audio Jack x1 |
| Video Out | Via USB 3.0 Type-C |
| DC-In | x1 |
| Battery Pack | |
| Battery Type | Li-ion |
| Battery Capacity | 9060mAh (65.2 Wh) |
| Battery Run Time | Approx. 8 hrs |
| Mechanical and Environmental | |
| VESA | VESA 75 via Rear cover Bracket (With/Without)2 Design |
| Degree of Protection | IP54 |
| Operating Temperature | 0° C ~ 40° C (32° F ~104° F) |
| Storage Temperature | -20°C ~ 60°C (-4°F ~ 140°F) |
| Storage Humidity | 10%~95%@35°C, non-condensing |
| Dimensions | 272x194x26mm |
| Packing Size | TBD |
| Gross Weight | TBD |
| Net Weight | Approx. 1.2 kg |
| Certifications |
CE: EN 60601-1-2:2020(V4.1), EN 60601- 1:2006/A1:2020(V3.2) EN 60601- 1:2006/ A1:2020(V3.2) FCC: Part 18 Class B, Part 15 C/E UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) |
