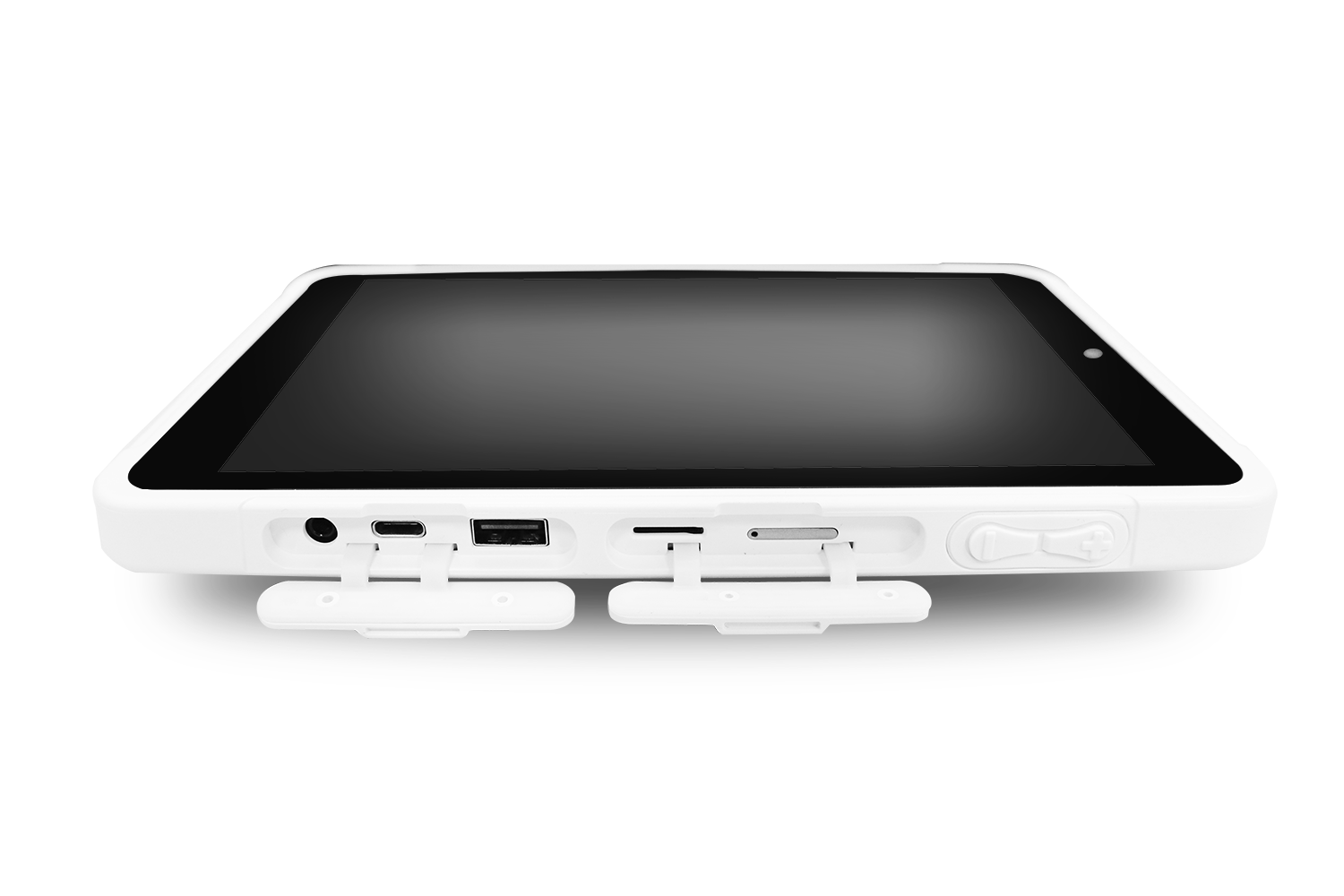

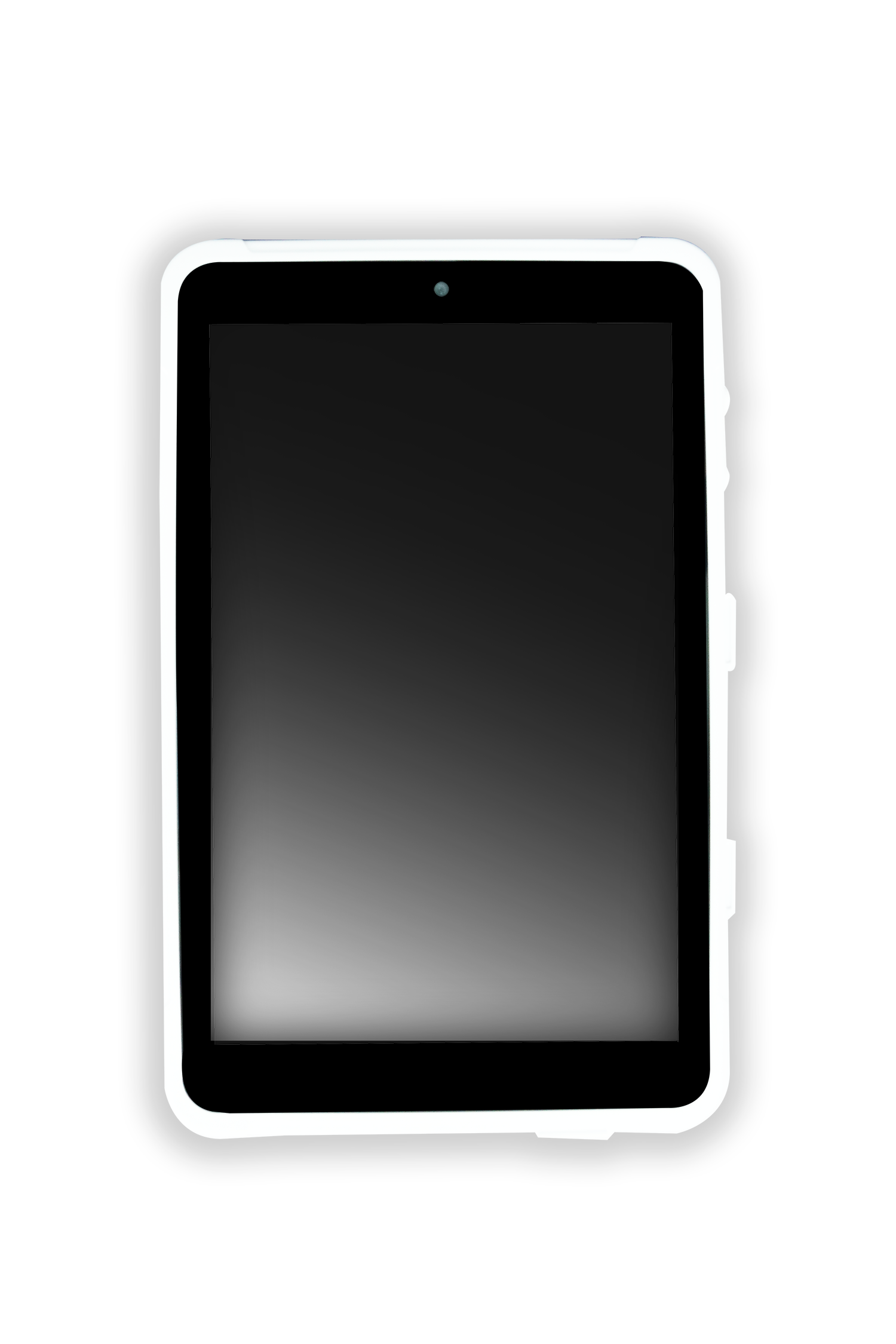

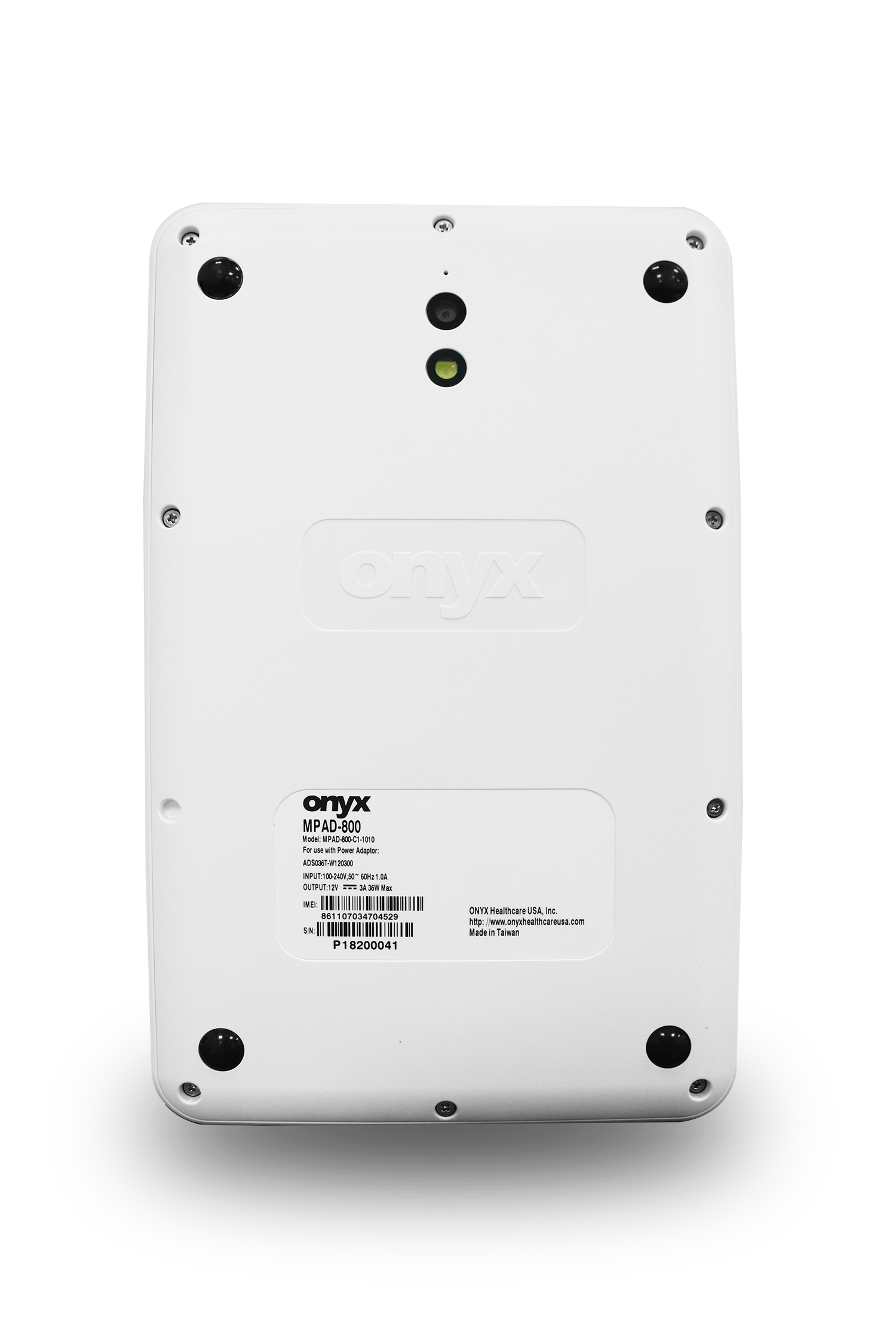

MPAD-800 A1

8” Medical Tablet

Product Feature

  • ARM® Cortex® Quad-Core up to 1.8 GHz
  • Android 10
  • Water/Drop Proof & Fanless Operation
  • Build-in Type A USB Port and Type C USB Port
  • Built-in Cellular Communication
  • Shift Ready Battery Life
  • Medical Grade Device Safety
  • Android 6.0

Features

Specifications

Main Specifications
Processor ARM® Cortex® Quad-Core up to 1.8 GHz
System Memory 2GB SDRAM
OS Support Android 10
LCD Touch Display 8” (1280 x 800) TFT LCD with 2-point P-cap (Latex Glove Operable)
Communication WiFi a/b/g/n/ac + Bluetooth 4.0
I/O Port USB Type C x 1 or Micro USB x1 ,USB Type A x 1,
Volume Up/Down ,
3.5mm Stereo Headphone Jack x1,
DC-In Jack x 1 or USB Type C Charging x1 or Pogo pin
Charging ,
Built-In Speaker & Microphone,
nanoSIM Card Slot,Micro SD Card Slot
Storage 16 GB eMMC Flash
Camera Front 8MP , Rear 8MP with Flash LED
Sensor Built-in Light Sensor, Built-in G-Sensor ,
Built-in Vibration Motor
Mechanical and Environmental
Color White
Dimension(W x H x D) 136.6 x 219 x 21 mm
Packing Size 280 x 250 x 80 mm
Gross Weight 1.8kg (3.96 lb)
Net Weight 0.67 Kg (1.48lb)
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 60°C
Operating Humidity 10 ~ 75%
Water / Drop Proof IP54 / 76cm
Medical Certification CE/FCC Class B , UL60950 , UL/EN60601-1
Power Supply
AC/DC Adapter AC Power Input: 100 ~ 240V , 50~60Hz,36W , Output:12V , 3A
Battery Lithium-Polymer High Capacity Battery (8 Hours)
