MATE-1903

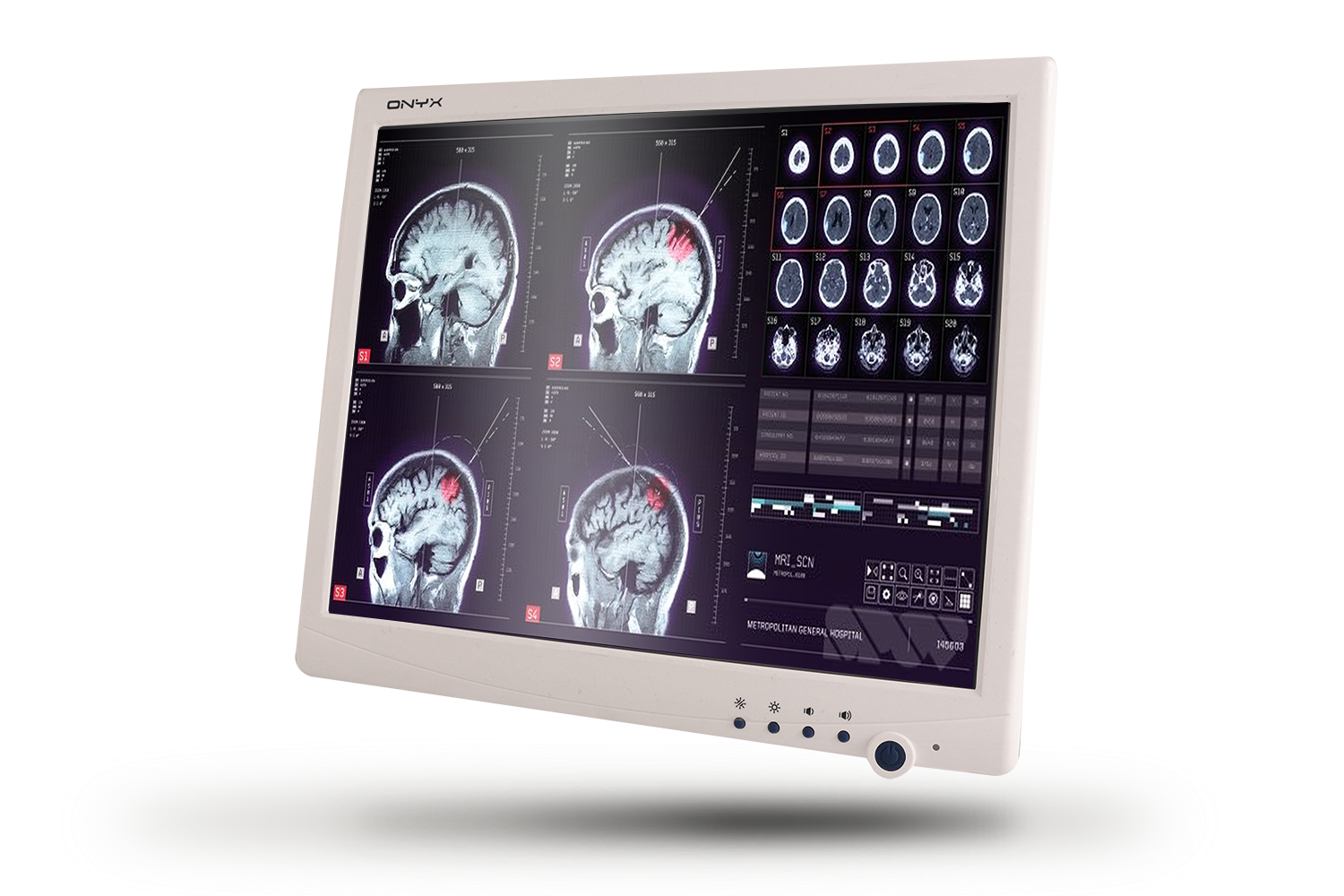

19” Fanless 6th Generation Core i7 Powerful Medical All in One PC

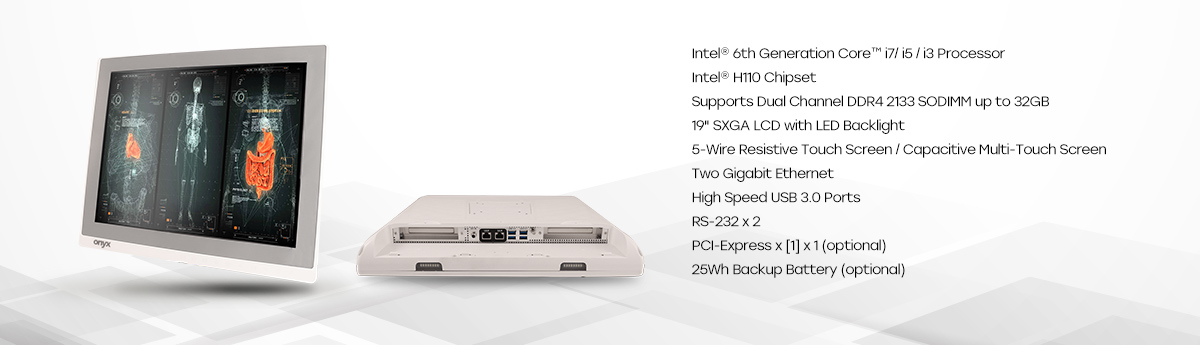

Product Feature

  • Intel® 6th Generation Core™ i7/ i5 / i3 Processor
  • Intel® H110 Chipset
  • Supports Dual Channel DDR4 2133 SODIMM up to 32GB
  • 19" SXGA LCD with LED Backlight
  • 5-Wire Resistive Touch Screen / Capacitive Multi-Touch Screen
  • Two Gigabit Ethernet
  • High Speed USB 3.0 Ports
  • RS-232 x 2
  • PCI-Express x [1] x 1 (optional)
  • 25Wh Backup Battery (optional)
  • IP54
  • TAG RFID
  • EN/UL 60601-1
  • Fan-less
  • SIAA

Features

1 6

Specifications

Main Specifications
Processor Intel® 6th Generation Core i7 / i5 / i3 Processor
System Memory Supports Dual Channel DDR4 2133 SODIMM up to 32GB
Chipset Intel® H110
OS Support Windows® 7, Windows® 10, Linux®
Storage Disk Drive 2.5" SATA Hard Disk Drive/SSD x 1
Slim DVD-RW Drive x 1 (optional)
Security Trusted Platform Module, RFID Reader (optional)
Smart Card Reader x 1 (optional)
Wireless Communication 802.11ac/a/b/g/n(optional),
Bluetooth 3.0HS & 4.0 (optional)
Speaker 5W x 2
Function Key Speaker Volume Up/Down, LCD Brightness Up/Down
LCD On/Off, Touch Screen On/Off, Reading Light On/Off
Power Requirement DC 12V / DC 24V when backup battery is installed
Display
Size 19" TN LCD
Resolution 1280 x 1024
Luminance 250 nits
View Angle 170˚(H)/160˚(V)
Contrast Ratio 1000:1
Back Light Life Time 30,000 Hours
Touch Screen 5-Wire Resistive / Capactive Multi-Touch Screen

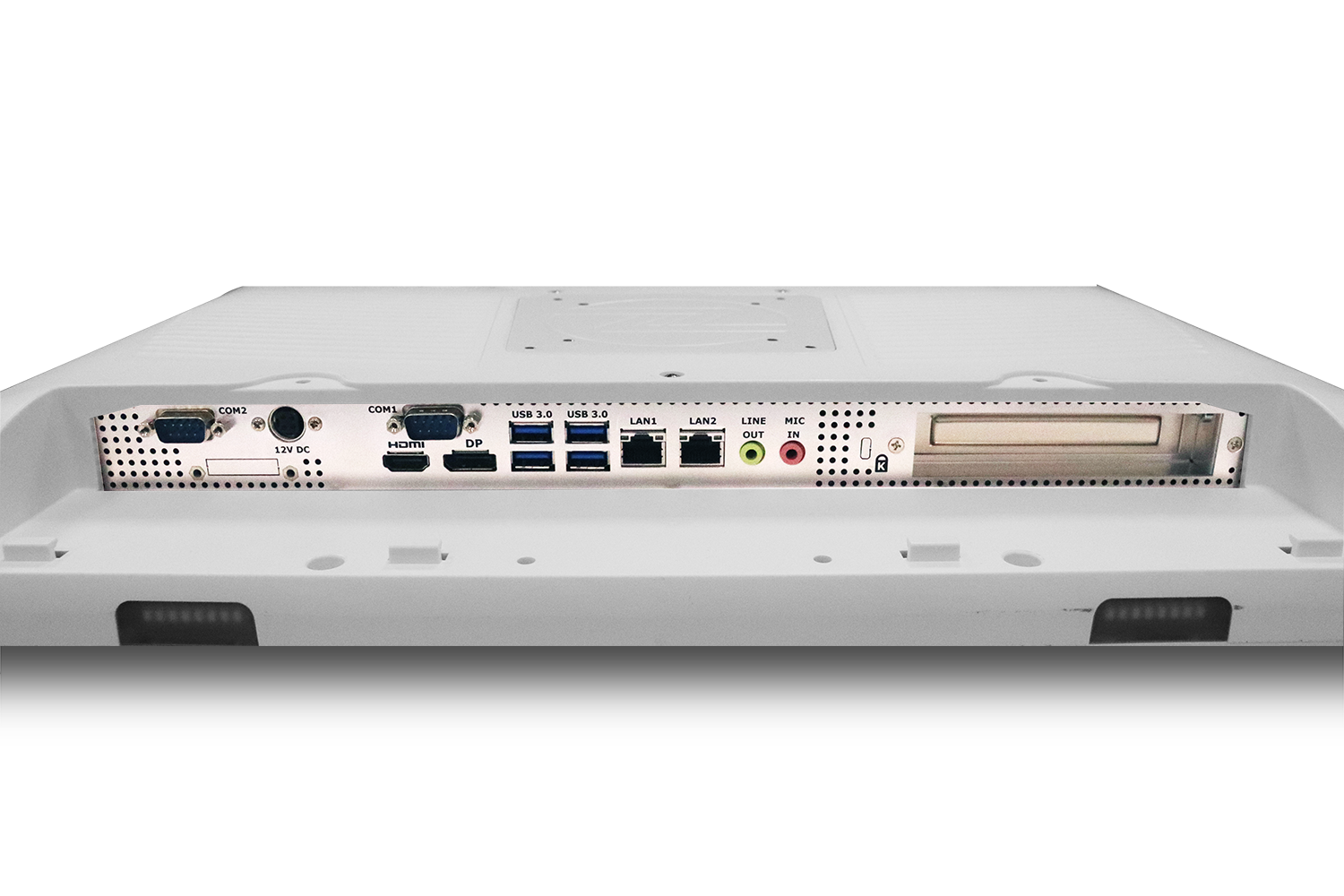

I/O
USB USB 3.0 x 4, USB 2.0 x 2
Serial Port RS-232 x 2
Ethernet 1.5KV Isolated Gigabit LAN x 2
Video Out Display Port 1.2 x1, HDMI 1.4 x 1
(Supports resolution up to 3840 x 2160)
Audio Mic-in, Line-out
Mechanical and Environmental
Operating Temperature 0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Mounting VESA 75/100 mm
Degree of protection IP65 in the front ; IP54 in the back
Dimension 450 x 388 x 66 mm
Package Size 640 x 220 x 520 mm
Gross Weight 11 kg (24.25 lb)
Net Weight 7.5kg (16.53b)
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
