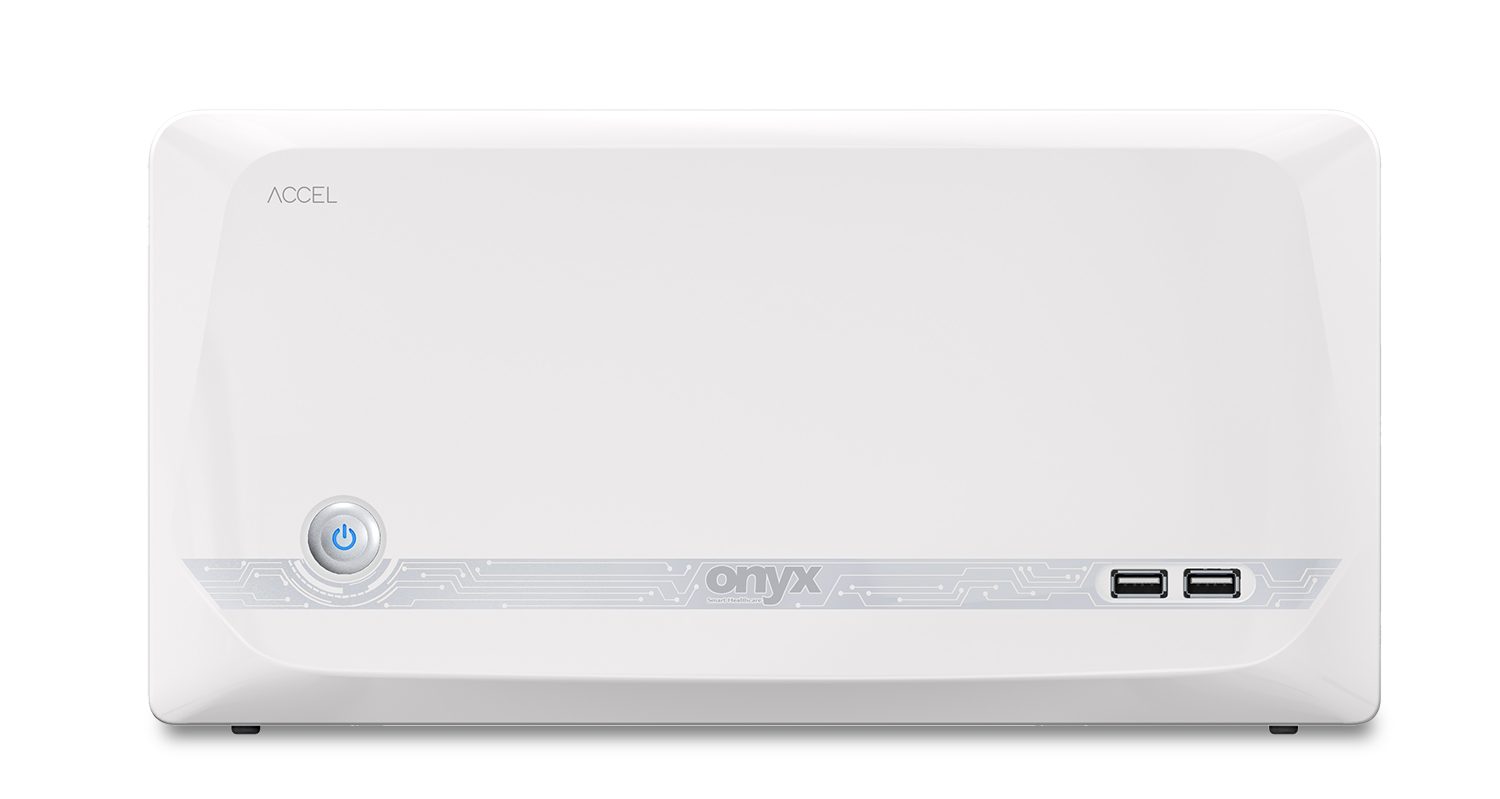

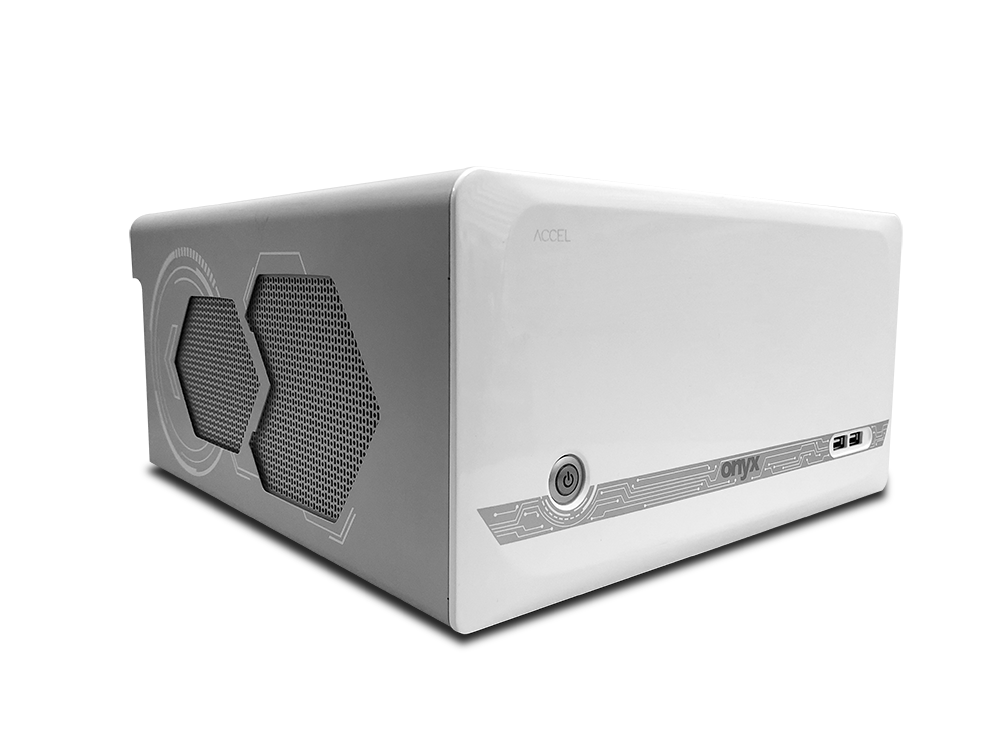

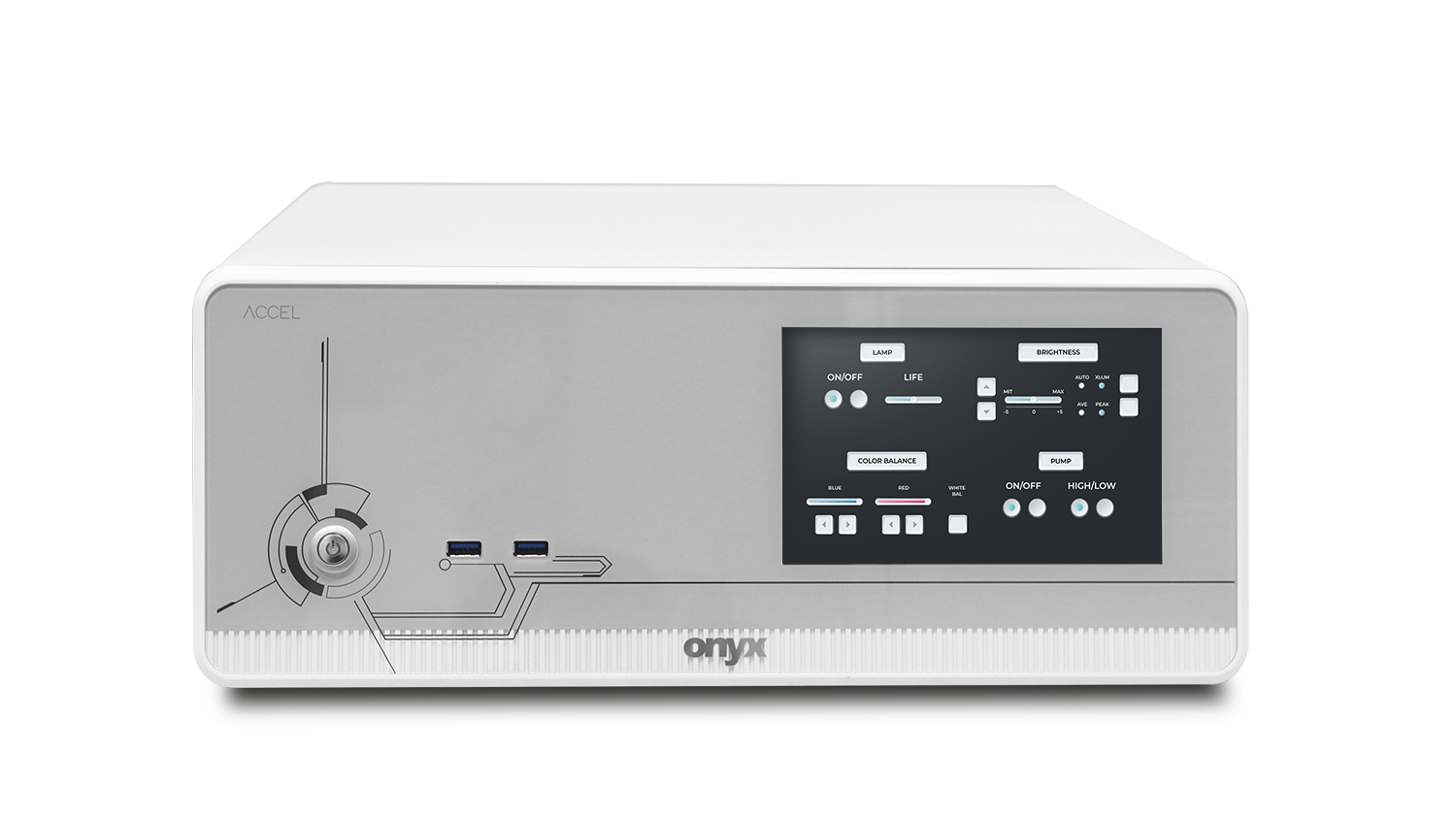

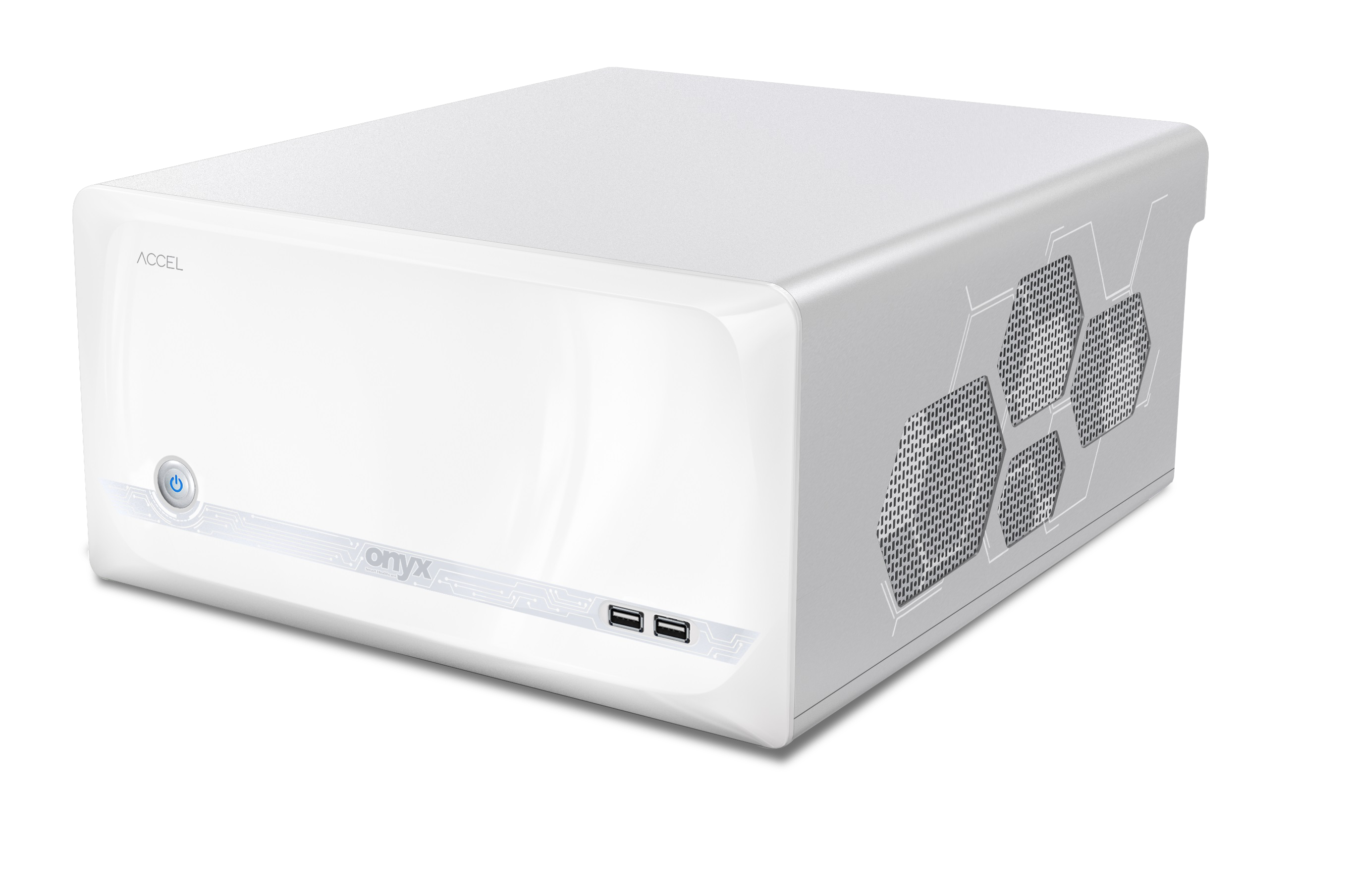

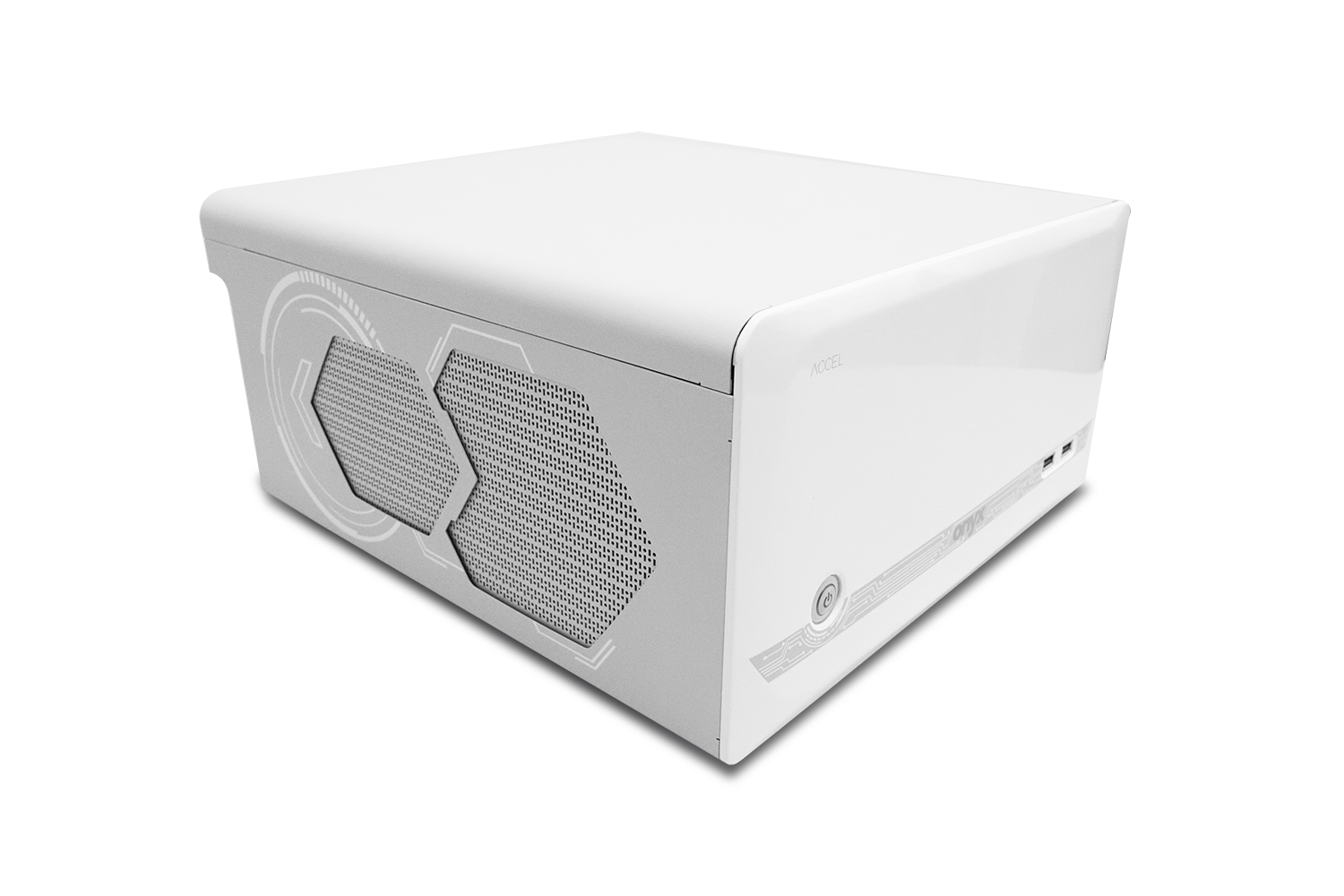

ACCEL-VM500

Medical Video Management System with 9th Generation Intel Xeon / Core i7 CPU

Product Feature

  • Intel® 9th generation Core I/Xeon Processor with C246A chipset
  • Supports ECC DDR4 DIMM up to 64GB memory
  • Excellent Thermal design with low fan noise OR room environment
  • Support TPM 2.0 for security management
  • Support Three 4K Displays: HDMI x 2, DP x 1
  • System is medical Certified with graphic card and capture card
  • Supprt the integration of Nvidia RTX A4000, A5000 and A6000 GPU Card
  • Support CD DVD(optional)
  • Support Built in speaker (optional)

Features

1 6

Specifications

Main Specifications
Processor Intel® 9th generation Core I/Xeon Processor
Chipset Intel® C246A
System Memory Supports ECC/Non-ECC DDR4 2133 DIMM x 4 up to 64GB
OS Support Windows® 10 , Windows® 11 , Linux (optional)
Storage Disk Drive 2.5" SATA SSD x 2, M.2 2280 M Key SSD x 1 (NVMe or SATA SSD)
TPM 2.0
Speaker (Optional) Built in Speaker
CD DVD(Optional) SATA DVD+/-RW White Color

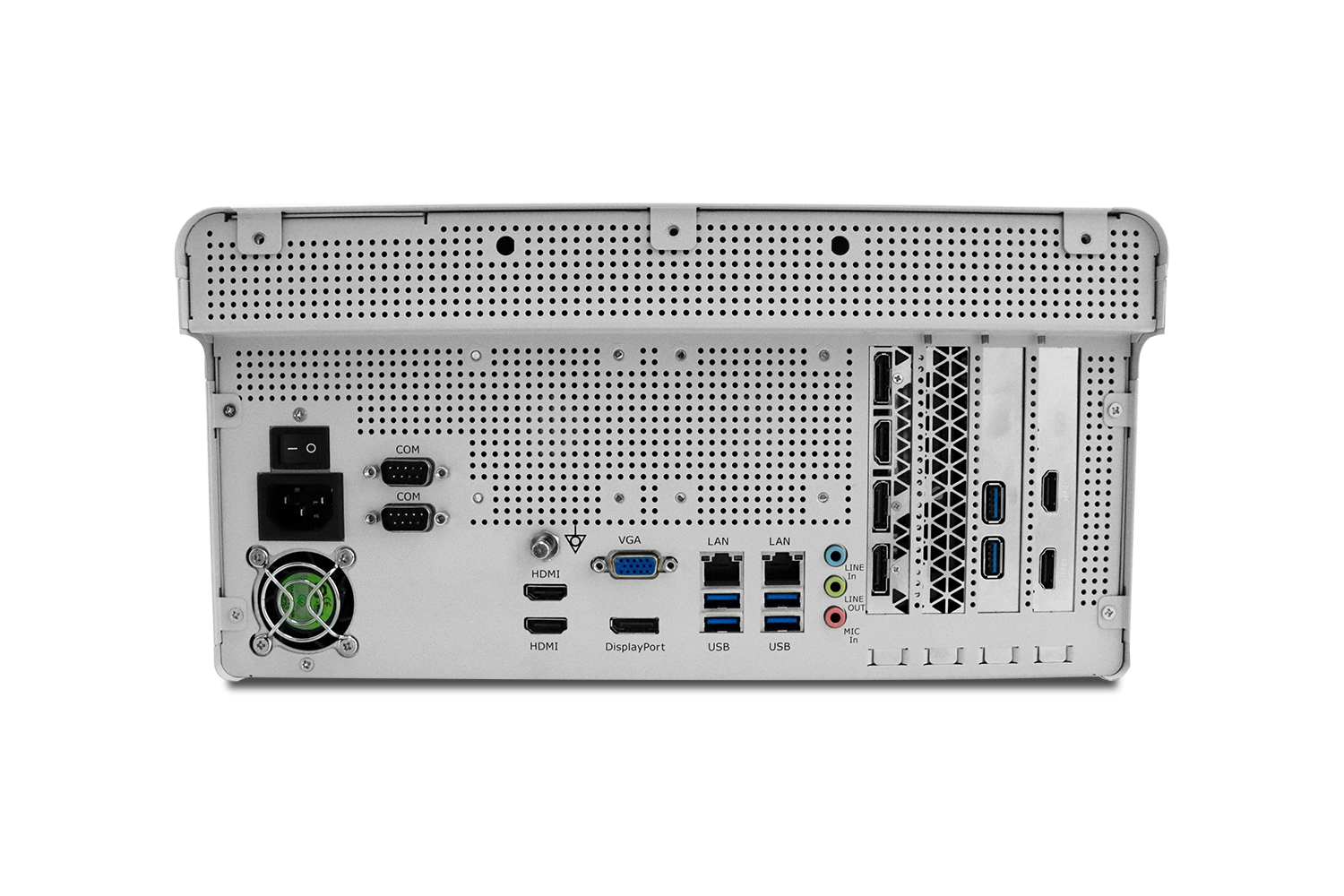

I/O
USB Rear USB 3.1 Gen 1 x 4
Front USB 2.0 or USB 3.0(Optonal)
Rear USB 3.1 Gen 2 x 6(Optional)
Ethernet Gigabit LAN x 2
Audio Line-in x 1, Mic-in x 1 and Line-out x 1
Series Ports RS-232 x 2
Extension area M.2 E Key 2230 x 1 for Wireless module
PCIe 3.0[x16] x1, PCIe 3.0 [x4] x2, PCIe 3.0 [x1] x 1
Optional Capture I/O 4Kp60: HDMI 2.0 in
FHD: HDMI x1, DVI-I x 1, YPbPr x1, SDI x1, CVBS x 1, S-Video x 1

Mechanical and Environmental

Power Consumption 100V to 240V AC Input, 500W
Operating Temperature 0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Dimension 330 x 357.4 x 168 mm
Package Size 500 x 490 x 300 mm
Gross Weight 8.6 kg
Net Weight 8 kg
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013/A12:2014 (V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
