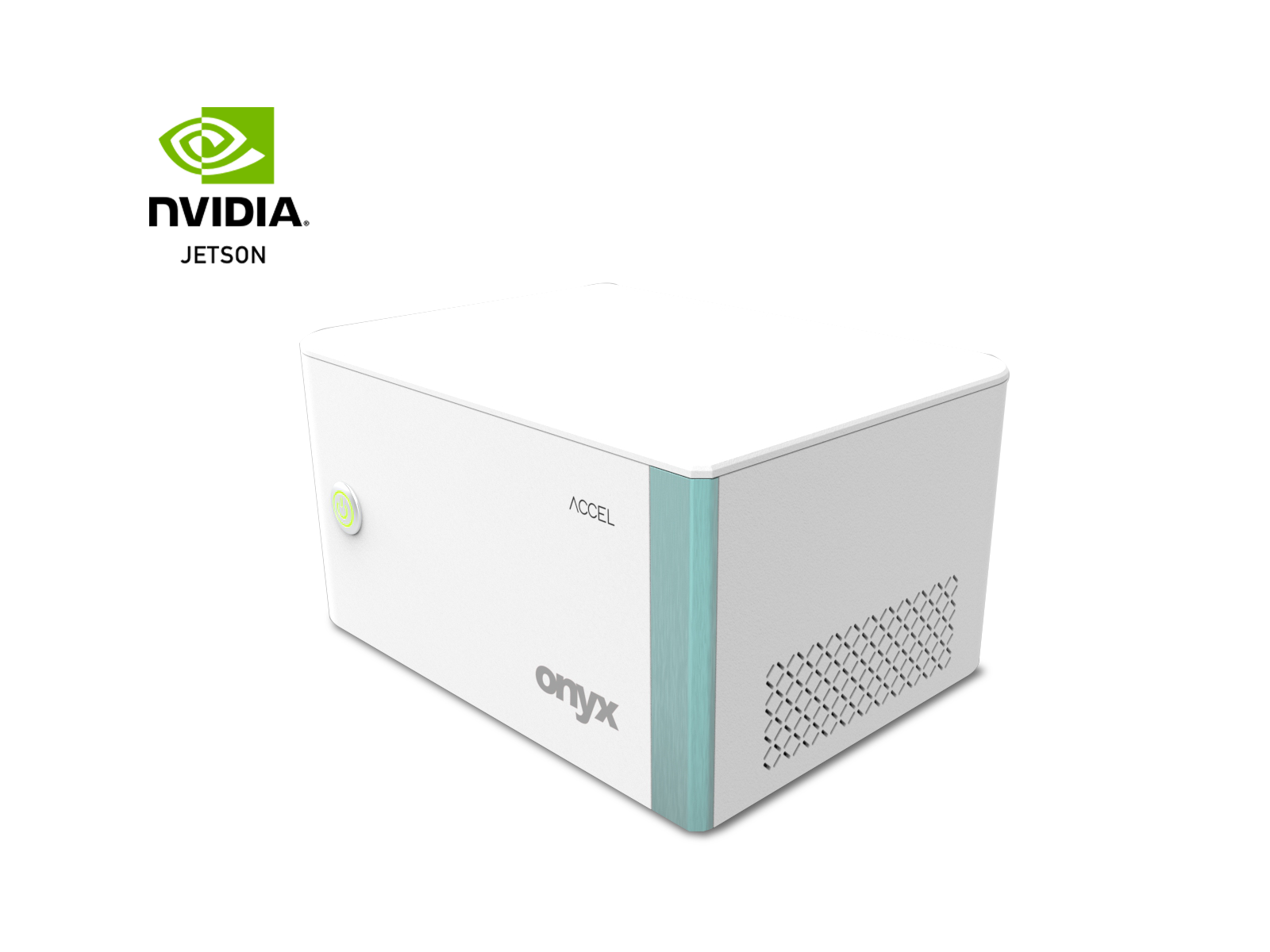

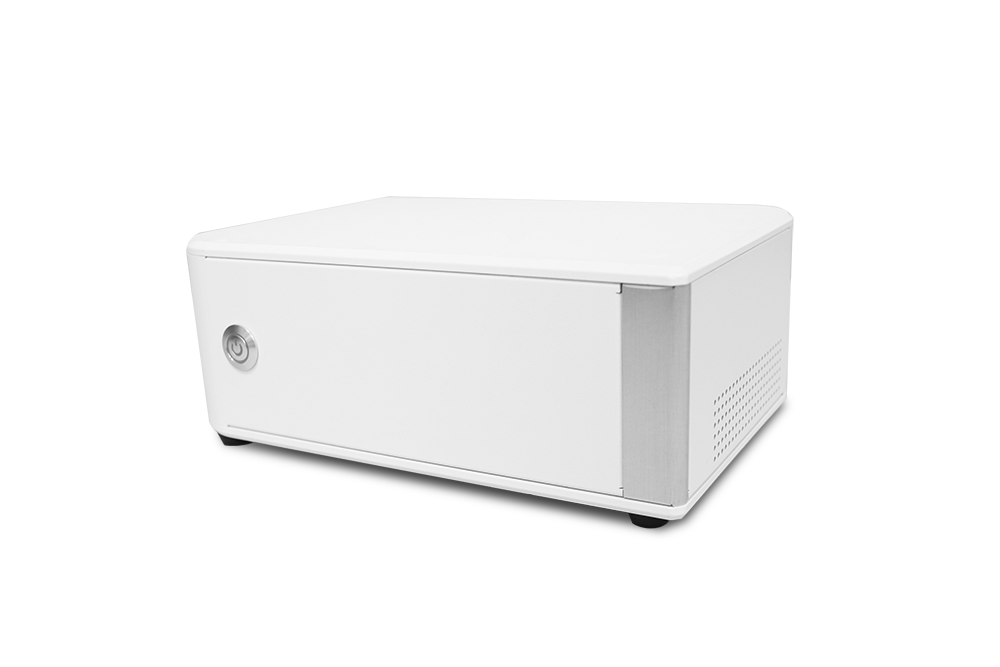

Medical AI Box PC Powered By NVIDIA Jetson AGX Orin Platform for AI Imaging Application

Product Feature

● NVIDIA Jetson AGX Orin platform with 64GB LPDDR5 or 32GB LPDDR5
● Powerful AI computing performance with up to 275 TOPS
● Support  HDMI 2.0 video output
● Compact size suitable for space limited area
● Support 3G SDI or 12G SDI or HDMI video input
● Medical certified with CE/FCC/UL
● Support optional PCIe [x8] x1 for possible customization
● Support built in speaker x 2

  • AI


1 6


Main Specifications
AI Engine NVIDIA Jetson AGX Orin
CPU 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2
+ 4MB L3 (ACCEL-JS1000-N1)
12-core Arm® Cortex®-A78AE v8.2 64-bit CPU 3MB
L2 + 6MB L3(ACCEL-JS1000-N2)
System Memory 32GB or 64GB 256-bit LPDDR5 204.8 GB/s
Graphics 1792-core NVIDIA Ampere GPU with 56 Tensor Cores
2048-core NVIDIA Ampere GPU with 64 Tensor Cores
Storage 64GB eMMC 5.1 , M.2 NVMe Storage (Optional)
OS support Linux with Jetpack OS
Security TPM 2.0
Speaker  2W x Speaer x 2
USB USB Type C x 2 for USB 3.2 ,  one only support APX mode
USB Type A x 2 for USB 2.0
Ethernet Gigabit LAN x 1
Video Out HDMI 2.0 x 1
Video input (Optional)

3G SDI or 12G SDI,or HDMI
3G SDI(Max resolution up to 1920×1080p@60fps),
12G SDI(Max resolution up to 4096×2160@60fps)
HDMI (Max resolution up to 1920×1080p@60fps)

Audio Mic-in x 1 , Line out x 1
Serial Port RS232 x 1
Function Port Reset Button x 1 ,Recovery Button x 1,
Grounding pin x 1
DC-in  12V DC Jack
Front I/O Power Button with Power LED indicator x 1
Wireless Communication  802.11a/b/g/n/ac/ax.w/BT5.2 (Optional)
Expansion I/O  PCIe [x8] x 1(Optional)
Environment and Mechanical
Power Medical adapter 12V 120W
Operating temperature 0°C ~ 35°C(32°F ~ 95°F)
Storage temperature  -20°C ~ 60°C(-4°F ~ 140°F)
Dimension 220(W) x 150(D) x 87.8(H)  mm
Package Size 295 x 230 x 208 mm
Gross Weight 3.4 KG
Net Weight 1.8KG
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013/A12:2014 (V3.1)
FCC: Part 18 Class B,
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
