ONYX-BE102R

10.1” Fanless Android Bedside Computer

Product Feature

  • Rockchip RK3288 Processor
  • Android 6.0
  • 10.1” Wide Color TFT LCD Touch Terminal
  • PCT with Multi-Touch support
  • Intuitive Front Access Function Keys
  • IP65 Waterproof in front
  • Optional VOIP Phone, Webcam and RFID
  • EN 60601-1, UL 60601-1
  • IP54
  • TAG RFID
  • EN/UL 60601-1
  • Android 6.0
  • Fan-less
  • POE
  • Isolated
  • battery

Features

1 6

Specifications

Main Specifications
Processor Rockchip RK3288 ARM Cortex A17 QC 1.6GHz
System Memory DDR3L 2GB
Expansion Interface Mini PCIe Slot x 1
Storage Disk Drive 16GB eMMC
Wireless Communication 802.11 ac + BT 4.1
Camera 5 Megapixels
Speaker 2W x2
Function Key Power,Speaker Volume Up/Down, LCD Brightnss Up/Down
Power Requirement DC 12V / Power Over Ethernet
OS Support Android 6.0
Display
Size 10.1” LCD (16:9) Color TFT LCD
Max. Resolution 1280 x 800
Luminance(cd/m2)(TYP) 400 nits
Max. Colors 16.7 M
View Angle 170˚(H)/170˚(V)
Contrast Ratio 800:1
Touch Screen Projected Capacitive Touch

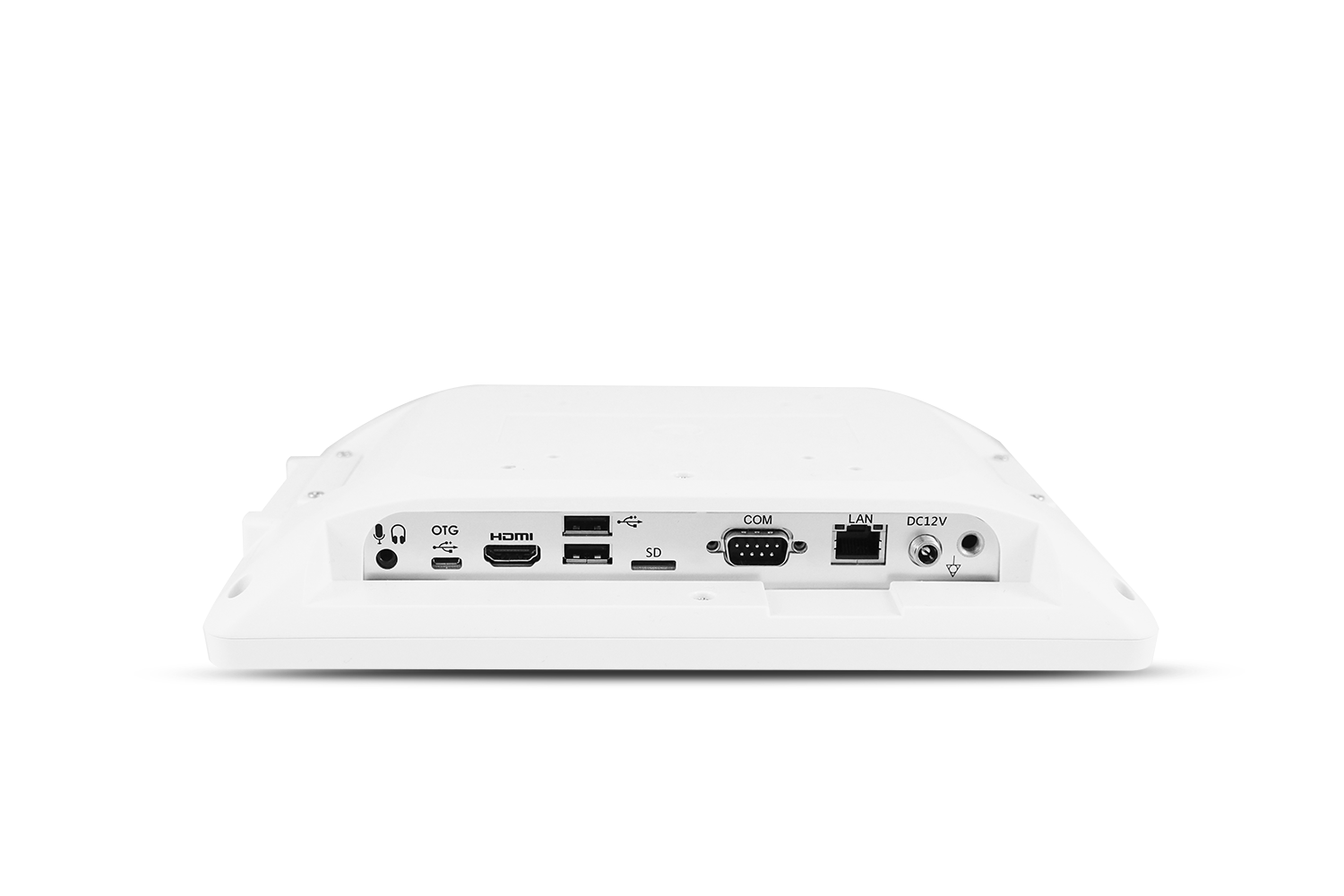

I/O
USB USB 2.0 (Type-A) x2
Serial Port RS-232 x1 (Optional)
Ethernet Gigabit LAN x1 (Support Power over Ethernet)
Audio 3.5mm Phone Jack x1
Video HDMI Out x1
SD Card Slot Micro SD x1
DC-In DC-In Jack x1
Mechanical and Environmental
Infection Control Anti-Bacteria (Optional)
Operating Temperature 0°C ~40°C( 32°F ~104°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)

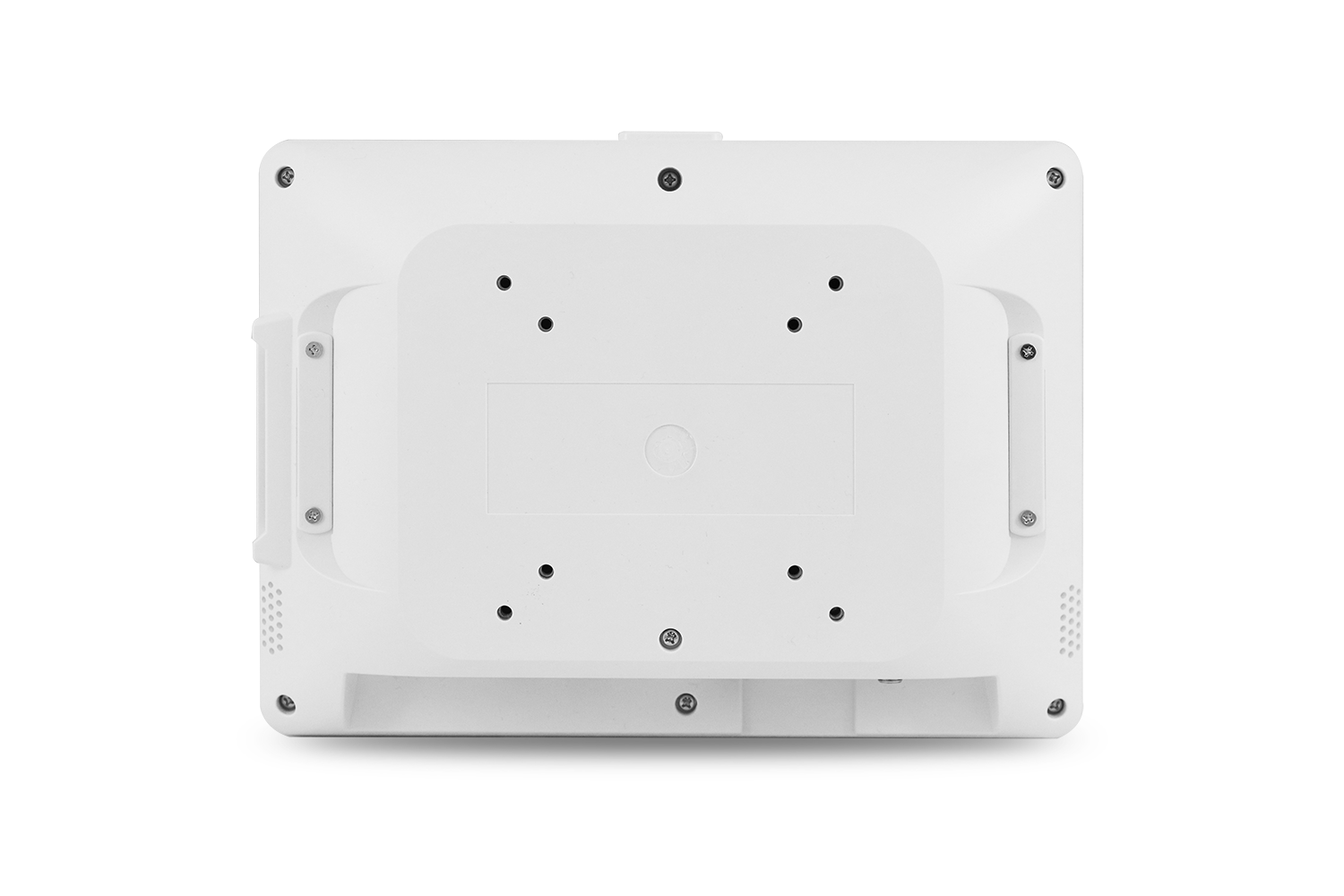

Mounting VESA 75/100 mm
Degree of protection Front Panel: IP65, Whole Unit: IPX1
Dimension 262.36 x191.10 x45 mm
Package Size 402 x 190 x 335 mm
Gross Weight 3.7 kg (8.2lb)
Net Weight 1.2 kg (2.6lb)
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
