ONYX-BE153R

15.6” Fanless Android Bedside Computer

Product Feature

  • Rockchip RK3288 Processor
  • Android 6.0
  • 15.6” Wide Color TFT LCD Touch Terminal
  • PCT with Multi-Touch support
  • Intuitive Front Access Function Keys
  • IP65 Waterproof in front
  • Optional VOIP Phone, Webcam and RFID.
  • EN 60601-1, UL 60601-1
  • IP54
  • TAG RFID
  • EN/UL 60601-1
  • Android 6.0
  • Fan-less
  • POE
  • Isolated
  • battery

Features

1 6

Specifications

Main Specifications
Processor Rockchip RK3288 ARM Cortex-A17 QC 1.6GHz
System Memory DDR3L 2GB
Expansion Interface Mini PCIe Slot x 1
Storage Disk Drive 16GB eMMC
Wireless Communication 802.11 ac + BT 4.1
Camera 5 Megapixels
Speaker 3W x2
Security 13.56MHz RFID Reader (Optional)
Function Key Power, Volume Up/Down, Brightness Up/Down,LCD On/Off, Touch On/Off
Power Requirement DC 12V / Power Over Ethernet
OS Support Android 6.0
Display
Size 15.6” (16:9) Color TFT LCD
Max. Resolution 1920 x 1080 FHD
Luminance(cd/m2)(TYP) 220 nits
Max. Colors 16.7 M
View Angle 90 (H)/60 (V)
Contrast Ratio 500:1
Touch Screen Projected Capacitive Touch

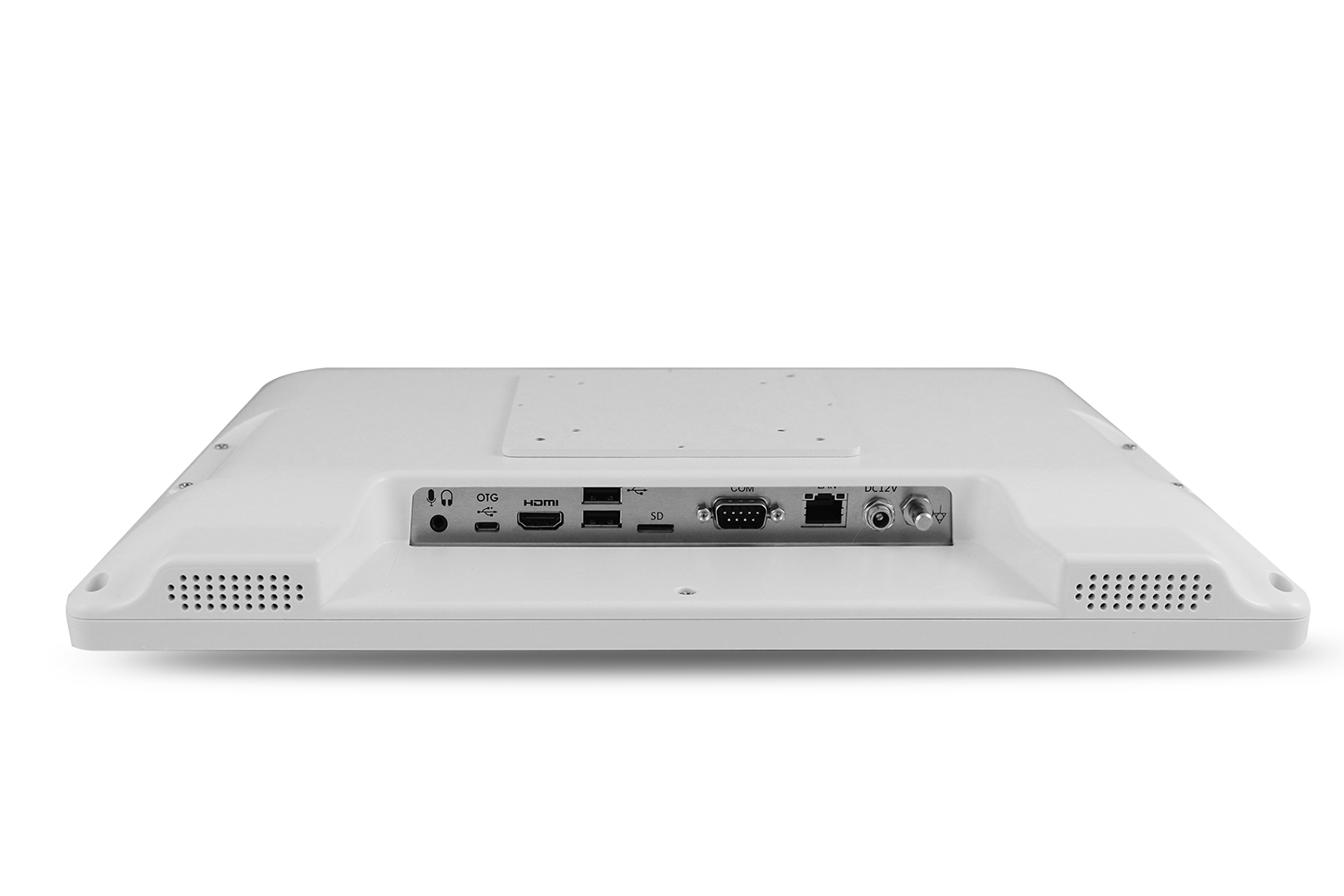

I/O
USB USB 2.0 (Type-A) x2
Serial Port RS-232 x1 (Optional)
Ethernet Gigabit LAN x1 (Support Power over Ethernet)
Audio 3.5mm Phone Jack x1
Video HDMI Out x1
SD Card Slot Micro SD x1
DC-In DC-In Jack x1
Mechanical and Environmental
Infection Control Anti-Bacteria (Optional)
Operating Temperature 0°C ~40°C( 32°F ~104°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)

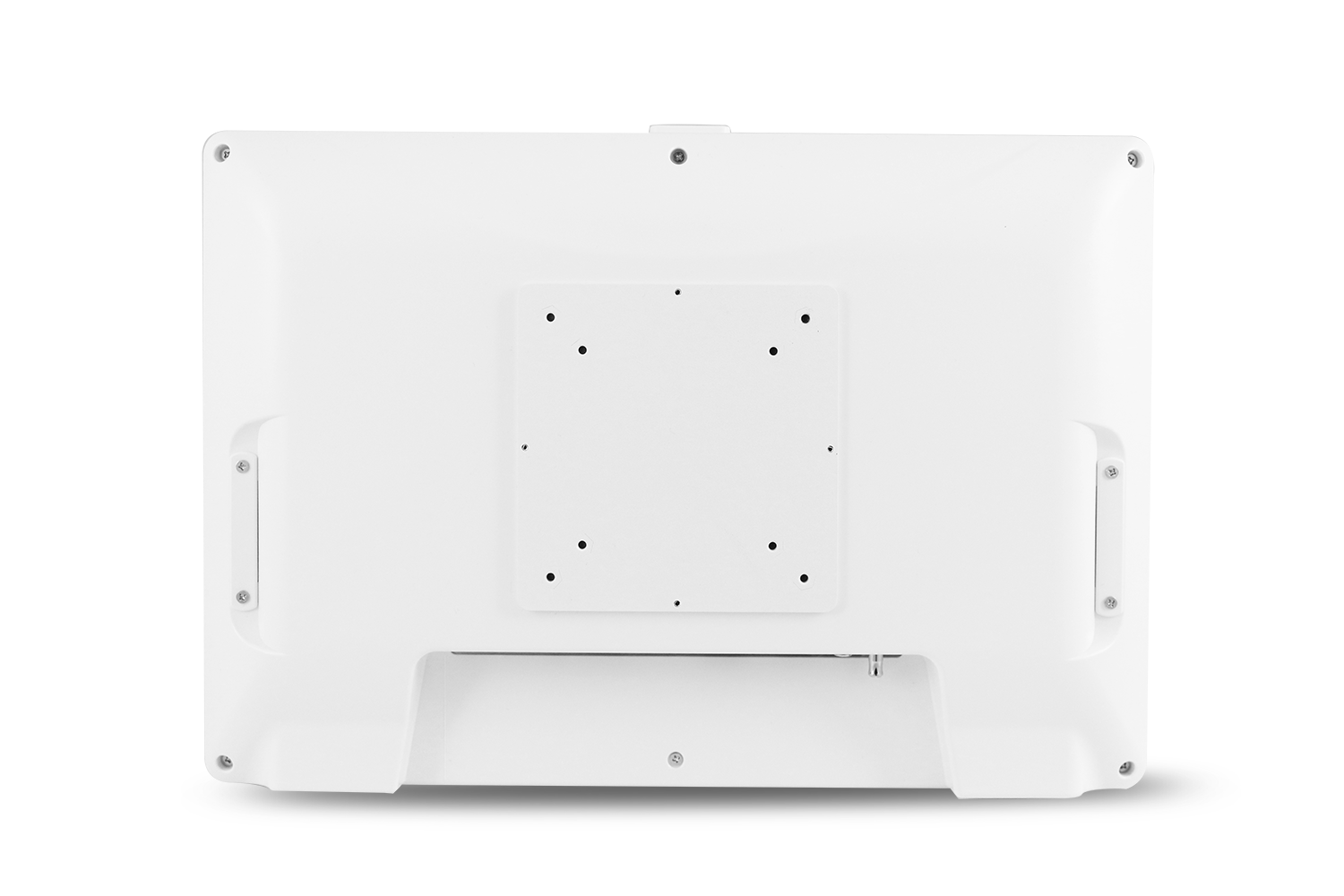

Mounting VESA 75/100 mm
Degree of protection Front Panel: IP65, Whole Unit: IP54
Dimension 397.8 x 268.0 x 42.3 mm
Package Size 721 x 224 x 464 mm
Gross Weight 6.5 kg (14.33lb)
Net Weight 2.8 kg (6.17lb)
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
