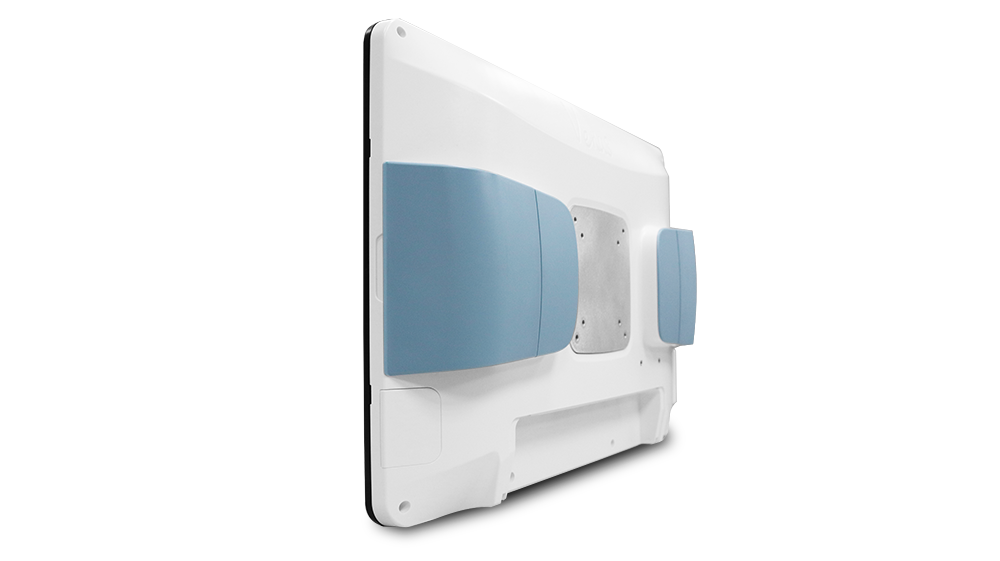

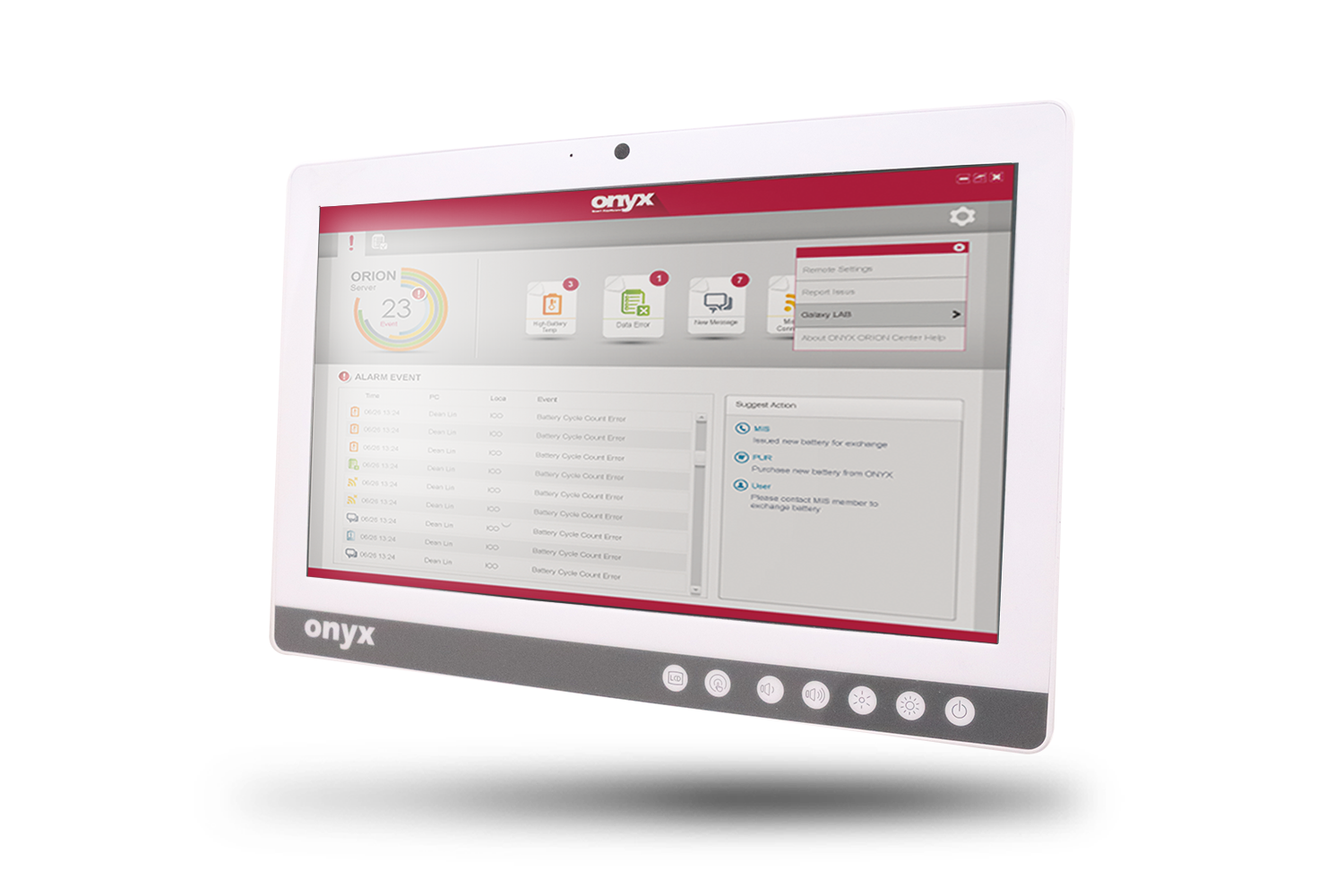

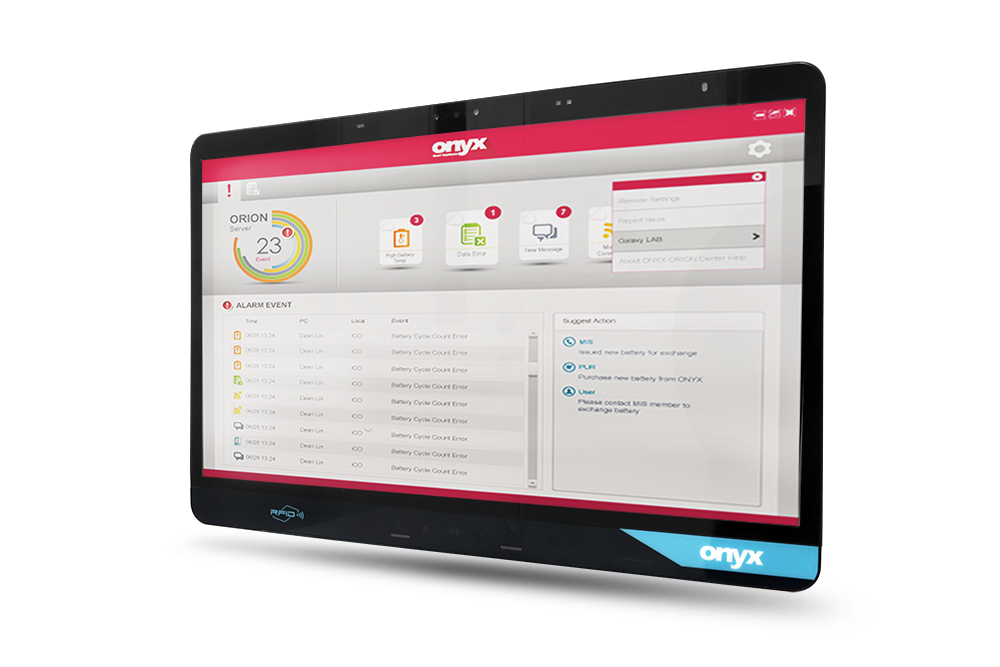

22” Dual Hot Swappable Battery Medical Cart Computer

Product Feature

  • Intel 11th gen Tigerlake, fan less implementation
  • Windows 11 and IGEL Compliant

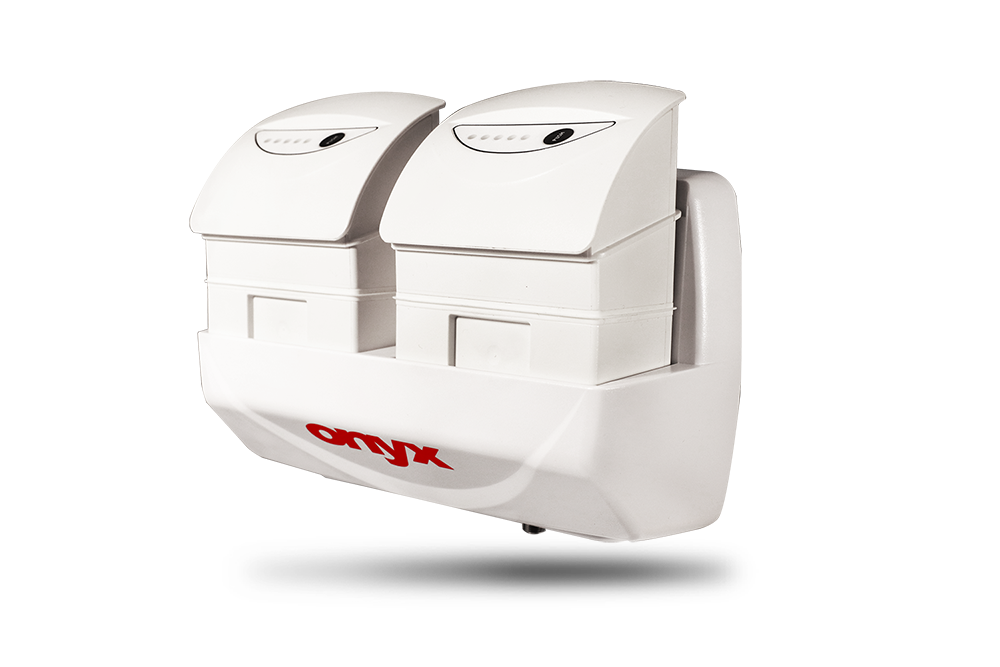

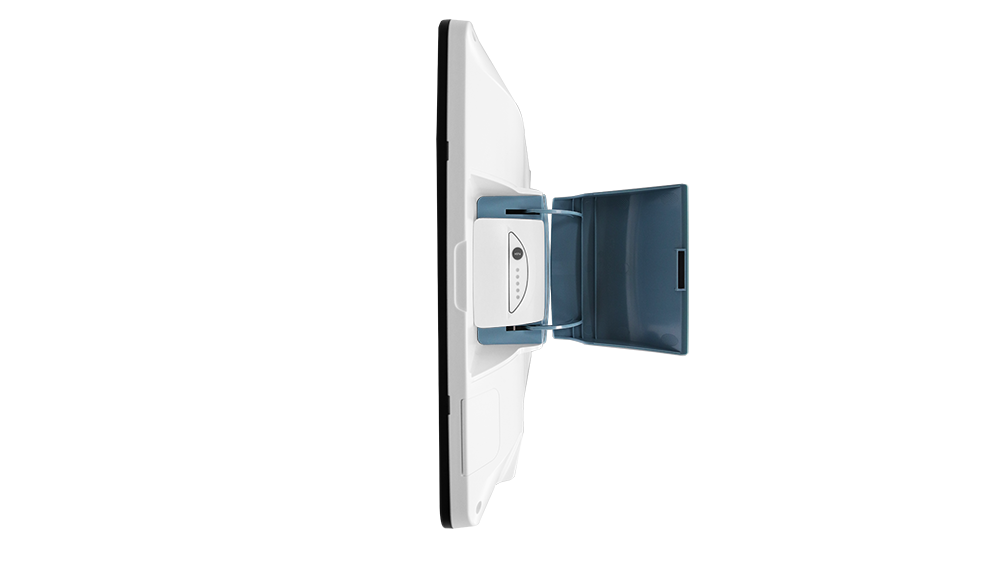

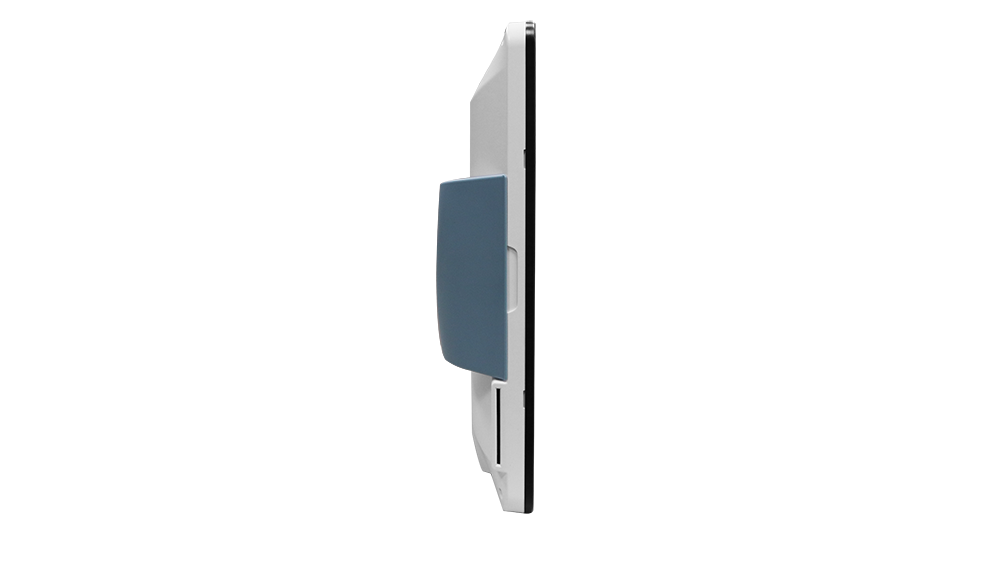

  • Dual Hot Swap Batteries
  • Easy cleanable and anti-bacterial by using …..
  • Internal Imprivata compliant RFID reader (optional)
  • WiFi 6 (optional)

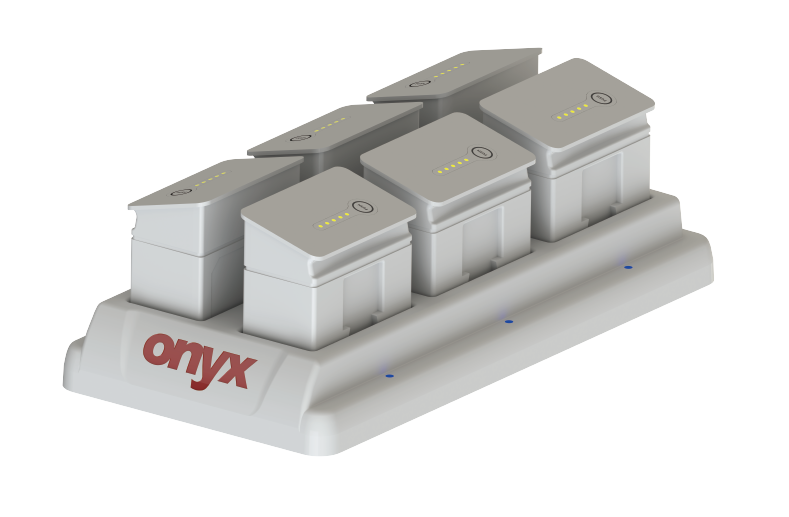

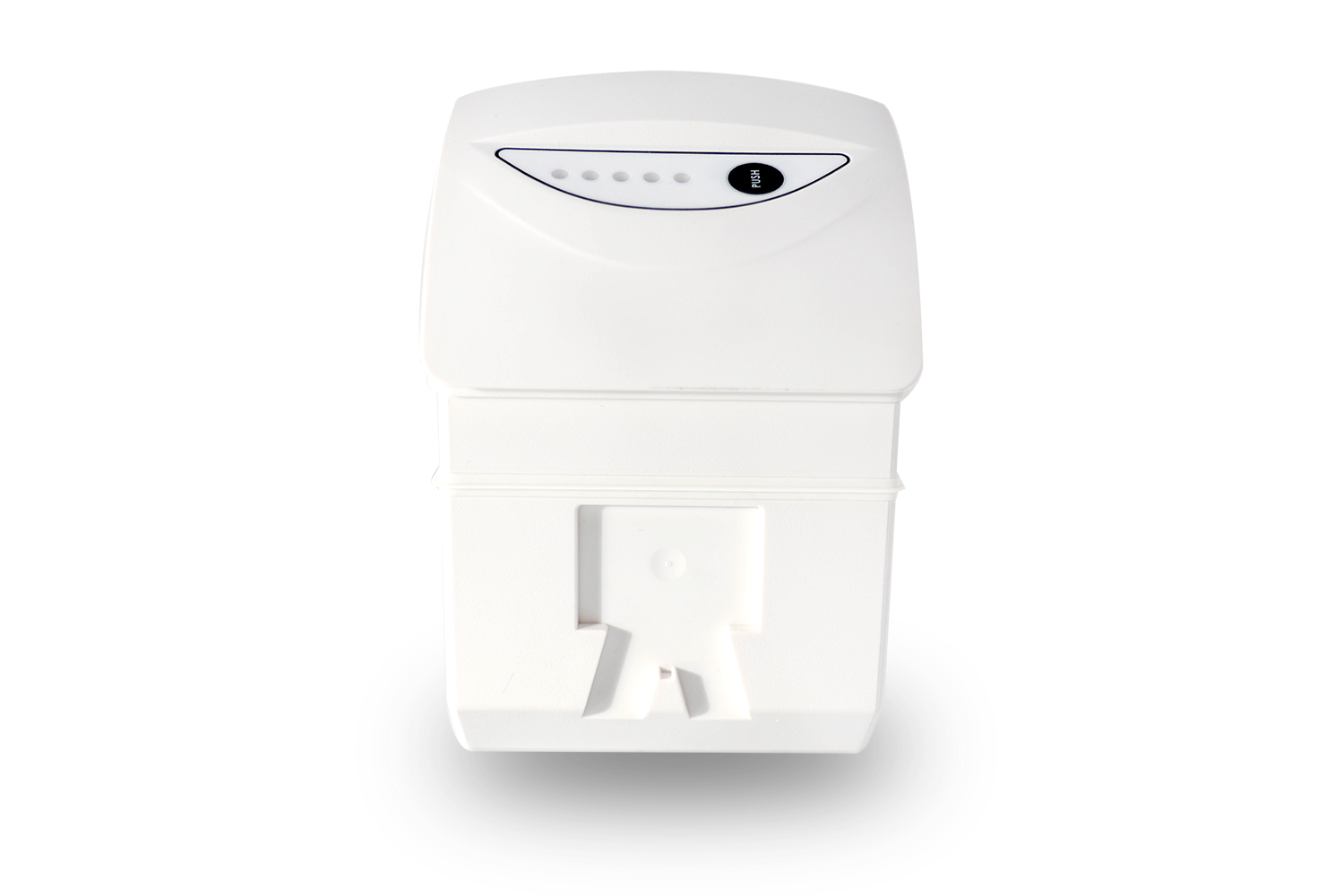

  • Compliant with all Venus batteries
  • Remotely Manageable by central iT departments
  • IP54
  • Swap
  • EN/UL 60601-1
  • Fan-less
  • POE
  • SDK
  • creative design
  • SIAA






Main Specifications
Processor Intel® 10nm 11 gene. Tiger Lake i7/i5/i3/Celeron
System Memory DDR4 up to 16GB
OS Support Microsoft® Windows 11
Microsoft® Windows 10 (64bit)
Ubuntu 20.04 LTS
IGEL (thin client solution)
Grahpics Intel® UHD Graphics
Storage m.2 SSD up to 512 GB
Wireless Communication 802.11 ac/a/b/g/n + BT 4.1 (optional)
Wifi6 + BT 5.2 (optional)
Touch PCT (optional)
Speaker 3W x2
Trusted Platform Module TPM 2.0
Security Smart Card Reader (optional)
Imprivata RFID reader (optional)
Barcode reader (optional)

Front IP65 ; rear IPX1

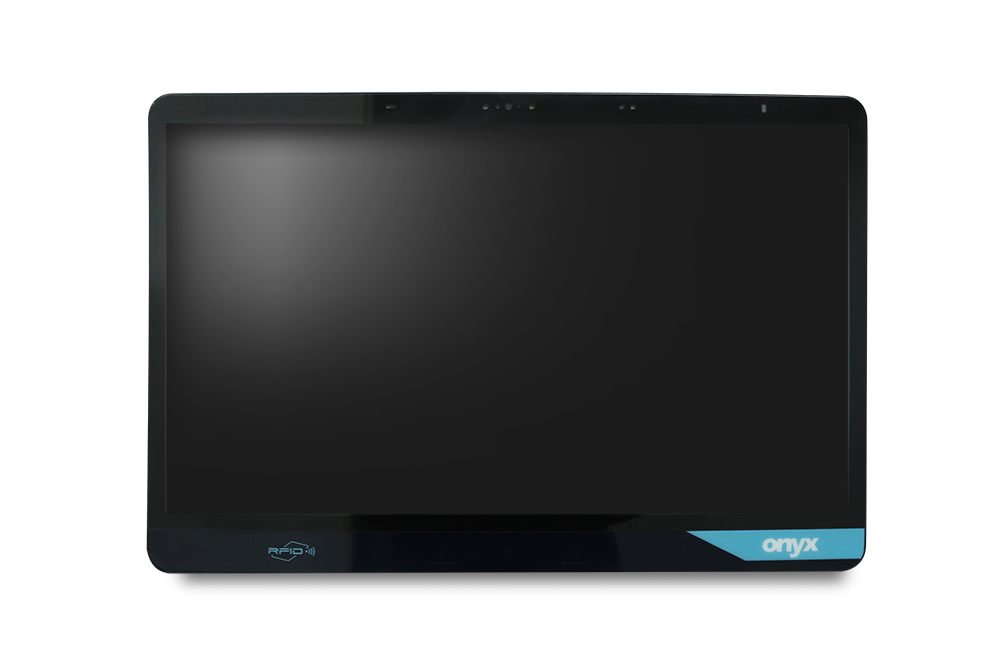

Display Size 21.5”
Resolution FHD 1920 x 1080
Max. Colors 16.7 M
Contrast Ratio 3000:1
Luminance (cd/m2)      250

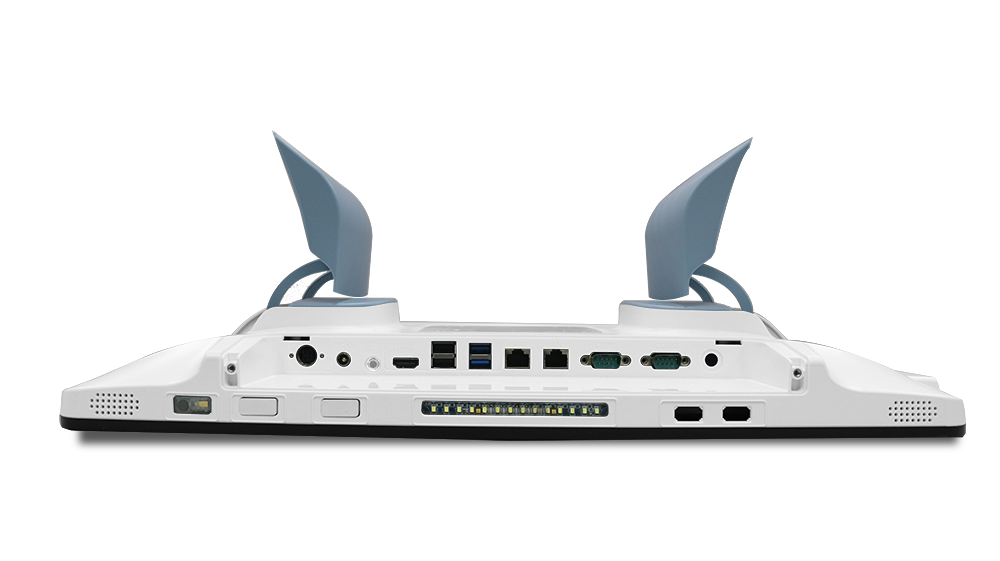

USB              Rear I/O :USB 3.0 x2, USB 2.0 x2
Front button I/O : USB 3.0 x2
Video Out HDMI 1.4 x1
COM COM port x2
Audio Combo audio port x1
Ethernet 1.5kv isolated Gigabit LAN x2
DC-in 19V DC-in x1
Mechanical and Environmental

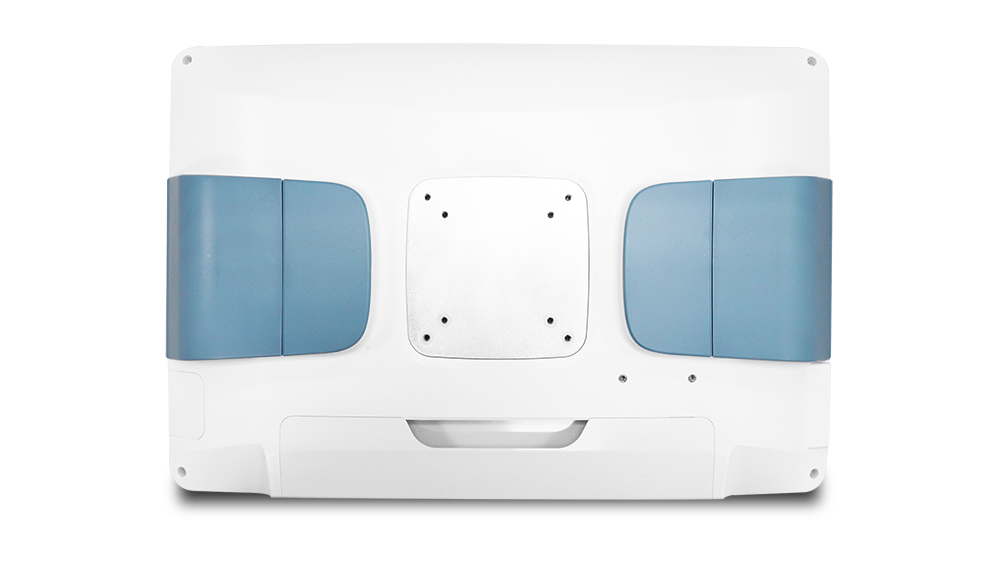

VESA 75/100 mm VESA mount
Operating Temperature 0°C ~40°C( 32°F ~104°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Storage Humidity 10%~95%@35°C, non-condensing
Dimension 510(L) x 78.4(W) x 346(H) mm
Package Size 645(L) x 210(W) x 513(H) mm
Net Weight 6kg
