MEDDP-727
27” Slim 4K Medical Display
Product Feature
- 27" LCD Panel with 3840 x 2160 resolution
- High Brigtness 500nits
- Compact and Slim Design

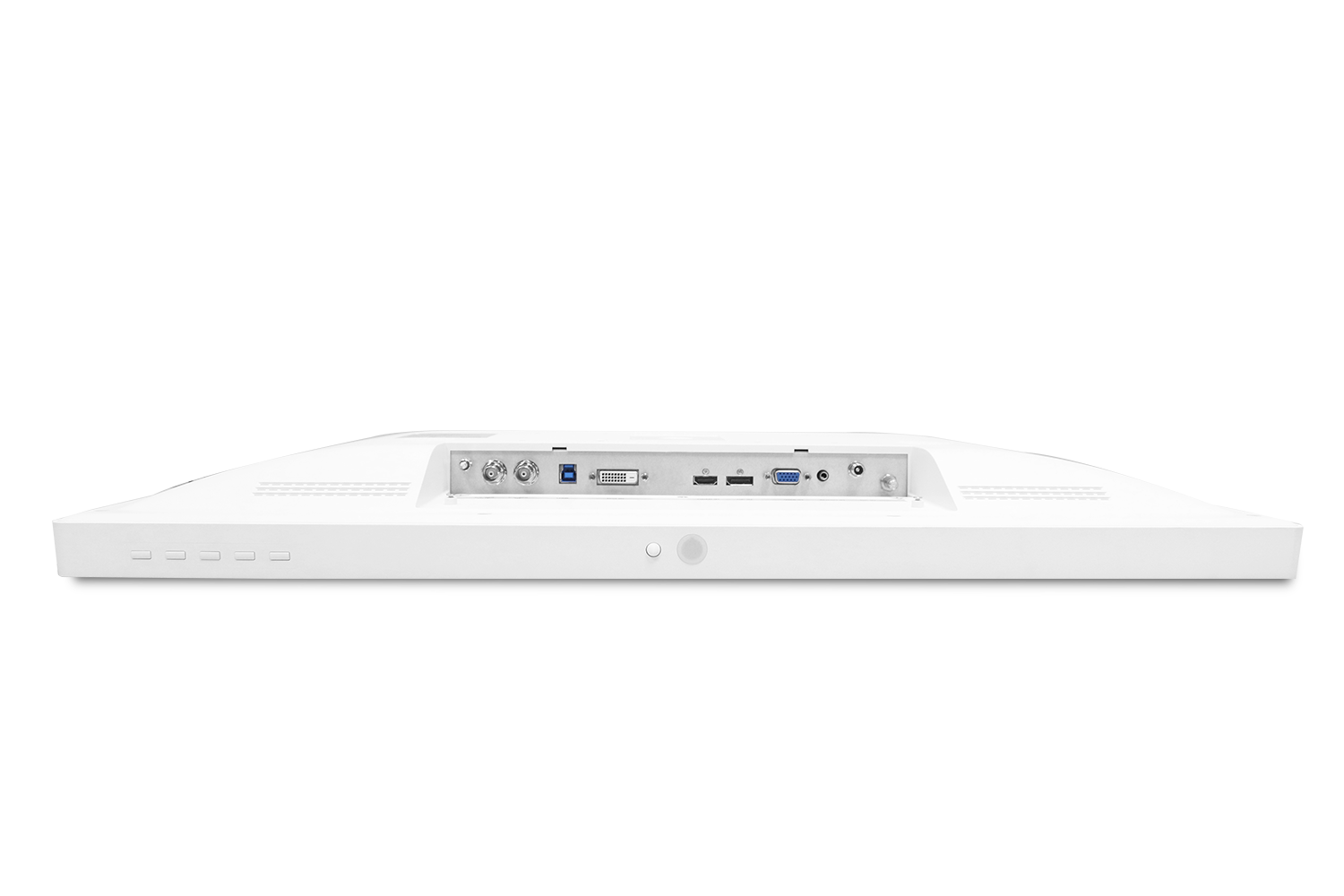

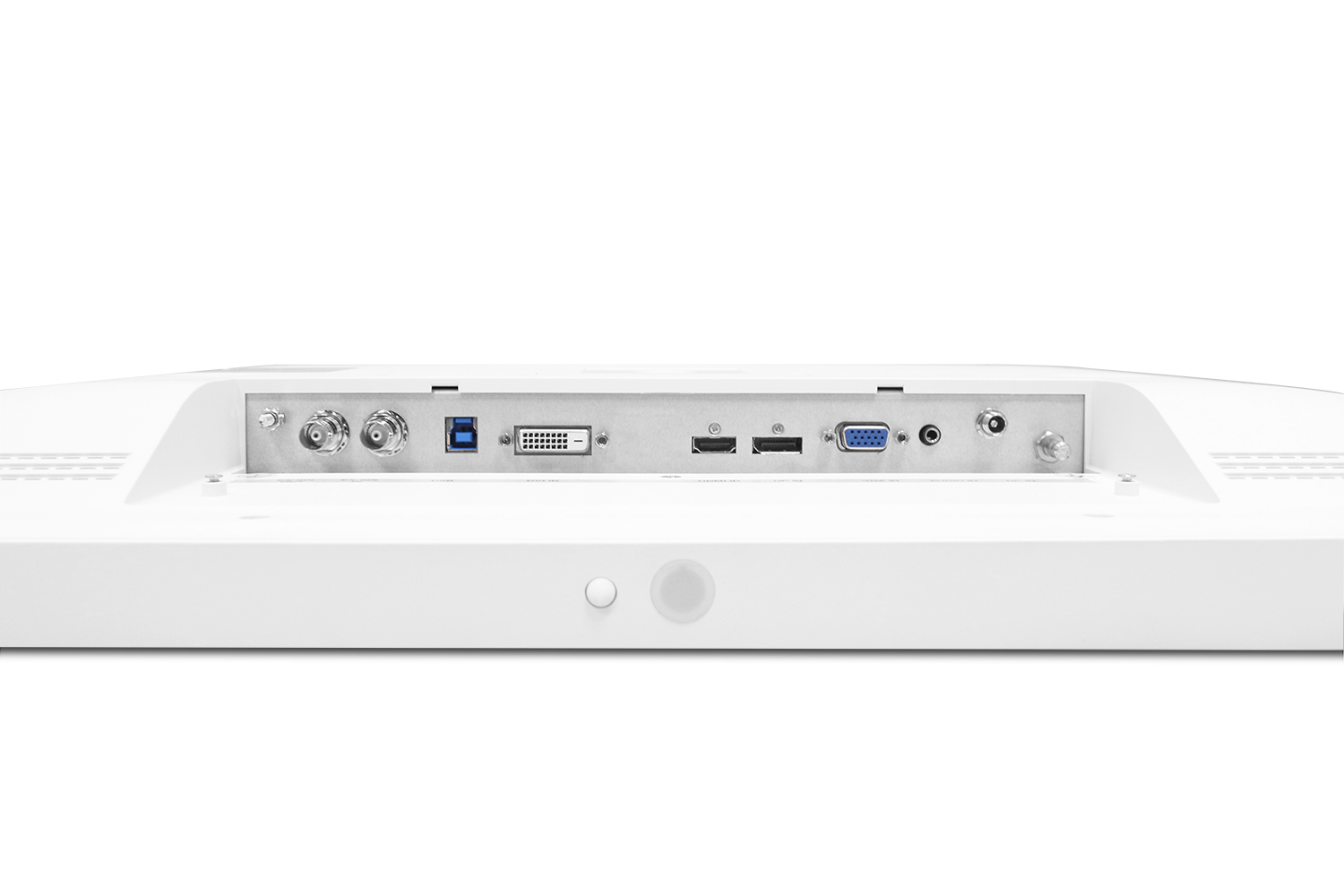

- DVI-D x1, HDMI 2.0 x1, DP 1.2 x1, VGA x1, HD-SDI in x1 and out x1
- True Flat Screen with Capacitive Touch
- 10W Speaker built-in x 2
- Physical OSD key button
- Support optional RFID, Camera, DICOM
Features
Specifications
| Display | |
| Size | 27" |
| Resolution | UHD 3840 x 2160 |
| Max. Colors | 1.07B colors |
| Brightness (Typ.) | 500 nits |
| Viewing Angle (CR=10)(Typ.) | 178˚(H)/178˚(V) |
| Contrast Ratio (Typ.) | 1000:1 |
| Touch Screen | Projected Capacitive Multi Touch Screen |
| Power Requirement | External power adapter, AC IN: 100~240V, DC 12V/7.5A |
| System | |
| OS Support | Windows® 10, Windows 11 |
| I/O | |
| Input Signal | DVI-D x1, HDMI 2.0 x1, DP 1.2 x1, VGA x1, HD SDI x1 |
| Output Signal | HD SDI x1 |
| USB Port | USB 3.0 Type B x1 for Touch Screen |
| USB 3.0 Type A x1 for USB peripherals | |
| Speaker | Built in 10W speaker x 2 |
| Audio | Line-in x 1 |
| Mechanical and Environmental | |
| Operating Temperature | 5°C~40°C (41°F~104°F) |
| Storage Temperature | -10°C~60°C (14°F~140°F) |
| Storage Humidity | 10% to 90% RH, noncondensing |
| VESA | 100mm x 200mm ,100mm x 100mm |
| Dimension | 657 x400 x 62mm |
| Packing Size | 786 x537x232mm |
| Gross Weight | 11.58kg (25.53lb) |
| Net Weight | 7.82kg (17.24lb) |
| Certifications |
CE: EN 60601-1-2:2015 + A1:2021 (V4.1), EN 60601-1:2007/A1:2013/A2:2021 (V3.2) FCC: Part 15 Subpart B / Part 18 Subpart C |
