MIX-H310D1
Mini-ITX with 8th/9th Generation Intel® Core™ LGA1151 Socket Processor

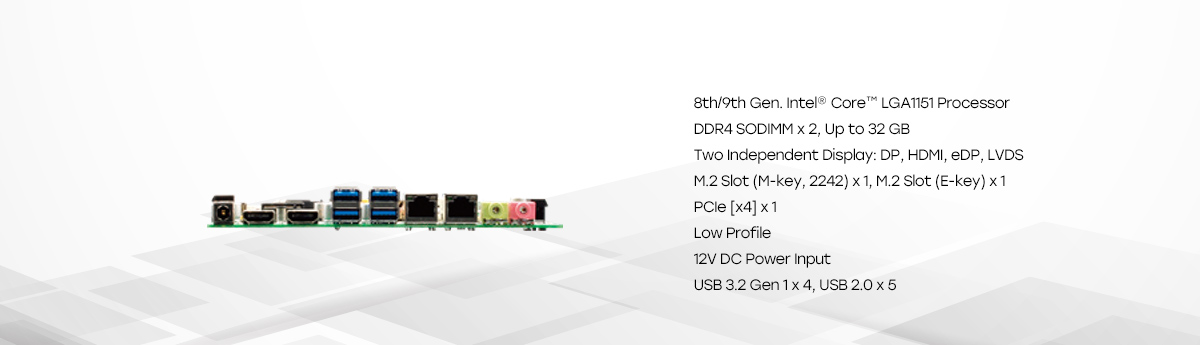

Product Feature
- 8th/9th Gen. Intel® Core™ LGA1151 Processor
- DDR4 SODIMM x 2, Up to 32 GB
- Two Independent Display: DP, HDMI, eDP, LVDS
- M.2 Slot (M-key, 2242) x 1, M.2 Slot (E-key) x 1
- PCIe [x4] x 1
- Low Profile
- 12V DC Power Input
- USB 3.2 Gen 1 x 4, USB 2.0 x 5
Features
1
6
Specifications
| System | |
| Processor | 8th/9th Gen. Intel® Core™ LGA 1151 socket Processor (formerly Coffee Lake-S), Max. 65W TDPs |
| Chipset | Intel® H310 Express Chipset |
| Memory | DDR4 2666 MHz SODIMM x 2, Up to 64GB, Non-ECC, Unbuffered Memory,Dual channel memory architecture |
| I/O Chipset | NCT6793D |
| Ethernet | Realtek ® PCIe Gb LAN RTL8111H |
| TPM | TPM2.0 |
| Expansion Interface | PCIe3.0 [x4] x 1 ,M.2 E-key(22 x 30 mm) x 1 for Wirelesswifi module ( PCIe+USB) |
| BIOS | 128Mbit Flash ROM, AMI BIOS |
| H/W Monitor | Temperature Monitor on CPU/Chassis, Voltage Monitor on Vcore/5V/12V, Fan Monitor on CPU/Chassis |
| WatchDog Timer | 1~255 steps by software program |
| Smart Fan Control | CPU Fan/ Chassis Fan |
| Wake On LAN/ PXE | Yes (WOL / PXE) |
| Power State | S3, S4, S5 |
| Graphics | |
| Graphics Chipset | Intel® UHD Graphics |
| HDMI | Up to 4096 x 2304@24Hz (HDMI 1.4b) |
| Display Port | Up to 4096 x 2304@60Hz |
| LVDS | Up to 1920 x 1200 @ 60 Hz, dual-channel 18/24 bit (via CH7511) |
| eDP | UP to 4096 x 2304 @ 60Hz |
| Backlight Control | Voltage/PWM |
| Environment & Power & ME | |
| Power Requirement | 12V DC |
| Operation Temperature | 32°F ~140°F (0°C ~ 60°C) |
| Storage Temperature | -40°F ~185°F (-40°C ~85°C) |
| Operation Humidity | 0%~90%RH, non-condensing |
| Certificate | CE & FCC |
| Form Factor | Mini-ITX: 6.7” x 6.7” (170mm x 170mm) |
| Weight | 1.1 lb (0.5 Kg) |
| MTBF (Hours) | 246,210 |

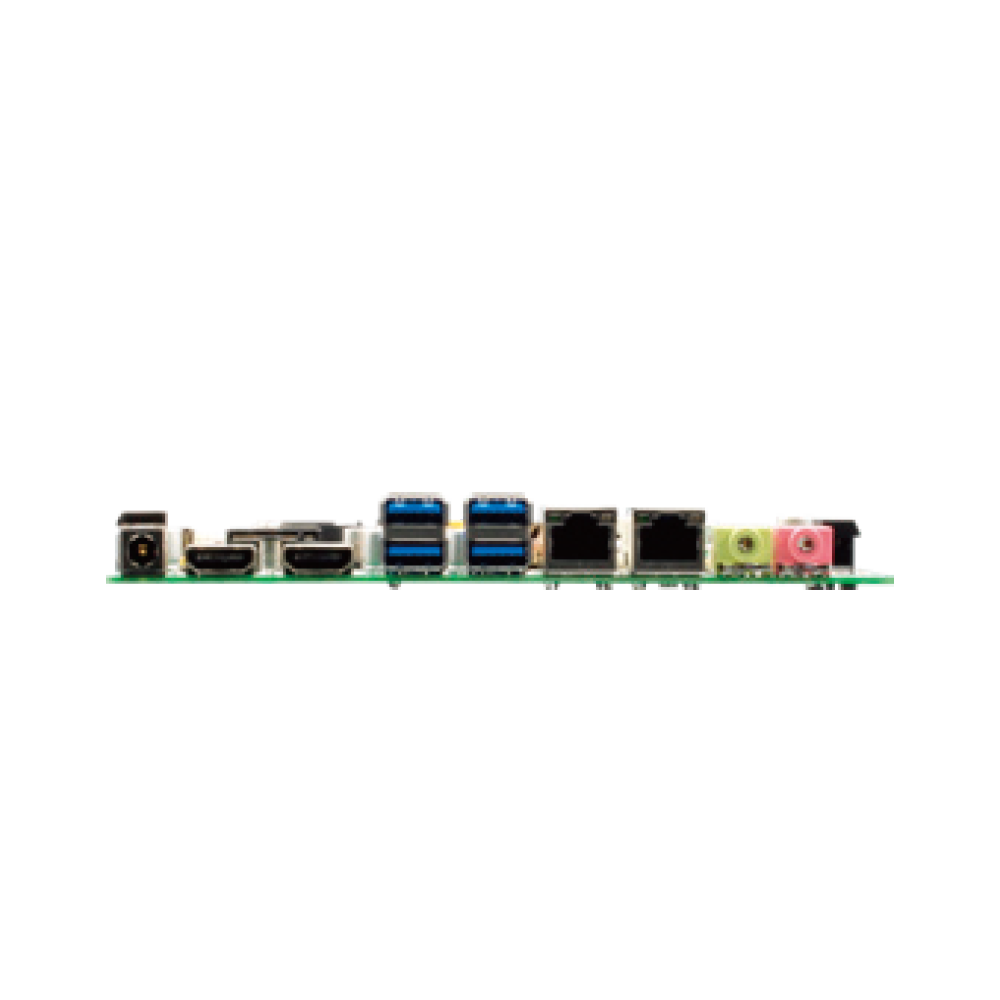

| Rear Panel I/O Ports | |
| USB | USB 3.2 Gen 1 (5 Gbps) x 4 |
| Display I/O | DP x 1 + HDMI x 1 |
| Audio I/O | Mic-in x 1, Line-out x 1 |
| LAN I/O | LAN (RJ-45) port x 2 |
| Others | DC Jack |
