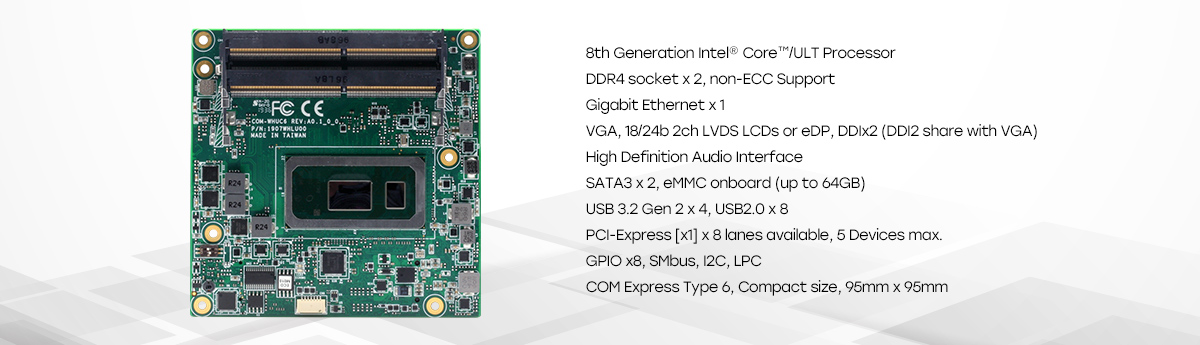

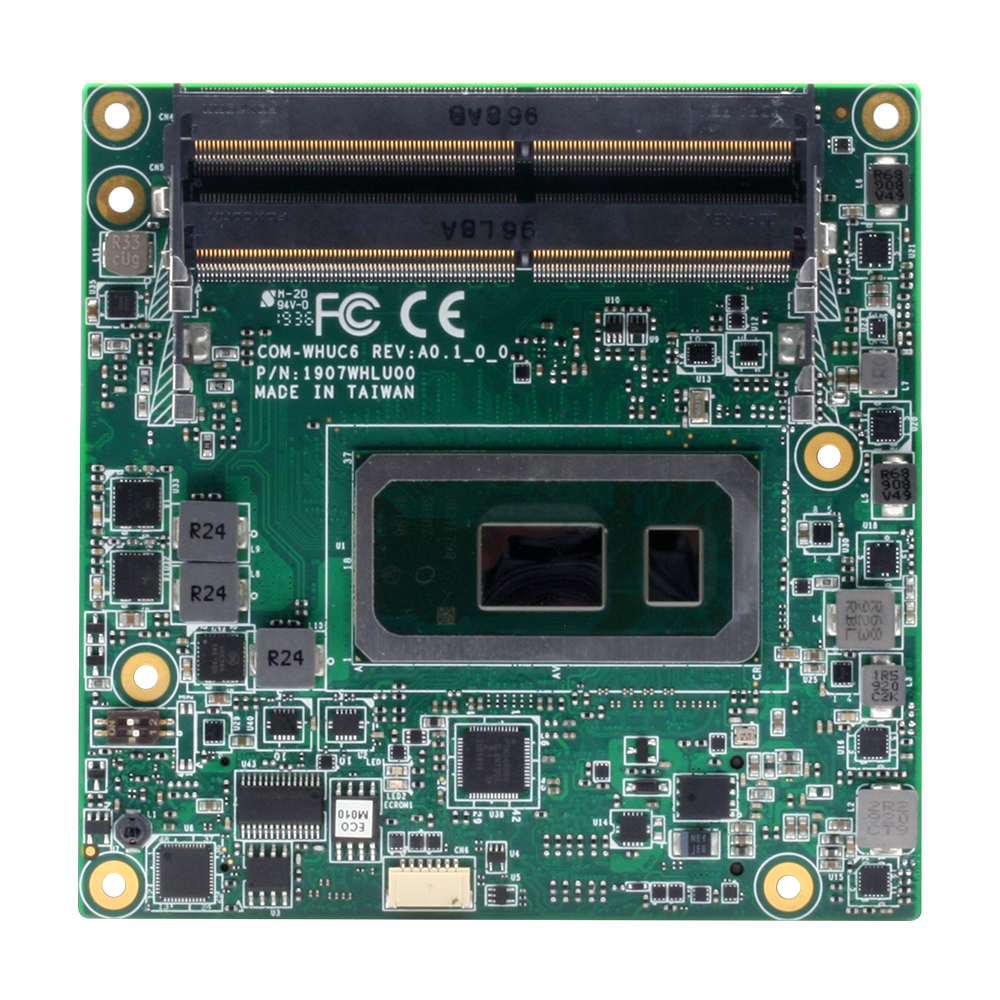

COM-WHUC6

COM Express Compact Type 6 with 8th Gen Intel® Core™ ULT SoC

Product Feature

  • 8th Generation Intel® Core™/ULT Processor
  • DDR4 socket x 2, non-ECC Support
  • Gigabit Ethernet x 1
  • VGA, 18/24b 2ch LVDS LCDs or eDP, DDIx2 (DDI2 share with VGA)
  • High Definition Audio Interface
  • SATA3 x 2, eMMC onboard (up to 64GB)
  • USB 3.2 Gen 2 x 4, USB2.0 x 8
  • PCI-Express [x1] x 8 lanes available, 5 Devices max.
  • GPIO x8, SMbus, I2C, LPC
  • COM Express Type 6, Compact size, 95mm x 95mm

Features

1 6

Specifications

System
Form Factor COM Express Compact size, 95mm x 95mm
CPU 8th Generation Intel® Core™ ULT Series Processor
Chipset Onboard 8th Generation Intel® Core™ SoC
Memory Type SO-DIMM DDR4 2400 Socket x2
Max. Memory Capacity Up to 64GB
BIOS AMI BIOS, Legacy free BIOS
Wake on LAN Yes
Watchdog Timer 255 Levels
Power Requirement Standard: +12V
Power Supply Type AT/ ATX Mode
Power Consumption
(Typical)
12V, estimate 18W with i7-8655UE @ 100% loading
Dimension (L x W) 3.75” x 3.75” (95mm x 95mm)
Operating Temperature 32°F ~ 140°F (0°C ~ 60°C), -4°F ~ 158°F (-20°C ~ 70°C) for WiTAS 1
Storage Temperature -40°F ~ 176°F (-40°C ~ 80°C)
Operating Humidity 0% ~ 90% relative humidity, non-condensing
Certification CE/FCC
Display
VGA/LCD Controller Intel® UHD Graphics 620 / 610
Video Output DDI0: LVDS, (eDP by BOM change)
DDI1: Display Port
DDI2: Default VGA, (DP by SW1&2 selected)
LVDS Interface Support 18-bit and 24-bit dual channel
I/O
Ethernet Intel® I219 GbE x 1
Audio HD Audio x 1
USB Port USB 2.0 x 8, USB 3.2 Gen 2 x 4
Serial Port 2-wire UART x 2 (TX/RX)
HDD Interface SATA3 x 2 as default (up to 3)
Onboard Storage eMMC x 1 (up to 64GB)
Expansion Slot PCIe[x1] x 4 + PCIe[x4] x 1 (default), I2C, LPC, SMBus
GPIO 8 Bit
