MATE2-2412

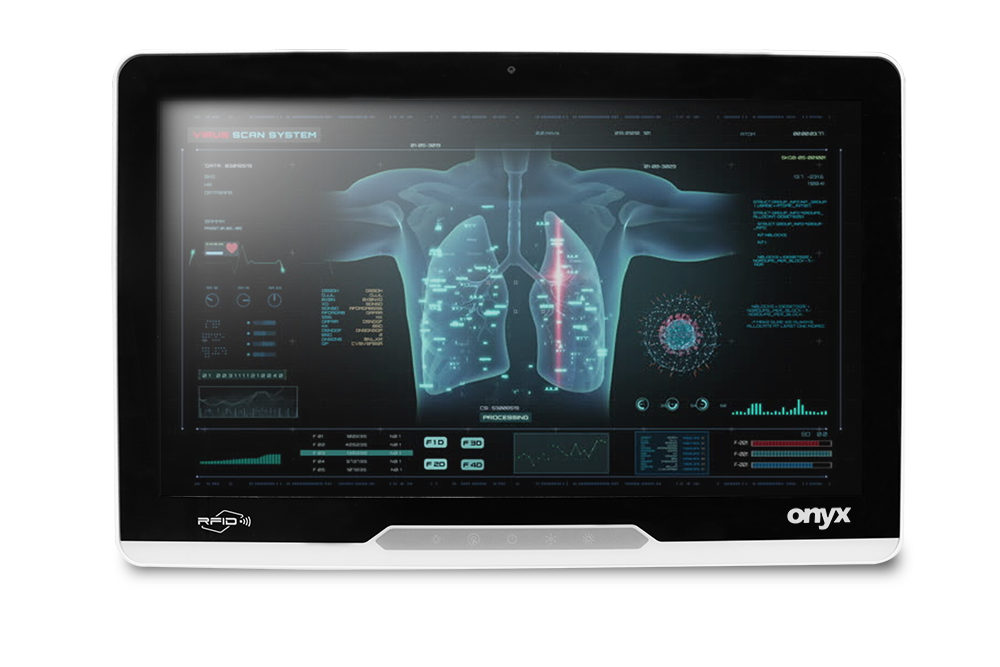

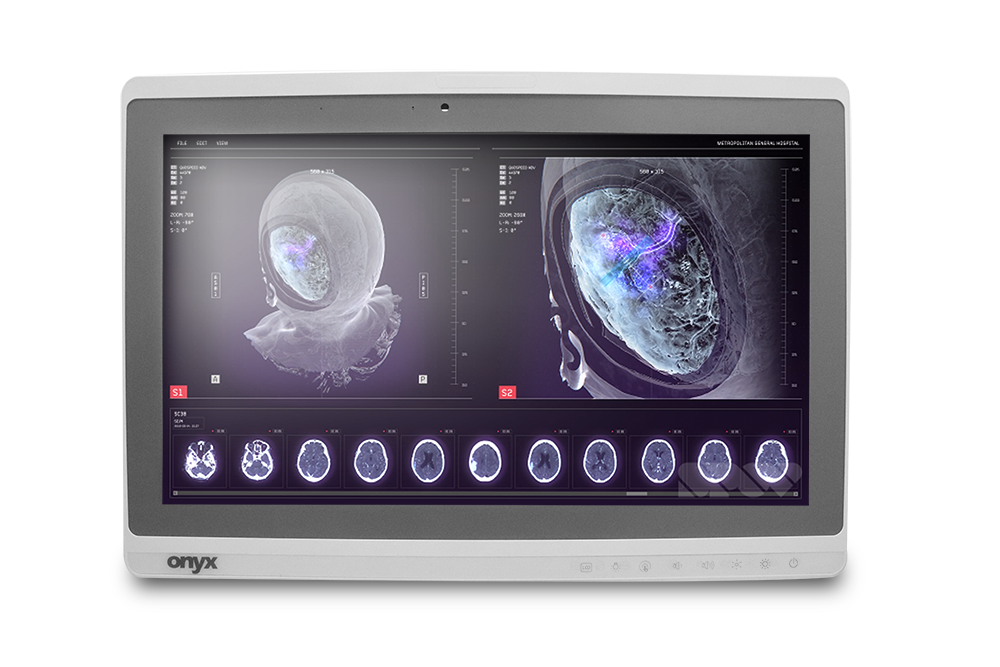

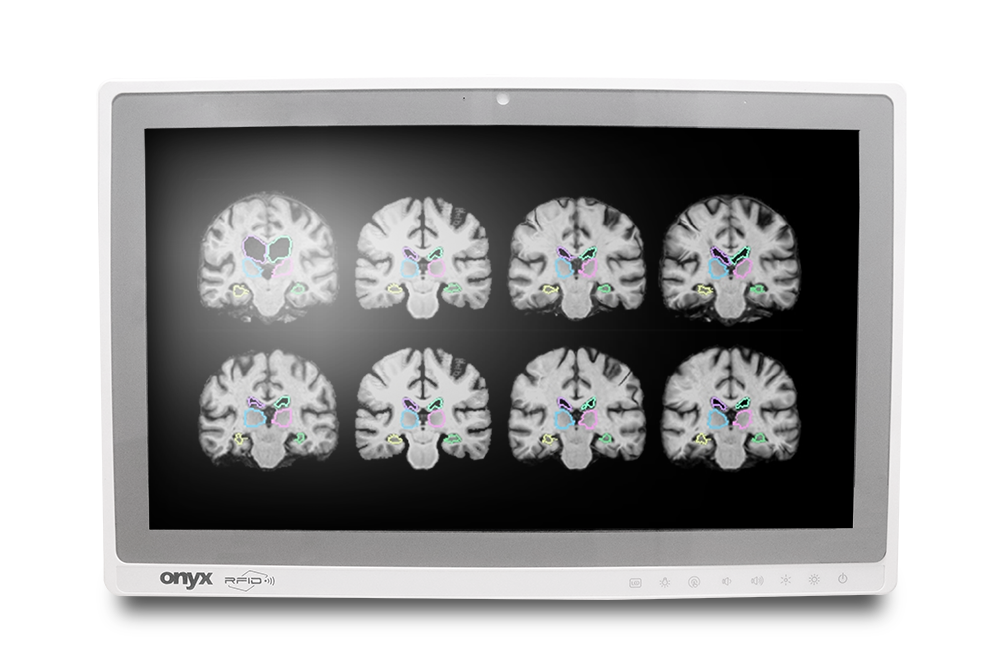

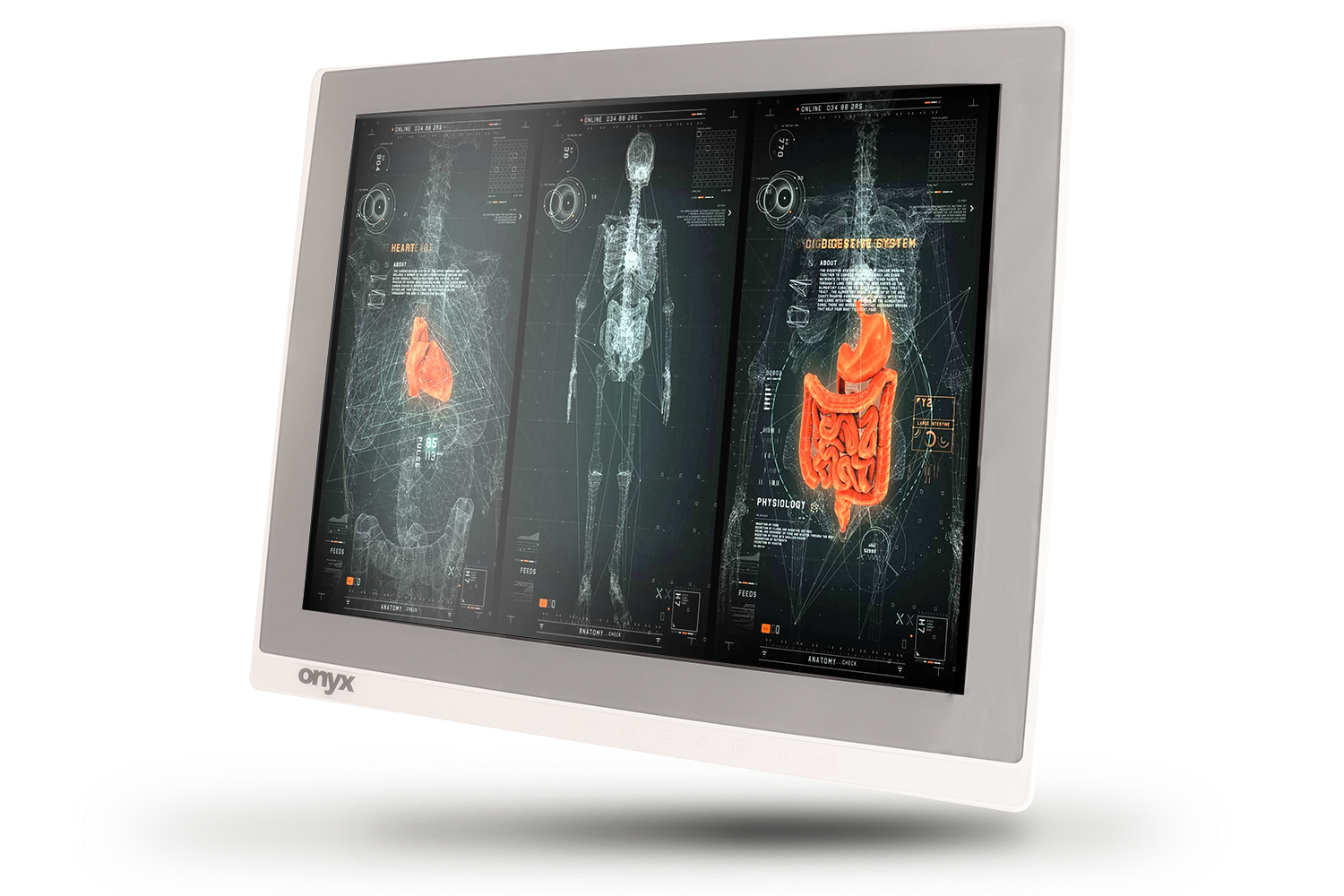

24” Fanless 13th Generation Core i9 Powerful Medical All in One PC
Product Feature
- Intel® 13th Generation Core™ i9/ i7/ i5 /i3 Processor
- Supports Dual Channel DDR5 5600/4800 SODIMM up to 64GB
- 24" Full HD Wide Viewing Angle LCD
- Capacitive Multi-Touch Screen
- Two Gigabit Ethernet
- High Speed USB 3.2 Gen2 Ports
- RS-232 x 2
- 8MP Camera with Mic (optional)
- PCI Express [x4] / [x1] x1 (optional)
- Imprivata RFID Reader (optional)
- Reading Light
Features
1
6
Specifications
| Main Specifications | |
| Processor |
Intel 13th Generation Core i9-13900TE 24 Cores 5.00GHz Intel 13th Generation Core i7-13700TE 16 Cores 4.80GHz Intel 13th Generation Core i5-13500TE 14 Cores 4.50GHz Intel 13th Generation Core i3-13100TE 4 Cores 4.10GHz |
| System Memory | Supports Dual Channel DDR5 5600/ 4800 SODIMM up to 64GB |
| Expansion Interface | PCI Express[x4]/[x1] x1 (optional) |
| OS Support | Windows® 10, Windows® 11, Linux® |
| Storage Disk Drive |
M.2 2280 SATA SSD x 1 2.5" SATA Hard Disk Drive/SSD x 1 (optional) |
| Security |
Trusted Platform Module 2.0 , Imprivata RFID Reader (optional) |
| Wireless Communication |
802.11 ac/a/b/g/n(optional), 802.11 ax (optional), Bluetooth 5 (optional) |
| Speaker | 2W x 2 |
| Function Key |
LCD Brightness Up/Down, Touch Screen On/Off, Reading Light On/Off |
| Power Requirement | AC 100~240V / DC 12V |
| Display | |
| Size | 24" LCD |
| Max. Resolution | 1920 x 1080 |
| Luminance(cd/m2)(TYP) | 250 nits |
| View Angle | 178˚(H)/178˚(V) |
| Contrast Ratio | 3000:1 |
| Back Light Life Time | 30,000 Hours |
| Touch Screen | Capacitive Multi-Touch |

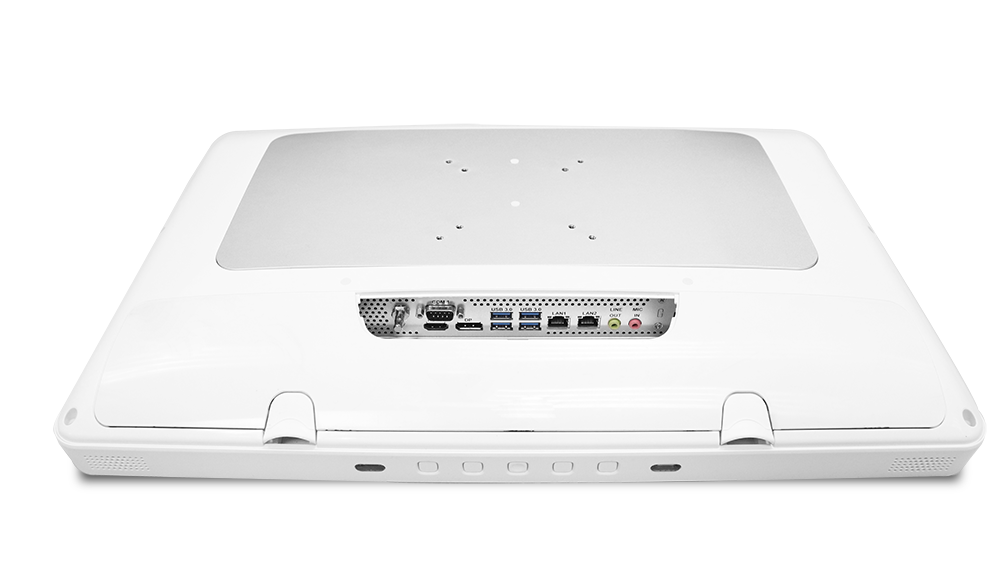

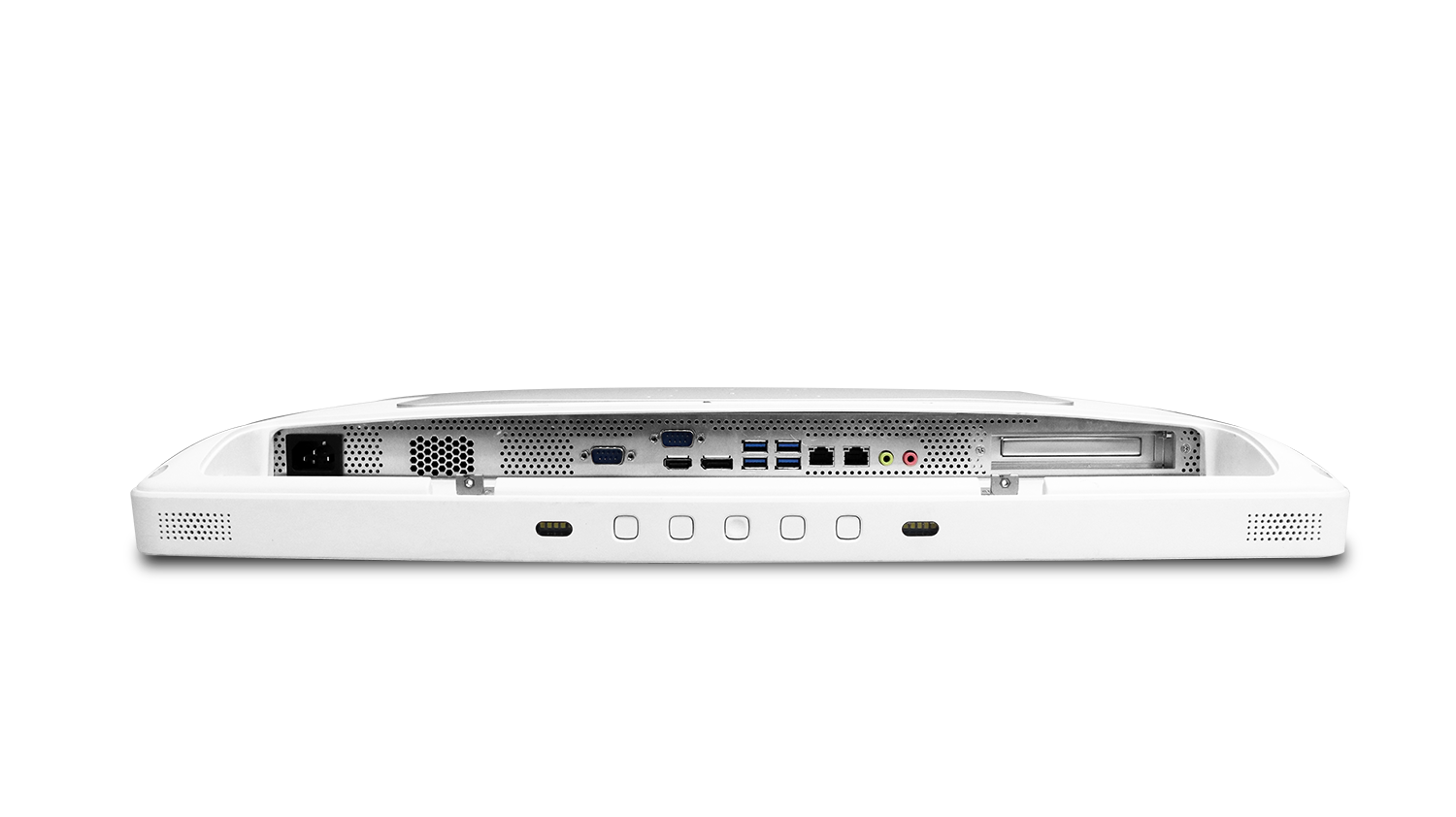

| I/O | |
| USB | USB 3.2 Gen 2 x 2 ,USB 3.2 Gen1 x2 |
| Serial Port | RS-232 x 2 or x1 |
| Ethernet | 1.5KV Isolated Gigabit LAN x 2 |
| Video Out |
HDMI 2.0 x 2 (Supports resolution up to 3840 x 2160) |
| Audio | Mic-in, Line-out |
| Mechanical and Environmental | |
| Operating Temperature | 0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |

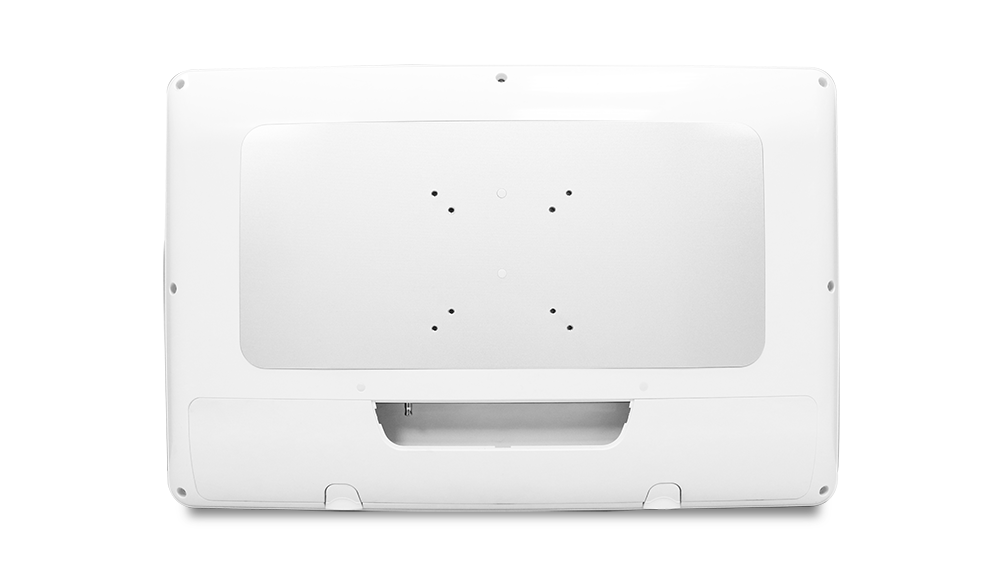

| Mounting VESA | 75/100 mm |
| Degree of protection | IP65 in the front ; IP54 in the back |
| Dimension | 586 x 381 x 67mm |
| Package Size | 755 x 195 x 528mm |
| Gross Weight | 14kg (30.86 lb) |
| Net Weight | 8.7 kg (19.2 lb) |
| Certifications |
CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013(V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) |
