Venus-123

11.6” Intel i7/i5/i3 medical panel PC with Dual Battery

Product Feature

  • Medical Panel PC
  • Highest level of medical safety protection , EMC4.0/ Safety 3.1
  • Cleanability with hospital solvents
  • Hot swappable design, support 24/7 run time
  • Intel® Skylake Dual-Core i5
  • Support remote monitor/control/update (ORION compatible)
  • isolated LAN / COM port
  • IP54
  • TAG RFID
  • Swap
  • EN/UL 60601-1
  • Fan-less
  • SDK
  • creative design
  • SIAA

Features

1 6

Specifications

Main Specifications
Processor Intel® Skylake Dual-Core i5 /Celeron 3955U
System Memory DDR4 up to 16GB
OS Support Microsoft® Windows 7
Microsoft® Windows 8.1
Microsoft® Windows 10
Ubuntu 18.04 LTS
IGEL (thin client solution)
Graphics Intel® HD Graphics 520
Storage M.2 SSD up to 512GB (optional)
Wireless Communication 802.11 ac/a/b/g/n + BT 4.0 (optional)
Touch Project Capacitive Touch / Resistive Touch
Speaker 2W x2
Security TPM 2.0
Display
Display Size 11.6”
Max. Resolution 1366 x 768
Luminance(cd/m2)(TYP) 250nits
Max. Colors 262K
Contrast Ratio 500:1

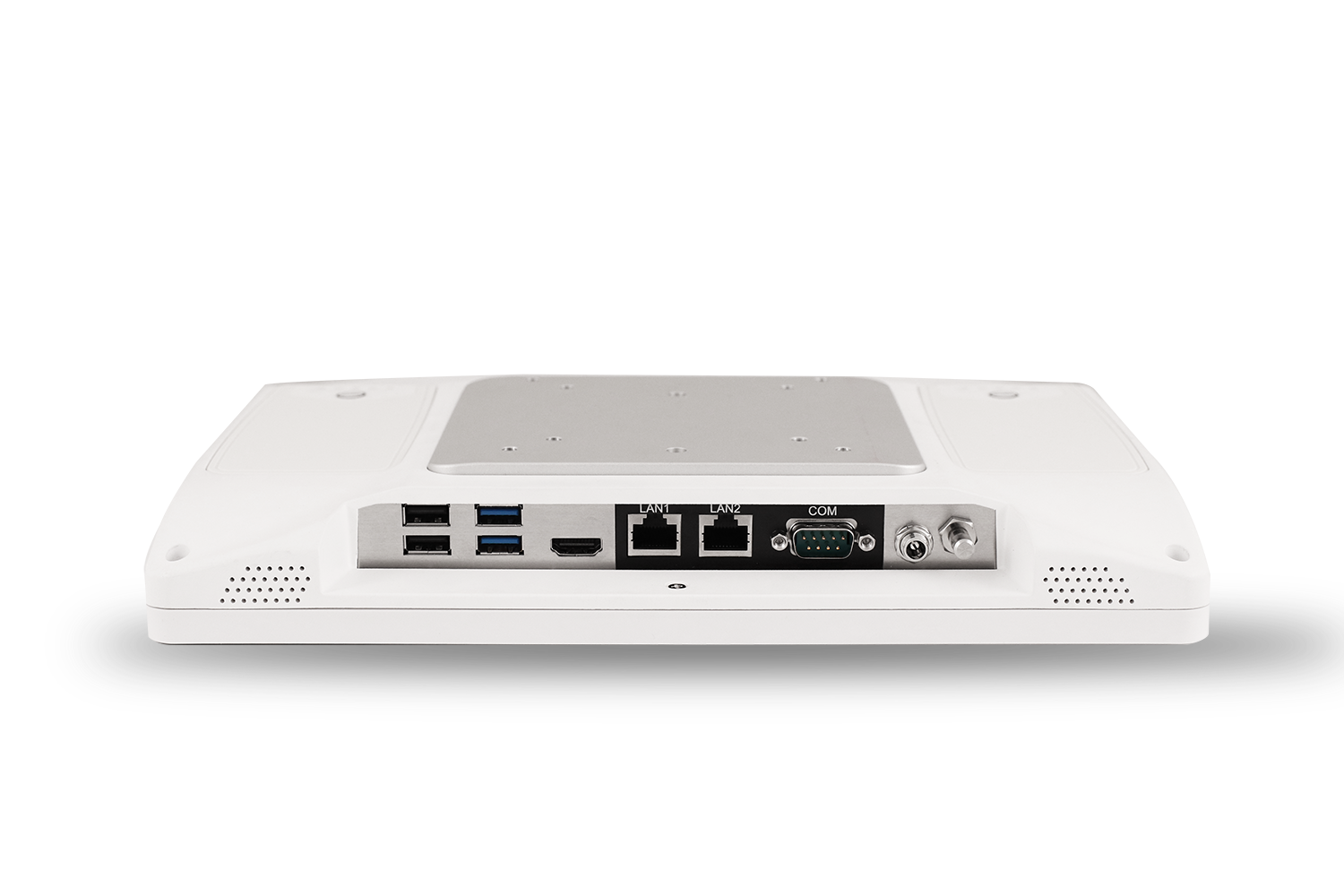

I/O
USB USB 3.0 x2, USB 2.0 x2
Video Out HDMI out x1
COM COM port x1
Ethernet Gigabit LAN x 2
DC-in 12V DC-in x1
Mechanical and Environmental
VESA 75/100 mm VESA mount
Operating Temperature 0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Storage Humidity 10%~95%@40°C, non-condensing
Degree of Protection Front Panel: IP65 ; Rear: IPX1
Dimension 300(L) x 43(W) x 205(H) mm
Net Weight 1.9kg
Gross Weight 2.6 Kg
Package Dimension
(W x D x H)
420(L) x 185(W) x 345(H) mm
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/ A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)





Video

Downloadable Contents
