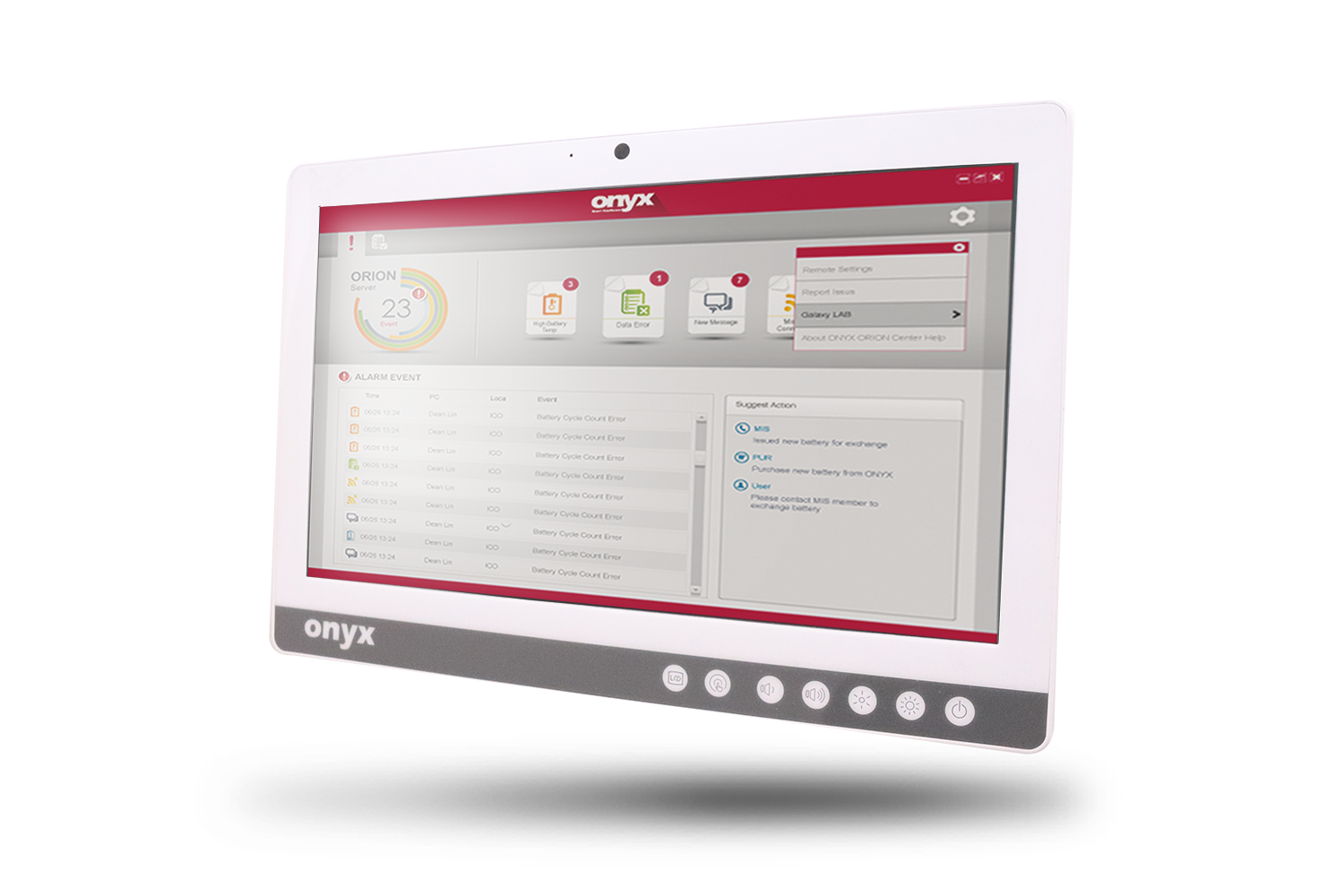

Venus-243
23.8” Dual Hot Swappable Battery Medical Cart Computer
製品機能
- Medical Cart Computer
- Highest level of medical safety protection , EMC4.0/ Safety 3.1

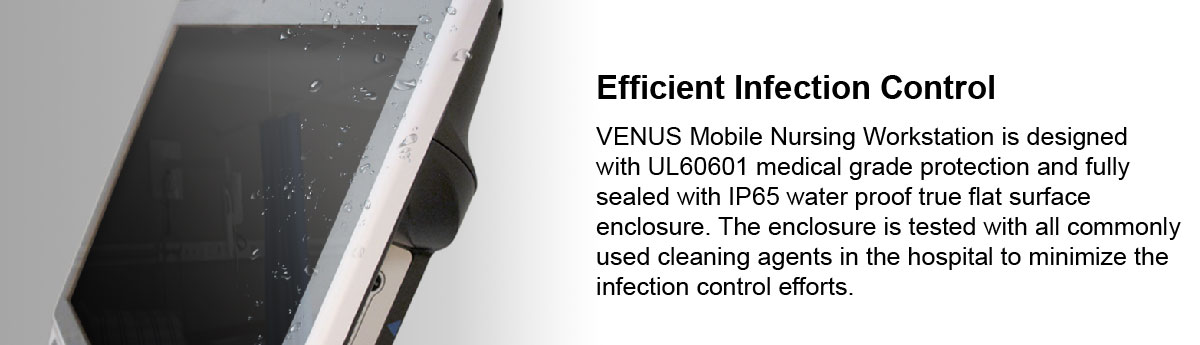

- Cleanability with Hospital Solvents (front IP65)

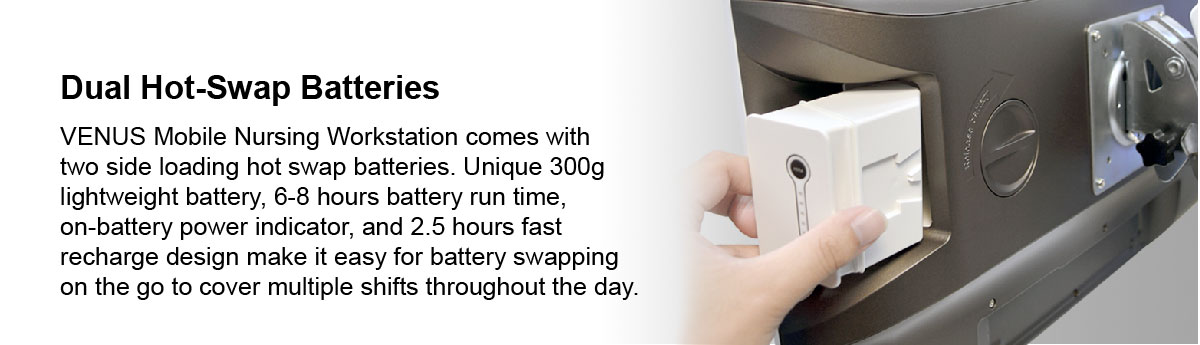

- Hot swappable design, support 24/7 run time
- Intel® Skylake Dual-Core i5 /i7
- Support remote monitor/control/update (ORION compatible)
- Lightweight design

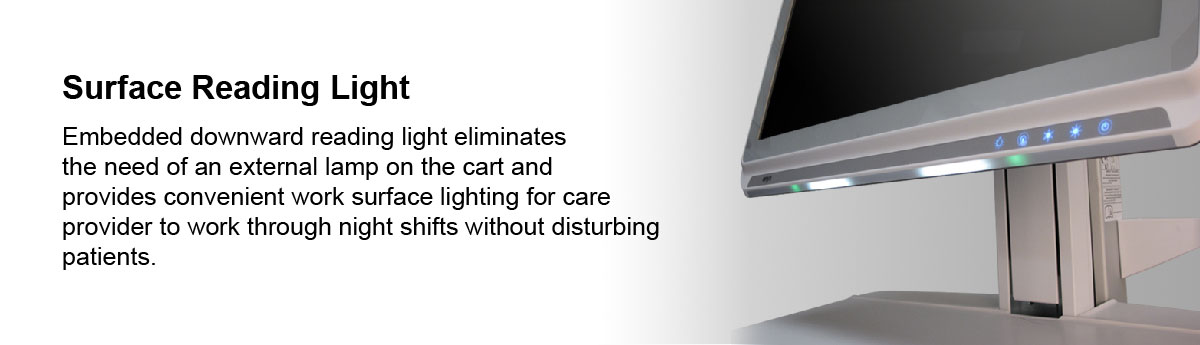

- Front reading light bar
機能
1
6
仕様
| Main Specifications | |
| Processor | Intel® Skylake Dual-Core i5 / i7 , Celeron 3955U |
| System Memory | DDR4 up to 32GB |
| OS Support |
Microsoft® Windows 7 Microsoft® Windows 8.1 Microsoft® Windows 10 Ubuntu 18.04 LTS IGEL (thin client solution) |
| Grahpics | Intel® HD Graphics 520 |
| Storage | SSD up to 512GB (optional) |
| Wireless Communication | 802.11 ac/a/b/g/n + BT (optional) |
| Touch | PCT |
| Speaker | 2W x2 |
| Security |
TPM 2.0 (Trusted Platform Module), |
| Display | |
| Display Size | 23.8” VA panel |
| Resolution | 1920 x 1080 |
| Max. Colors | 16.7M |
| Contrast Ratio | 3000:1 |
| Luminance (cd/m2) | 250 |
| I/O | |
| USB |
Rear I/O: USB 3.0 x 2, USB 2.0 x 2 Side I/O : USB 3.0 x2 |
| Video Out | HDMI out x1 |
| COM | COM port x1 |
| Audio | Combo audio port x1 |
| Security | Kensington slot |
| Ethernet | Gigabit LAN x1 |
| DC-in | 24V DC-in x1 |
| Mechanical and Environmental | |

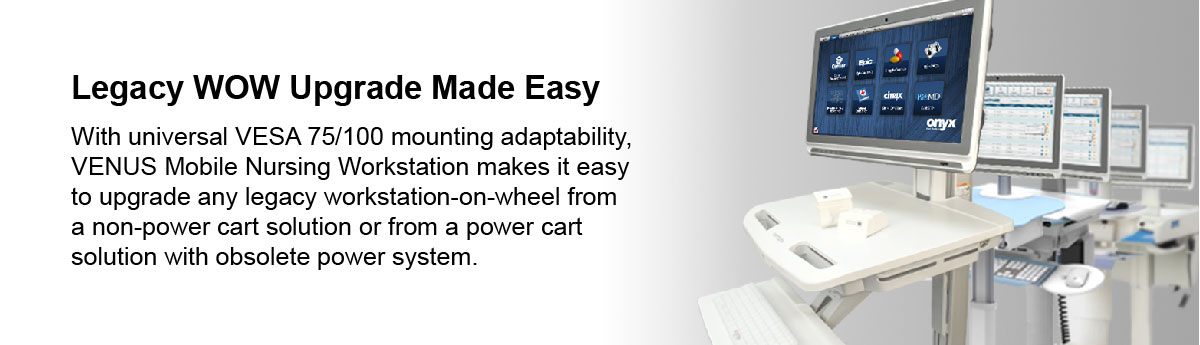

| VESA | 75/100 mm VESA mount |
| Operating Temperature | 0°C ~ 40°C(32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Storage Humidity | 10%~95%@35°C, non-condensing |
| Degree of Protection | Front Panel: IP65 ; Rear: IPX1 |
| Dimension | 607(L) x 78(W) x 404(H) mm |
| Net Weight without Battery | 8kg (17.6 lbs) |
| Packing Size | 730(L) x 240(W) x 550(H) mm |
| Gross Weight | 12kg (26.5 lbs) |
| Certifications |
CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/ A1:2013(V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) |
