ACCEL-JS2000
NVIDIA IGX platform for Medical AI imaging application
製品機能
- NVIDIA IGX Orin Industrial Module with 250 TOPS AI Performance
- Support RTX 6000 Ada GPU card with up to 1700 TOPS AI Performance
- ConnectX-7 High Speed Edge Networking 2 x 100Gbe
- Dedicated MCU to reassure the functional safety
- Built-in BMC controller to provide a standard-based interface to system management and recovery
- System Power design with 700W Medical PSU
- Excellent thermal management to maximize the performance and lower the noise
- 4K SDI capture card integration (Optional)

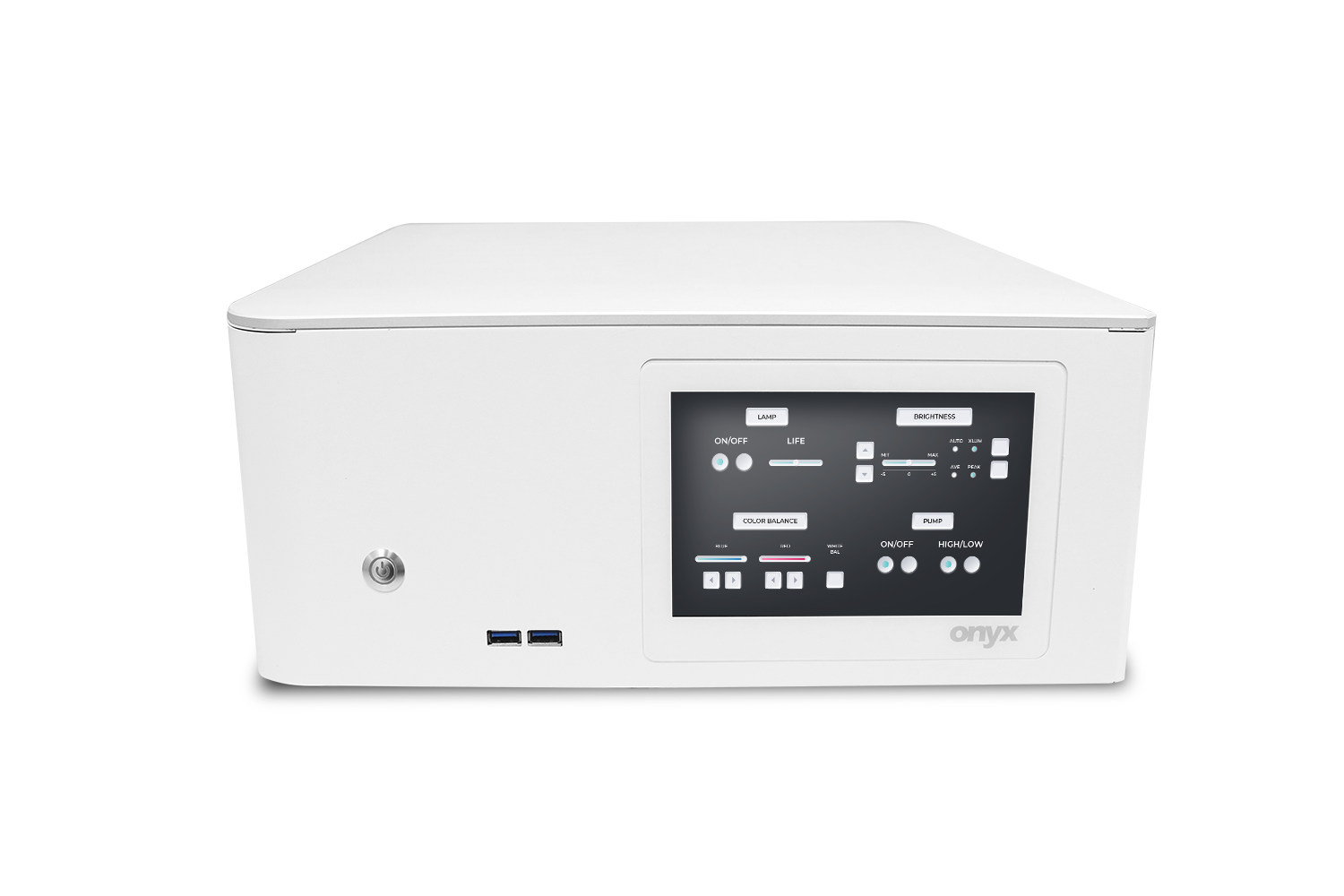

- support optional 7" front screen
- Long Life cycle Support
- Medical Certification
機能
仕様
| Main Specifications | ||
| AI Engine | NVIDIA IGX Orin Soc Industrial Module | |
| CPU | 12-core Arm® Cortex®-A78AE v8.2 | |
| System Memory | 64GB 256-bit LPDDR5 204.8 GB/s | |
| Graphics | 2,048-core NVIDIA Ampere architecture with 64 Tensor Cores | |
| Storage | M.2 NVMe SSD x 1 | |
| 2.5" SATA SSD x2 | ||
| 64GB eMMC 5.1 | ||
| OS support | IGX-SW 1.1 | |
| Front Screen (Optional) | 7" LED Panel with P-Cap Touch , 400nits, 1280 x 800 | |
| Safety | Infineon Aurix TC397 | |
| NVIDIA BMC |
Aspeed AST2600 Microchip ERoT |
|

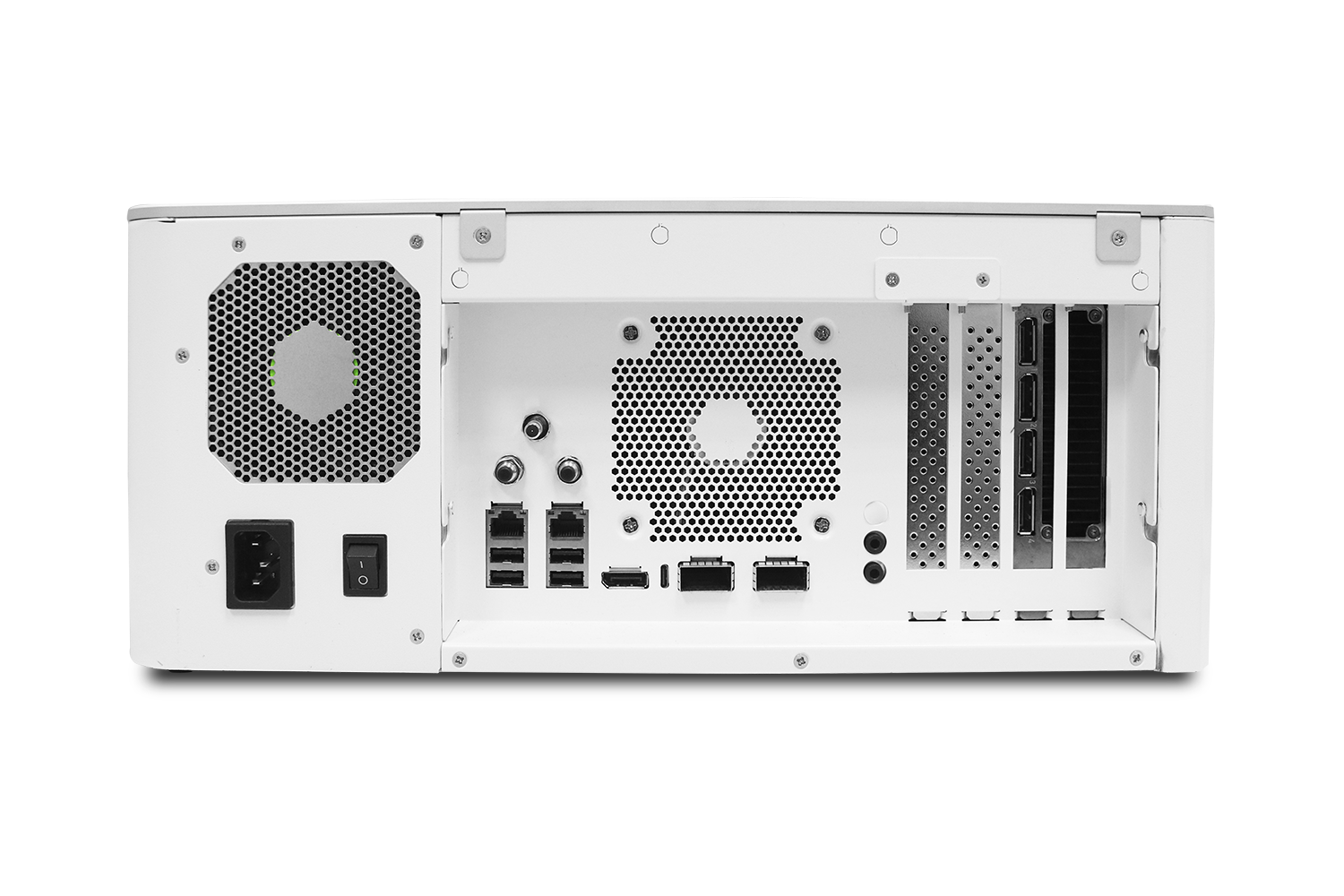

| I/O | ||
| USB |
4 x USB 3.2 Gen 2 Type A 1 x USB 3.2 Gen 2 Type C |
|
| Ethernet |
2 x 100GbE QSFP28 ports |
|
| Video Out | 1 x Display Port 1.4a | |
| Video input (Optional) |
1 x 12G SDI +1 x HDMI 2.0 |
|
| Audio | 3 x 3.5mm AU Jacks(MIC, Line-in and Speaker out) | |
| Serial Port | 2 x COM Port | |
| Function Port | Grounding pin x 1 | |
| Front I/O |
1 x Power Button with Power LED indicator 2 x USB 2.0 Type A |
|
| Wireless Communication |
1 x M.2 Key E Key for Wireless Module 1 x M.2 Key B for 5G/LTE module |
|
| Expansion I/O |
1 x PCIe Gen5 Double Width Slot (x16) for A6000 1 x PCIe Gen5 Single Width Slot (x8) |
|
| Environment and Mechanical | ||
| Power | 100V to 240V AC Input, 700W Medical Power Supply | |
| Operating temperature | 0°C ~ 35°C(32°F ~ 95°F) | |
| Storage temperature | -20°C ~ 60°C(-4°F ~ 140°F) | |
| Dimension | 400 x 166 x 407 mm | |
| Package Size | 560 x 305 x 628 mm | |
| Gross Weight | 14 kg | |
| Net Weight | 12 kg | |
| Certifications |
CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013/A12:2014 (V3.1) FCC: Part 18 Class B, Part 15 Class B, UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) |
|
