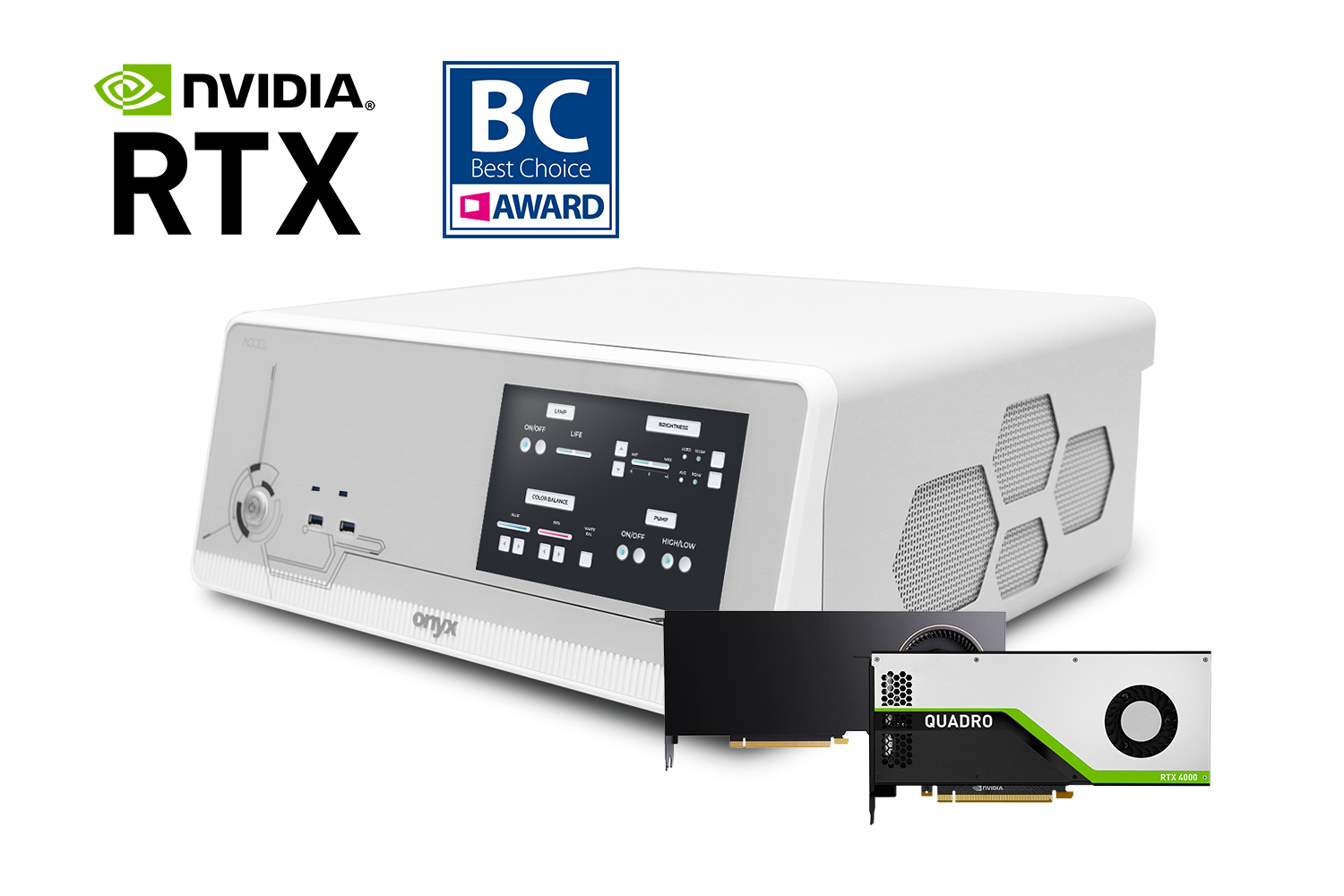

ACCEL-A2203
22” Medical AI Accelerator with NVIDIA Ampere MXM Graphics
製品機能
- NVIDIA RTX A1000/A2000/A4500 MXM Graphics
- Intel® 13th generation Core™ i9/ i7/ i5 / i3 Processor
- Supports Dual Channel DDR4 3200 SODIMM up to 64GB
- 22" Full HD High Contrast LCD
- Capacitive Multi-Touch Screen
- Two Gigabit Ethernet
- High Speed USB 3.2 Gen2 Ports
- RS-232 x 2
- 8MP Camera with Mic (optional)
- Imprivata RFID Reader (optional)
機能
1
6
仕様
| Main Specifications | |
| Processor | Intel® 13th Gen Core i9-13900TE 24 Cores up to 5.0Ghz |
| System Memory | Supports Dual Channel DDR4 3200 SODIMM up to 64GB |
| Expansion | M.2 2280 M Key x1 |
| OS Support | Windows® 10, Windows® 11, Linux® |
| Grahpics | NVIDIA RTX A1000/A2000/A4500 |
| Storage | 2.5” SATA Hard Disk Drive/SSD x 1 |
| Wireless Communication |
802.11 ac (optional), 802.11 ax (optional), Bluetooth 5 (optional) |
| Function Key | Power on/Off |
| Speaker | 2W x 2 |
| Security |
Trusted Platform Module 2.0 , Imprivata RFID Reader (optional) |
| Power Requirement | 12V 250W Power Adapter |
| Display | |
| Size | 22” LCD |
| Resolution | 1920 x 1080 |
| View Angle | 178˚(H)/178˚(V) |
| Contrast Ratio | 1000:1 |
| Luminance (cd/m2) | 250 |
| Back Light Life Time | 50,000 Hours |
| Touch Screen | Capacitive Multi-Touch |
| I/O | |
| USB | USB 3.2 Gen2 x2, USB 2.0 x2, USB 3.2 Type C x 1 |
| Serial Port | RS-232 x 2 |
| Ethernet | 2.5 Gigabit LAN x2 |
| Video Out | Display Port 1.4 x2, HDMI 2.0b x1 |
| Audio | Mic-in, Line-out |
| Mechanical and Environmental | |
| Operating Temperature | 0°C ~ 35°C(32°F ~ 95°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Mounting VESA | 75/100 mm |
| Degree of Protection | IP65 in the front ; IPX1 in the back |
| Dimension | 542 x 355 x 67mm |
| Packing Size | 711 x 195 x 503mm |
| Gross Weight | 14 kg (30.86 lb) |
| Net Weight | 7.5 kg(16.5 lb) |
| Certifications |
CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/A1:2013(V3.1) FCC: Part 18 Class B UL: ANSI/AAMI ES60601-1:2012 (V3.1) cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1) |
