ACCEL-A2203 22 inch Medical AI Panel PC with NVIDIA Ampere MXM Graphics
Onyx is proud to introduce the latest addition to our Accel series of medical panel pc, the ACCEL-A2203.
The ACCEL-A2203 is a 22” Medical AI Accelerator supporting a Intel® Core™ i7 processor with 8 cores and Intel® Turbo Boost that can speed up the CPU to 3.80 GHz. One MXM slot provides support for high-end graphics cards such as NVIDIA Ampere RTX A2000 and RTX A4500 for AI Acceleration. The 22” FHD display offers 1920 x 1080 resolution, 1000:1 high contrast ratio and 178-degree wide viewing angle both vertically and horizontally for maximum viewing comfort and convenience. The 10-finger capacitive multi-touch screen is guaranteed to work even with double OR glove use, has a 10 billion click life and up to 95% transparency rate. Express[x4] slot is provided to support a 4K UHD video capture card. With the latest high-end specifications included into one medical AI Accelerator solution, the ACCEL-A2203 medical panel pc is certainly one powerhouse of a medical AI pc that you need.
The ACCEL-A2203 is a 22” Medical AI Accelerator with an MXM slot to support high-end graphics cards such as NVIDIA’s Ampere RTX A4500 and RTX A2000 for AI acceleration and features FHD 1920x1080 resolution, a 1000:1 high contrast ratio and 178 degrees wide vertical and horizontal viewing angle, an Intel® Core i7 8-Core processor with Turbo Boost up to 3.80GHz, and a PCI Express x4 slot to support 4K UHD video capture card for HDMI/DVI/SDI video input. With all these features, the ACCEL-A2203 is one powerhouse of a Medical AI Accelerator that you need.
Hasan Jouni
EMEA Senior Partner Manager, Healthcare and Life Sciences
NVIDIA
NVIDIA Ampere RTX A4500 / RTX A2000 MXM Graphics Card
Provides MXM slot to support high-end graphics cards such as NVIDIA Ampere RTX A4500 and RTX A2000 for AI Acceleration.
.jpg)

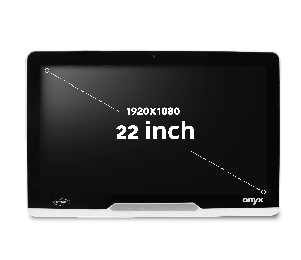

22” High Contrast and Wide Viewing Angle FHD LCD
22” FHD 1920x1080 resolution, 1000:1 high contrast ratio and 178 degrees wide viewing angle in both vertical and horizontal.
Intel® Core i7 8-Core Processor up to 3.80GHz
Supports Intel® Core i7 8-Core Processor with Turbo Boost up to 3.80GHz.
SDI 3G / 12G
ACCEL-A2203 provides SDI video input including 3G and 12G SDI, since SDI interface is the most common use in all kind of medical device in operating room. the video input interface can be used to capture image or video to do AI computing and analysis.
PCI Express Video Capture Card with HDMI/DVI/SDI Input
Provides PCI Express[x4] slot to support 4K UHD video capture card to reach HDMI / DVI / SDI Video input.
