Venus-243

24” 24/7 Mobile Power Workstation

Product Feature

  • Highest level of medical safety protection , EMC4.0/ Safety 3.1
  • Cleanability with Hospital Solvents (front IP65)

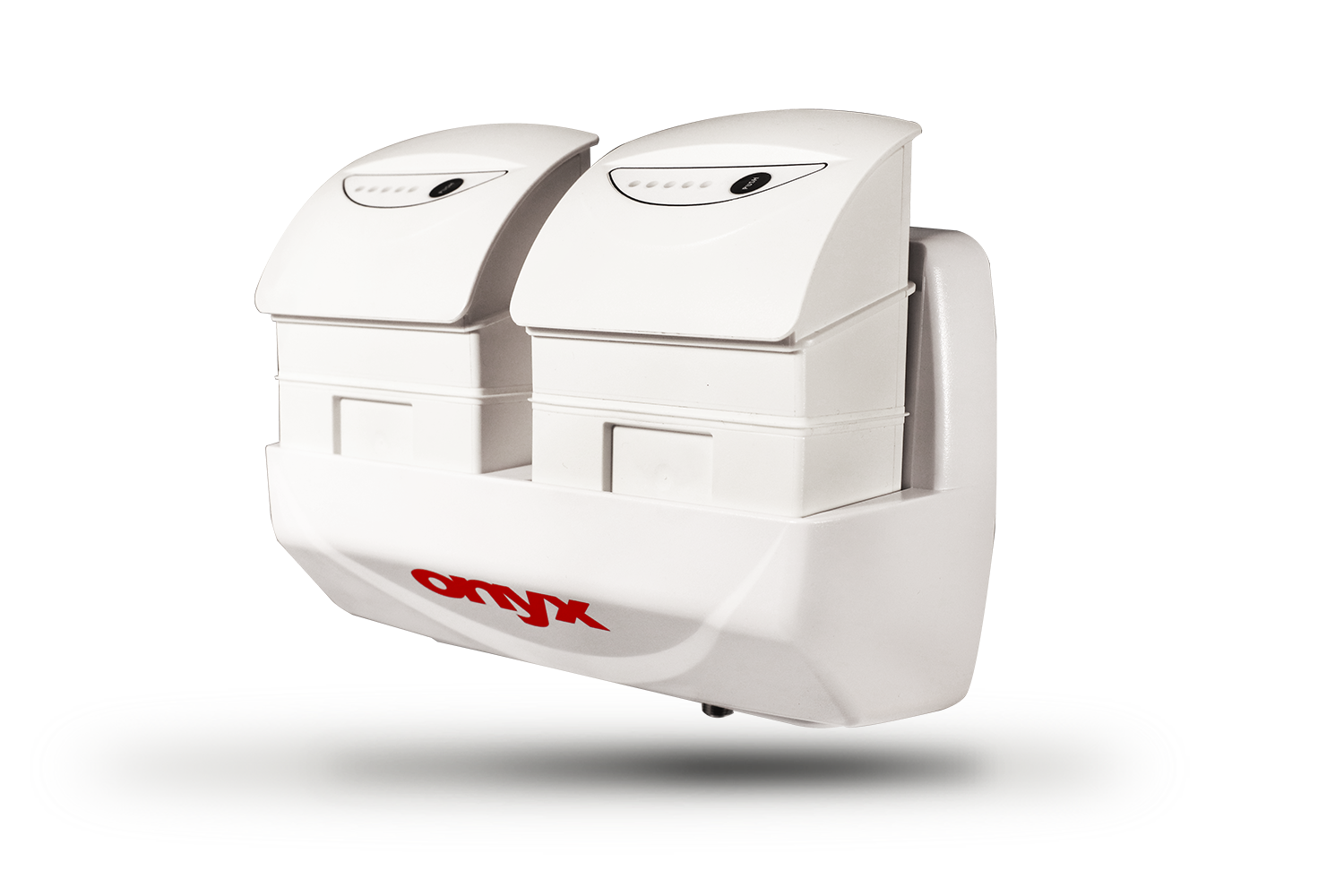

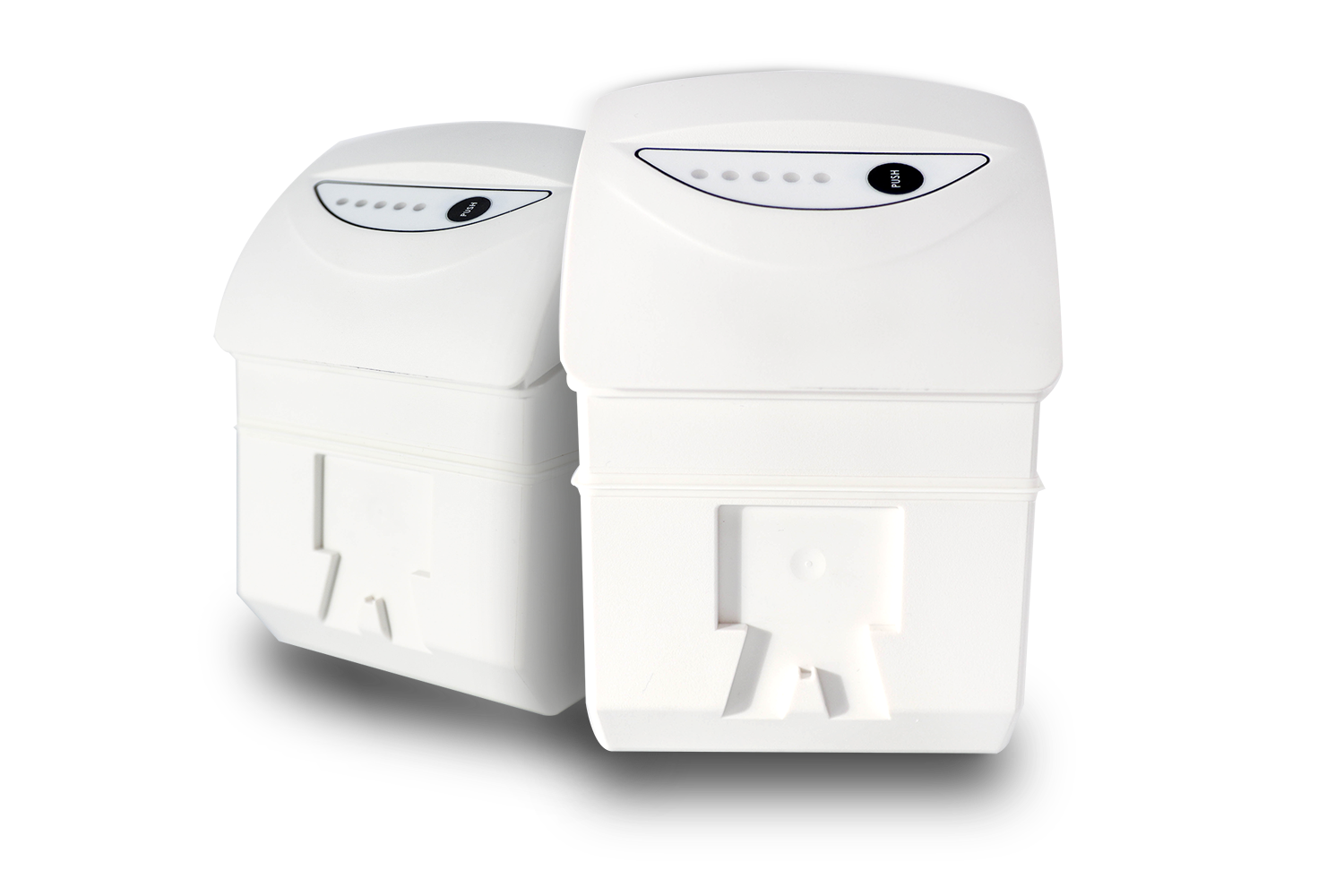

  • Hot swappable design, support 24/7 run time
  • Intel® Skylake Dual-Core i5
  • Support remote monitor/control/update (ORION compatible)
  • Lightweight design
  • HDMI
  • Front reading light bar
  • IP54
  • TAG RFID
  • Swap
  • EN/UL 60601-1
  • Fan-less
  • POE
  • SDK
  • creative design

Features

Specifications

Main Specifications
Processor Intel® Skylake Dual-Core i5 / i7
System Memory DDR4 up to 32GB
OS Support Microsoft® Windows 7 (32/64bit)
Microsoft® Windows 8.1 (64bit)
Microsoft® Windows 10 (64bit)
Ubuntu 18.04 LTS
IGEL (thin client solution)
Grahpics Intel® HD Graphics 520
Storage SSD up to 512GB (optional)
Wireless Communication 802.11 ac/a/b/g/n + BT (optional)
Touch PCT
Speaker 2W x2
Security

TPM 2.0 (Trusted Platform Module), Smart Card Reader, RFID ISO 15693/14443A (optional)

Display
Display Size 23.8” VA panel
Resolution 1920 x 1080
Max. Colors 16.7M
Contrast Ratio 3000:1
Luminance (cd/m2) 250

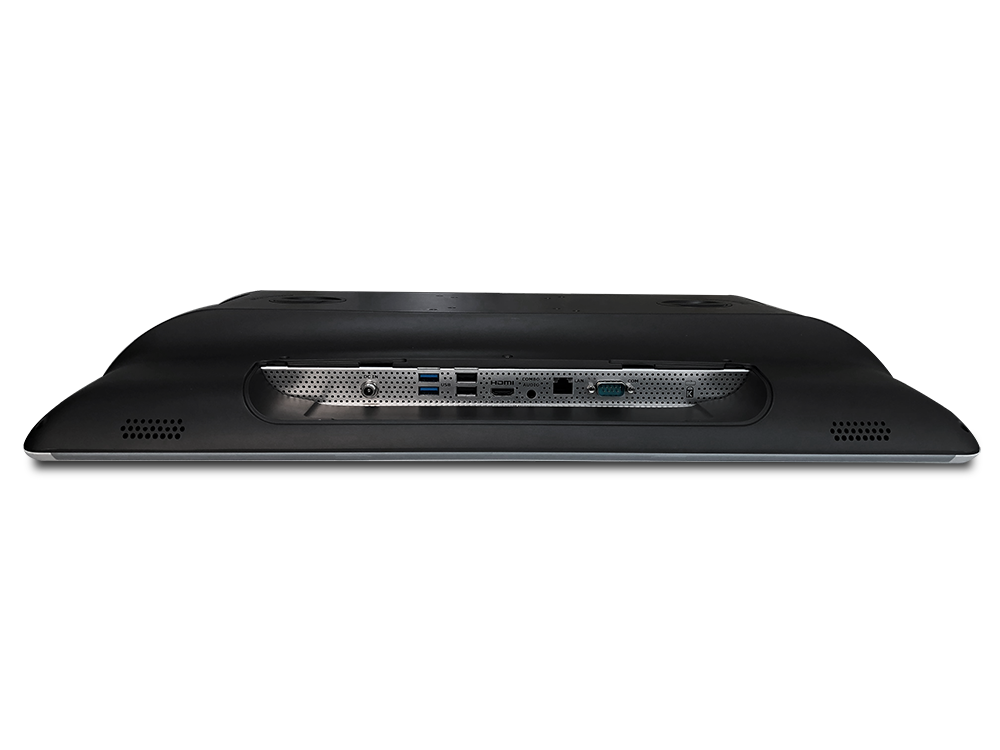

I/O
USB Rear I/O: USB 3.0 x 2, USB 2.0 x 2

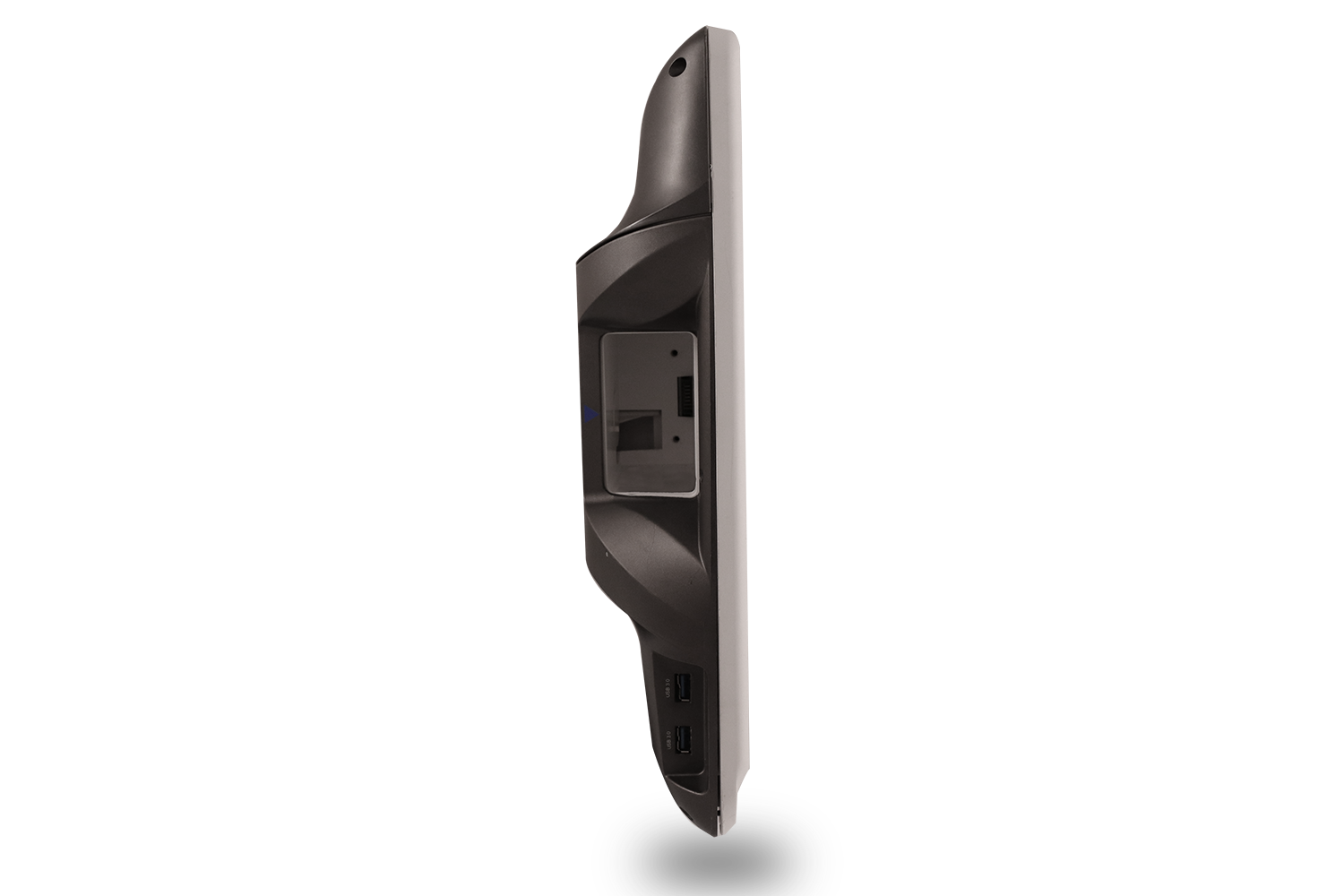

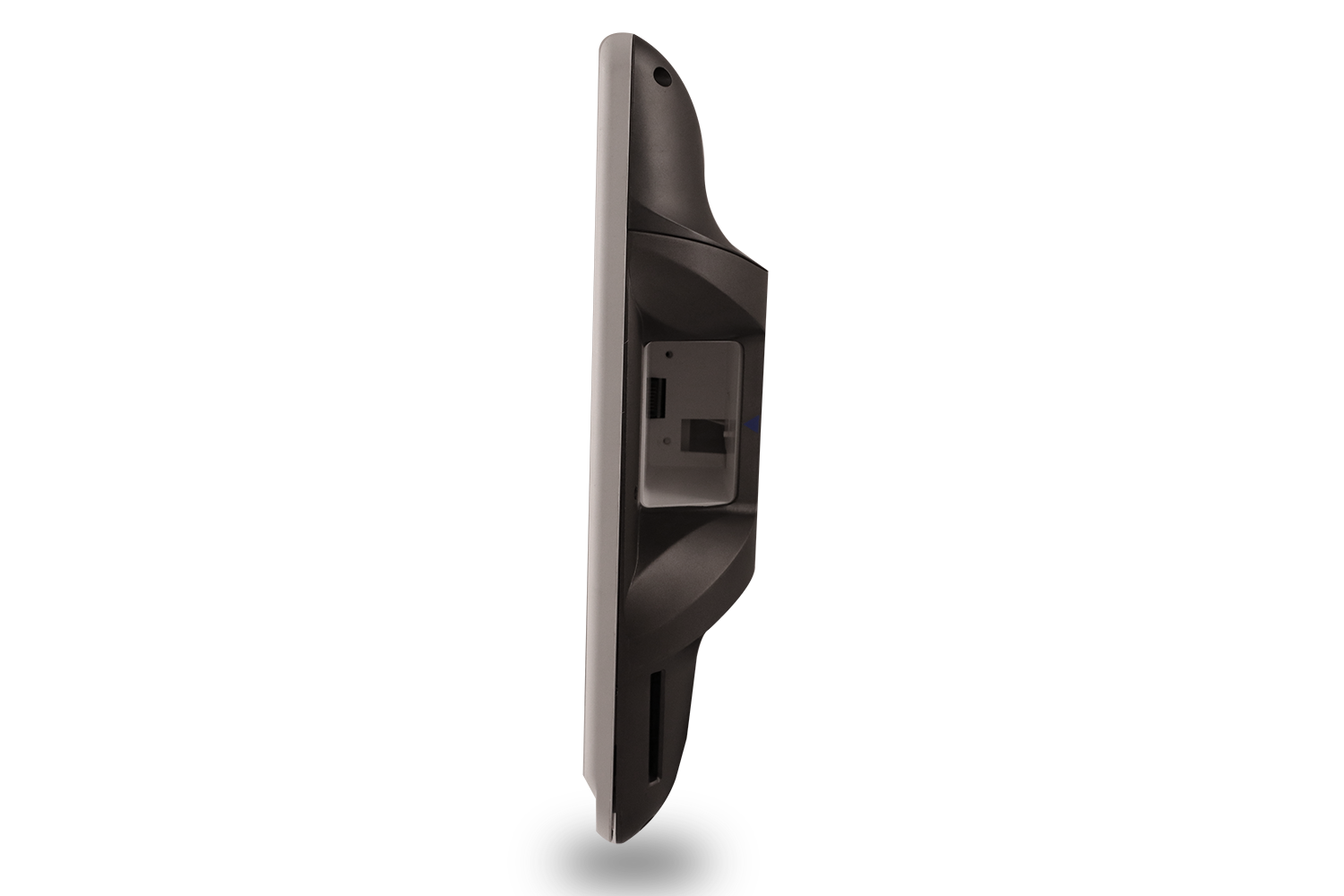

Side I/O : USB 3.0 x2
Video Out HDMI out  x1
COM COM port x1
Audio Combo audio port x1
Security Kensington slot
Ethernet Gigabit LAN x1
DC-in 24V DC-in x1
Mechanical and Environmental
VESA 75/100 mm VESA mount
Operating Temperature 0°C ~ 40°C(32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Storage Humidity 10%~95%@35°C, non-condensing
Dimension 607(L) x 78(W) x 404(H) mm
Net Weight without Battery 8kg (17.6 lbs)
Packing Size 730(L) x 240(W) x 550(H) mm
Gross Weight 12kg (26.5 lbs)
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/ A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
