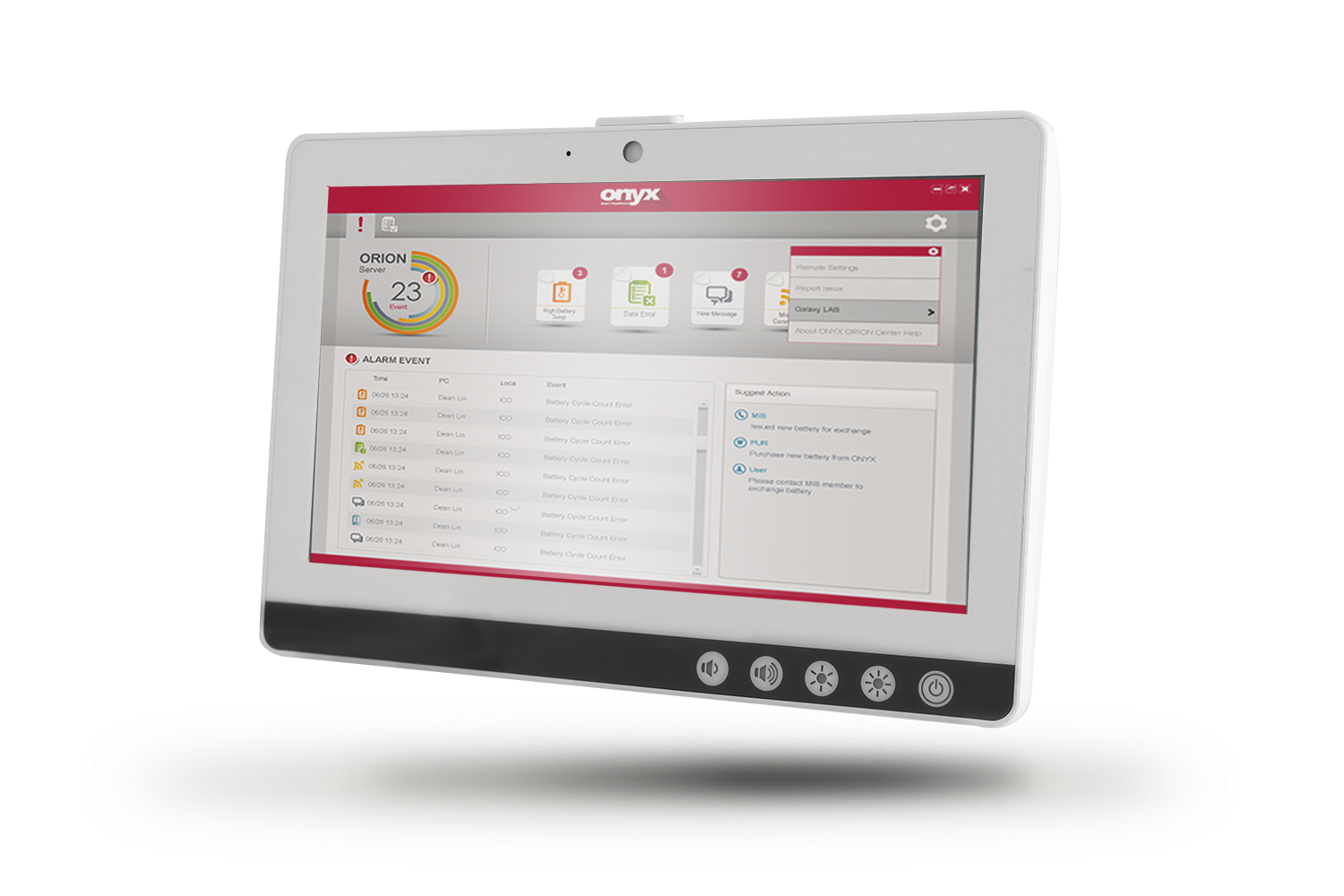

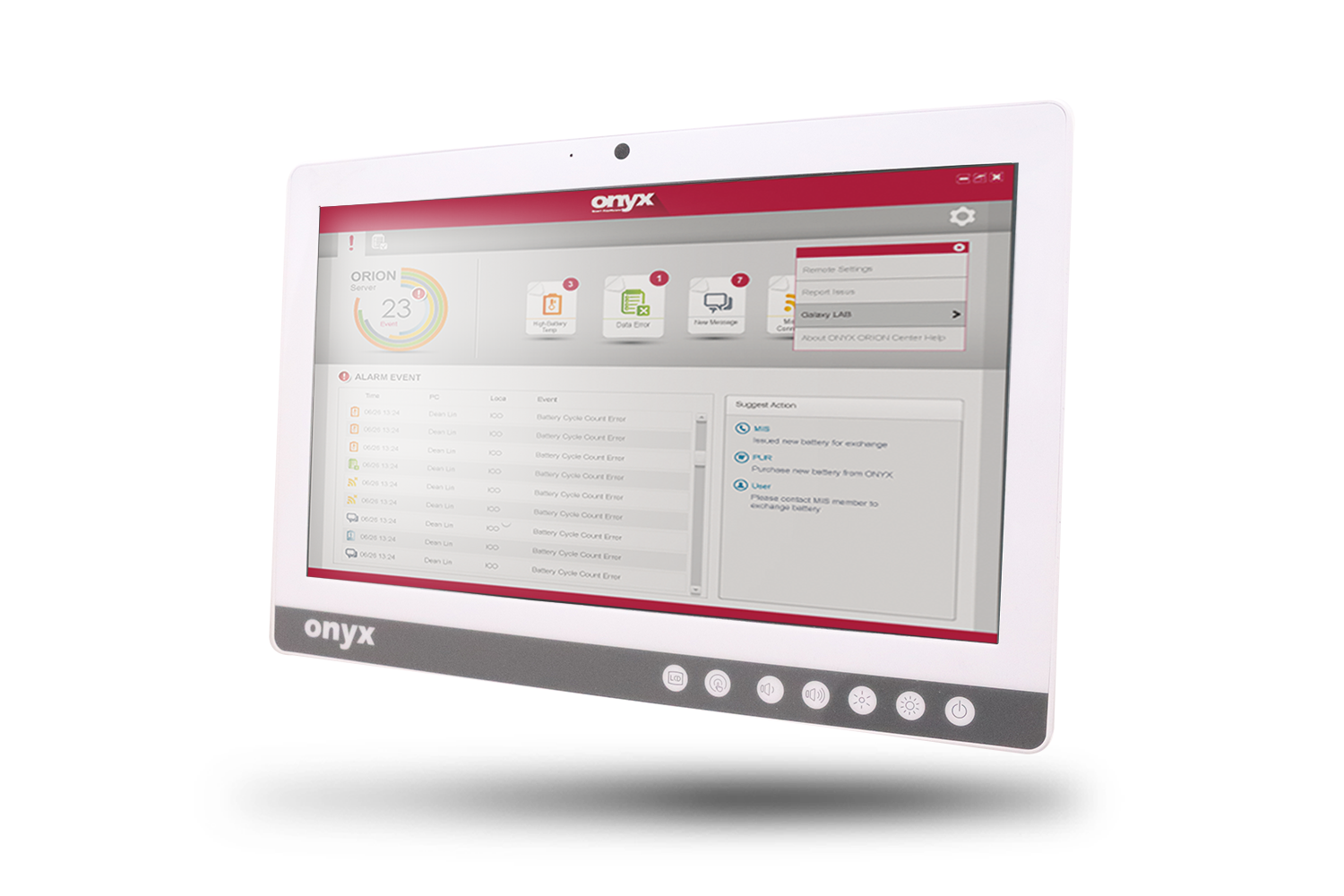

Venus-173

17” 24/7 Mobile Power Workstation

Product Feature

  • Highest level of medical safety protection , EMC4.0/ Safety 3.1
  • Cleanability with hospital solvents

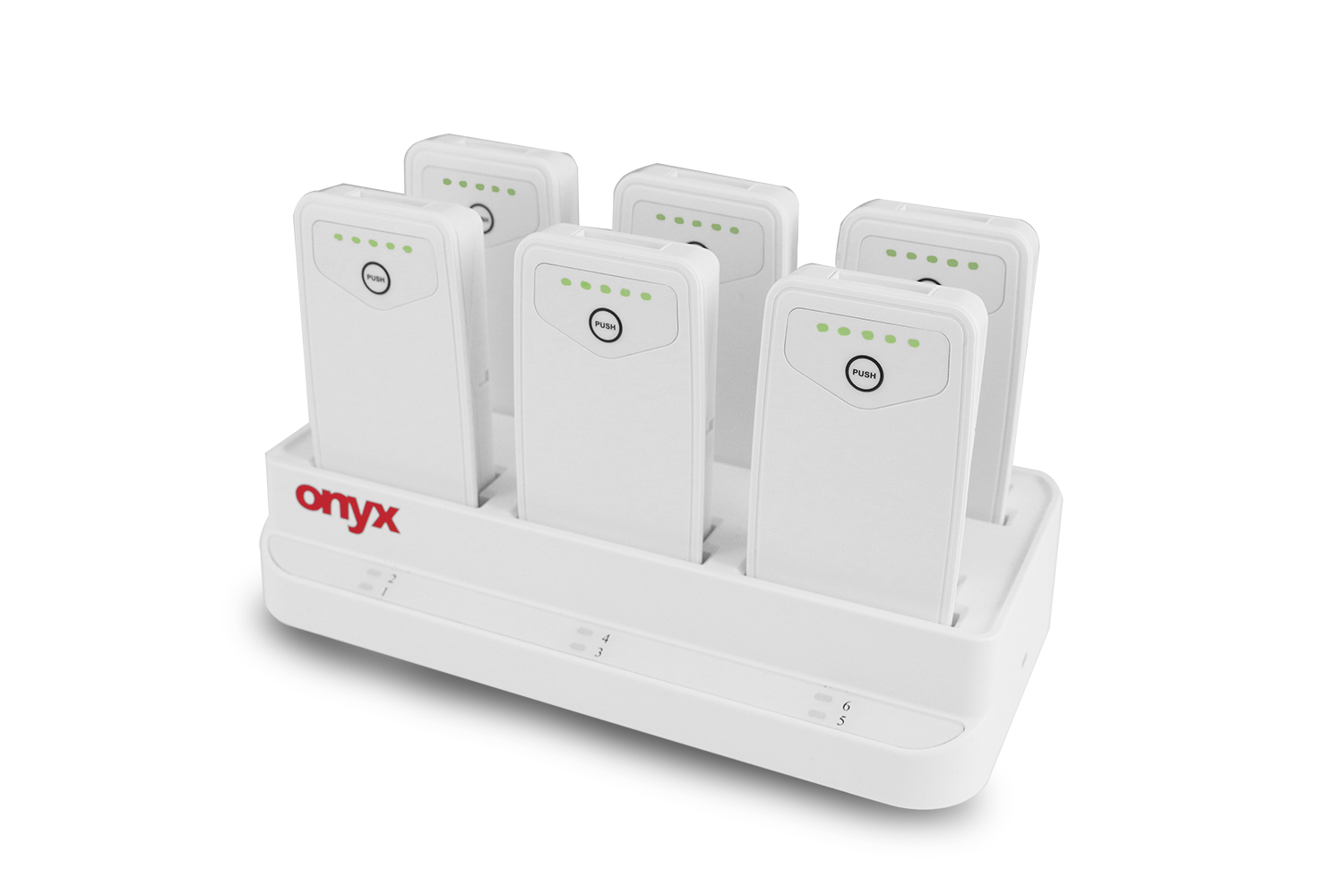

  • Hot swappable design, support 24/7 run time
  • Intel® Skylake Dual-Core i5 Support remote monitor/control/update (ORION compatible)
  • isolated LAN / COM port
  • IP54
  • TAG RFID
  • Swap
  • EN/UL 60601-1
  • Fan-less
  • SDK
  • creative design

Features

Specifications

Main Specifications
Processor Intel® Skylake Dual-Core i5
System Memory DDR4 up to 16GB
OS Support Microsoft® Windows 7 (32bit/64bit)
Microsoft® Windows 8.1 (64bit)
Microsoft® Windows 10 (64bit)
Ubuntu 18.04 LTS
IGEL (thin client solution)
Graphics Intel® HD Graphics 520
Storage M.2 SSD up to 512GB (optional)
Wireless Communication 802.11 ac/a/b/g/n + BT 4.0 (optional)
Touch R-TS
Speaker 3W x2
Security TPM 2.0
Display
Display Size 17” LCD
Max. Resolution 1280 x 1024
Luminance (cd/m2) 250
Max. Colors 16.7 M
Contrast Ratio 1000:1

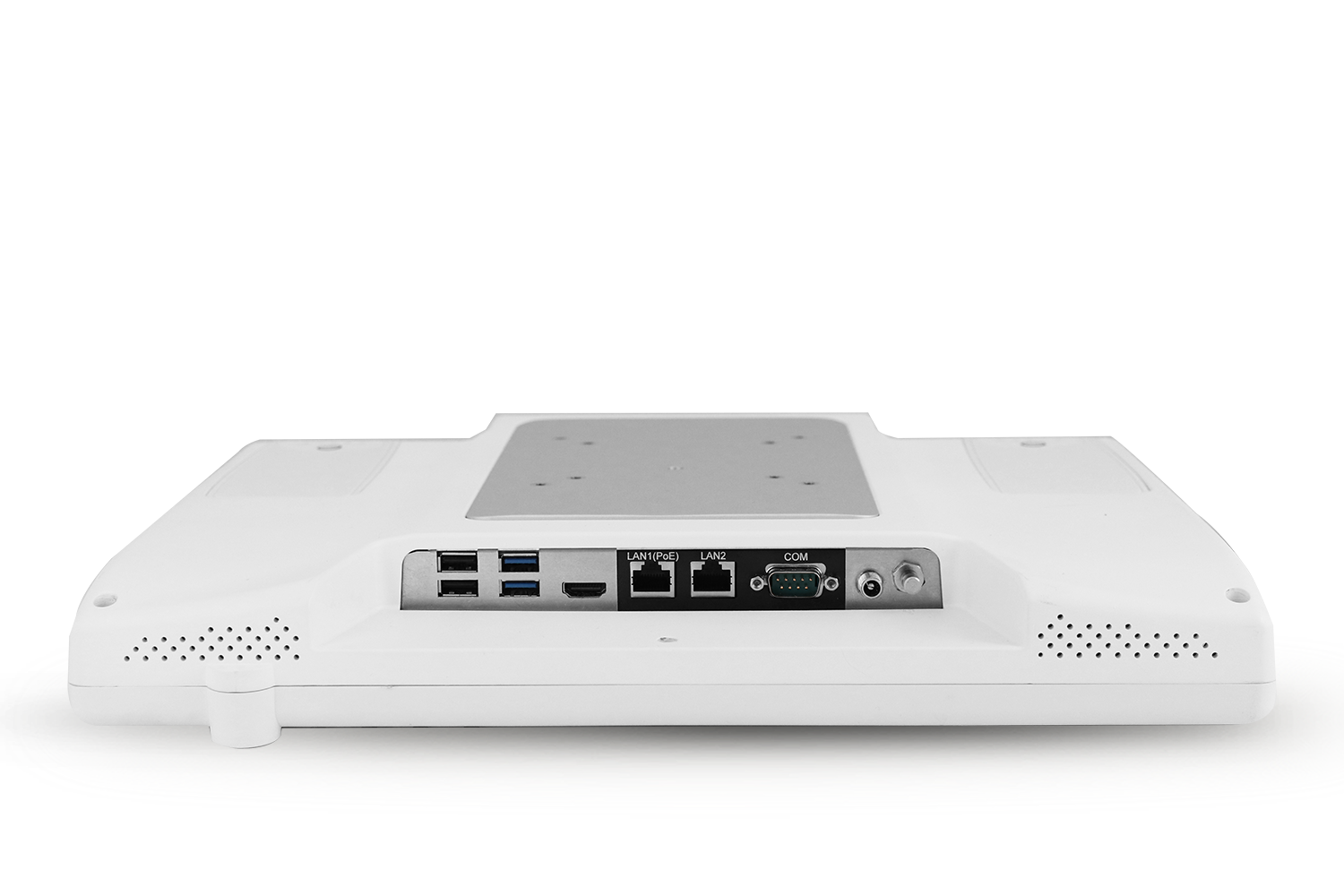

I/O
USB USB 3.0 x 2 , USB 2.0 x 2
Video Out HDMI 1.4 x1
COM COM port x1
Ethernet Gigabit LAN x 2
DC-in 12V DC-in x1
Mechanical and Environmental
VESA 75/100 mm VESA mount
Operating Temperature 0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Dimension 384(L) x 68(W) x 345(H) mm
Net Weight 4.5kg
Gross Weight 5.6 Kg
Package Dimension
(W x D x H)
510(L) x 200(W) x 480(H) mm
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/ A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
