ZEUS-248

24” Fanless 7th Generation Core i7 Professional Medical All in One PC

Product Feature

  • Intel® 7th Generation Core i7-7600U 3.9GHz Dual Core Processor

  • 24" 250-nit Full HD High Contrast MVA LCD

  • Supports DDR4 SODIMM up to 32GB

  • Capacitive Multi-Touch Screen / 5 Wire Resistive Touch Screen

  • Easy Cleaning Flat Screen
  • 10 Programmable Smart Function Keys with Dual Colors LED Status Indication
  • LAN/USB(optional)/COM(optional) Medical Isolation

  • Super Speed 10Gb/s USB 3.1 Port

  • PCI Express[x4] x 1, PCI Express[x1] , PCI x1(optional)

  • Trusted Platform Module / Smart Card Reader(optional) / RFID Reader(optional)
  • Remote Management: Intel Active Management Technology
  • +12V to +24V wide range DC input / 100V to 240V AC input
  • 25Wh Backup Battery(optional)
  • IP54
  • TAG RFID
  • EN/UL 60601-1
  • Fan-less
  • Isolated
  • Touch
  • battery change
  • SIAA

Features

1 6

Specifications

Main Specifications
Processor Intel® 7th Generation Core i7-7600U 3.9GHz Dual Core
System Memory DDR4 SODIMM up to 32GB
Expansion PCI Express[x4] x 1, PCI Express[x1] , PCI x1(optional)
Storage Disk Drive 2.5" SATA Hard Disk Drive/SSD x 1
Slim DVD-RW Drive x 1(optional)
M.2 SSD x 1
Security Trusted Platform Module, Smart Card reader(optional), RFID(optional)
Wireless Communication 802.11a/b/g/n/ac(optional), Bluetooth 4.1 (optional)
Speaker 5W x 2
Function Key Speaker Volume Up/Down,
LCD Brightness Up/Down,
LCD On/Off, Touch Screen On/Off,
DICOM Mode(optional), Reading Light On/Off
Power Requirement DC 12~24V / AC 100~240V , 25Wh Back Up Battery(optional)
OS Support Windows® 10, Linux®
Display
Size 24” LCD
Resolution 1920 x 1080
Luminance 250nits
View Angle 178˚(H)/178˚(V)
Contrast Ratio 3000:1
Back Light Life Time 30,000 Hours
Touch Screen Capacitive Multi-Touch/5-Wire Resistive

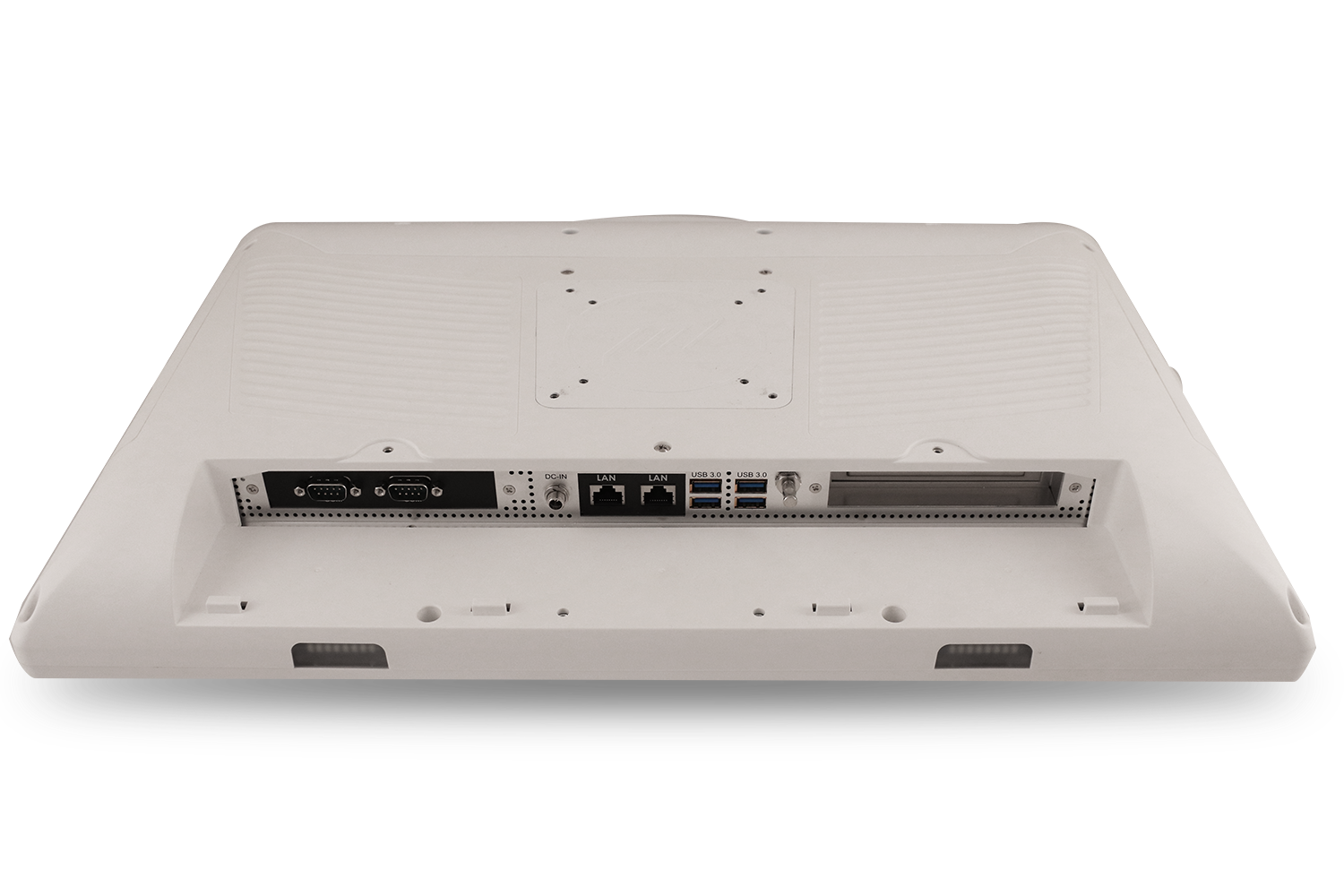

I/O
USB USB 3.0 x 4, USB 3.1 x 2(in side I/O),
Isolated USB 2.0 x1(optional)
Serial Port Isolated RS-232 x 2(optional)
Ethernet Isolated Gigabit LAN x2
Audio Mic(optional)/ Line out(optional)
Video Out Display Port 1.2 x1(optional)
Mechanical and Environmental
Power Consumption Full Loading: 60 Watts
Operating Temperature 0°C ~40°C( 32°F ~104°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Mounting VESA 75/100 mm
Degree of protection IP65 in the front, IP54 in the back
Dimension 600 x 415 x 65 mm
Package Size 790 x 220 x 550 mm
Gross Weight 14 kg (30.86 lb)
Net Weight 9.2kg (20.28lb)
Certifications CE: EN 60601-1-2:2015(V4.0),
EN 60601-1:2006/A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
