• UPower Pro-22 UPower Pro-22

UPower Pro-22

2-Slot Swappable Battery

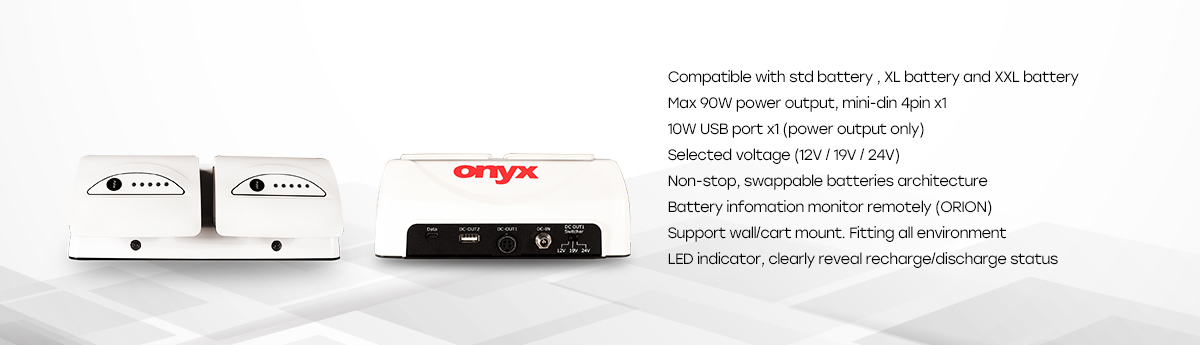

Product Feature

  • Compatible with std battery , XL battery and XXL battery
  • Max 90W power output, mini-din 4pin x1
  • 10W USB port x1 (power output only)
  • Selected voltage (12V / 19V / 24V)
  • Non-stop, swappable batteries architecture
  • Battery infomation monitor remotely (ORION)
  • Support wall/cart mount. Fitting all environment
  • LED indicator, clearly reveal recharge/discharge status

Features

1 6

Specifications

Main Specifications
Output Voltage 12/19/24V (can be selected only one voltage)
Output Capacity 90W mini-din 4pin x1; 10W USB Type A x1 (power output only)
*check user manual for more detail info
Battery Charge Time 3hrs for standard battery; 3.5hrs for XL battery;
4.5hrs for XXL battery
Input Power 24V Medical adaptor
Protection Supports protection from over-voltage (input), overcurrent
(input and output), short circuit, over-charge

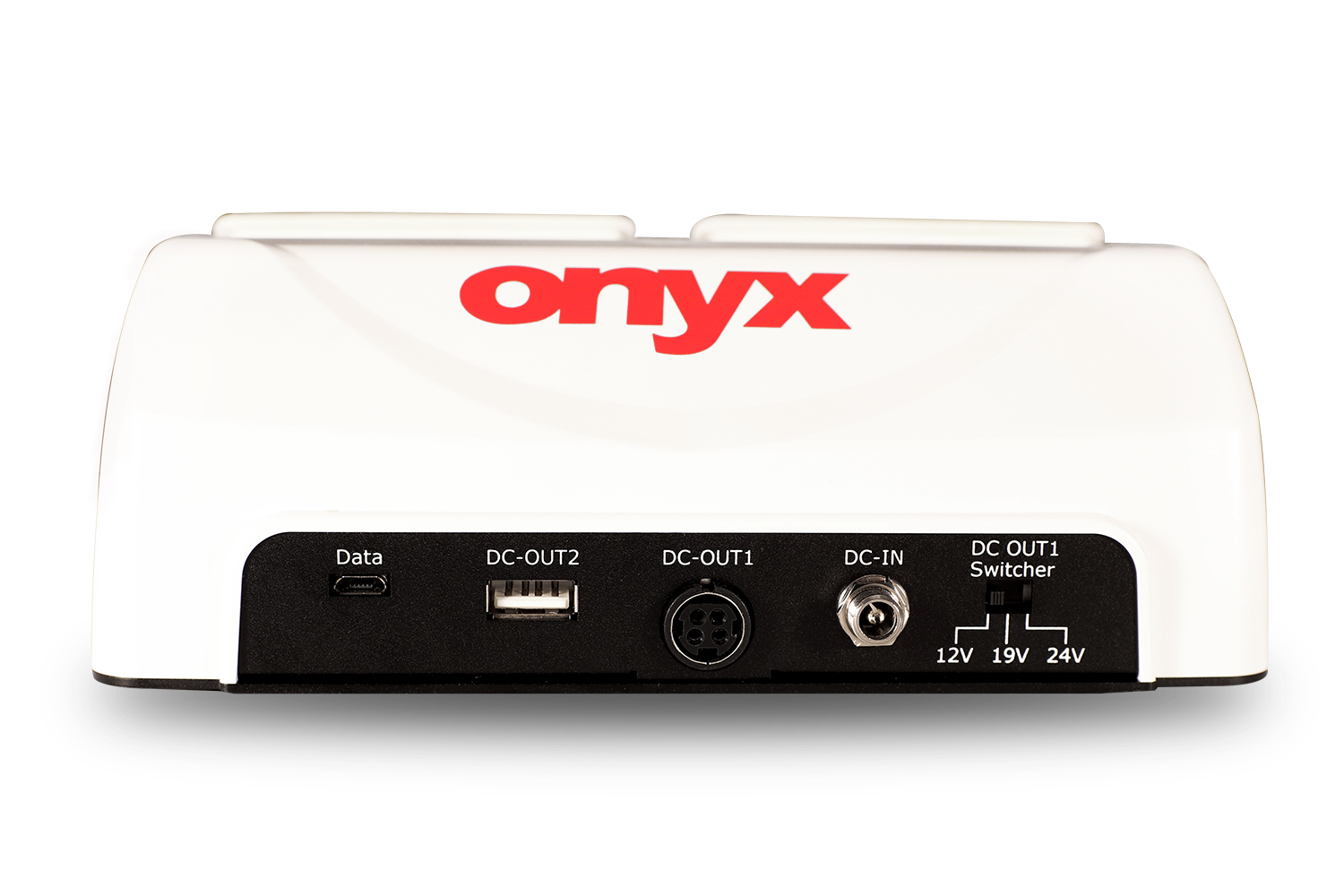

IO interface Mini-din 4pin x1; USB Type A x1 (Power output only);
USB micro-B x1(Data transport only); DC-in
Certification CE: EN 60601-1-2:2015(V4.0), EN 60601-1:2006/
A1:2013(V3.1)
FCC: Part 18 Class B
UL: ANSI/AAMI ES60601-1:2012 (V3.1)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.1)
Mechanical and Environmental
Architecture ABS + PC
Color White
Dimension 191(L) x 64(W) x 117(H) mm
Net Weight 0.67kg (1.47 lbs)
Packing Size 390(L) x 290(W) x 110(H) mm
Gross Weight 2kg (4.41 lbs)
Operating Temperature 0°C ~ 35°C(32°F ~ 95°F)
Storage Temperature -20°C ~ 60°C(-4°F ~ 140°F)
Storage Humidity 10%~95%@35°C, non-condensing
Battery LED Indicator
Blue Lighting Full Charge (AC mode)
Blue Flashing Charging (AC mode)
Green Lighting Capacity 16%~100% (Battery mode)
Orange Lighting Capacity 8%~15% (Battery mode)
Purple Lighting Capacity 0%~7% (Battery mode)
Green-Purple Flashing Charging error
Power Supply Specification
Input Voltage 100-240V AC @50-60 Hz
Output Power 24V / 6.25A
Battery Pack (optional)
Battery Type 6 / 9 / 12 Cell Lithium-ion battery
Battery Capacity 5700 / 8550 /12060 mAh
Output Voltage 10.8 / 10.95 / 10.8 V
