MEDPC-9200
High Performance Medical Box PC with Intel ® 6th Generation Core™ iSeries

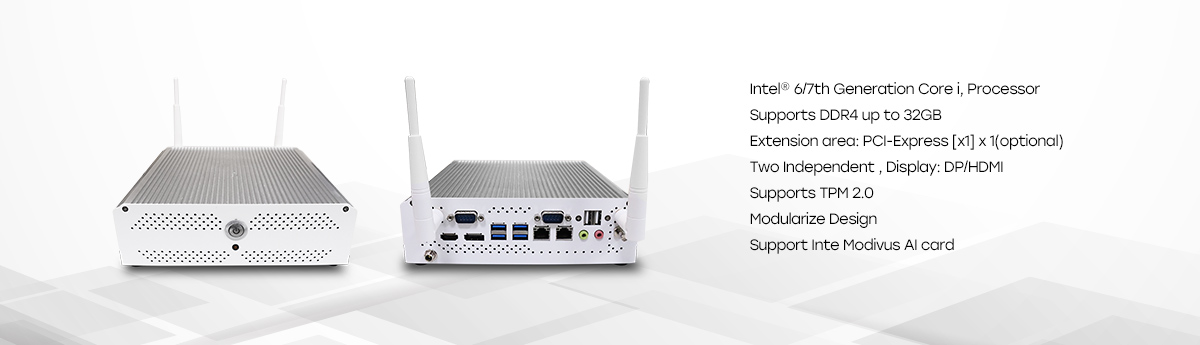

Product Feature
- Intel® 6/7th Generation Core i, Processor
- Supports DDR4 up to 32GB
- Extension area: PCI-Express [x1] x 1(optional)
- Two Independent , Display: DP/HDMI
- Supports TPM 2.0
- Modularize Design
- Support Inte Modivus AI card
Features
1
6
Specifications
| Main Specifications | |
| Processor | Intel® 7th/6th Generation Core™ i7/i5/i3 |
| System Memory | Supports Dual Channel DDR4 SODIMM up to 32 GB |
| OS Support | Windows® 7, Windows® 8,Windows®10, Linux® |
| Storage Disk Drive | 2.5” SATA SSD x 1 |
| Extension area | PCI-Express [x1] x 1(optional) |
| Security | TPM 2.0 |
| Power Requirement | DC 12V |
| I/O | |
| USB | USB 3.0 x 4 , USB 2.0 x2 |
| Serial Port | RS232 x 2 |
| Ethernet | Gigabit LAN x 2 |
| Video Out |
Display Port x 1 (Support up to 1920 x 1200 @60 Hz) , HDMI 1.4 x 1 |
| Audio | Mic-in, Line-out |
| Mechanical and Environmental | |
| Operating Temperature | 0°C ~ 40°C(32°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C(-4°F ~ 140°F) |
| Dimension |
197 x 197 x 59.5 mm for main layer 197 x 197 x 44 mm for extension layers |
| Package Size | 300 x 280 x 95 mm |
| Gross weight |
3.3 kg (7.25 lb) in the single layer, 4.0 kg (7.25 lb) in two layer |
| Net Weight |
2.5 kg in the single layer, 3.7 kg in two layers |
| Certifications |
CE : EN 60601-1-2: 2015 + A1: 2021 ( V4.1), EN 60601-1: 2007 + A1:2013 +A2:2021 ( V3.2) EN 55032:2015/A1:2020 EN55035:2017/A11:2020( ITE) IEC62368-1:2020+A11:2020 ( ITE) FCC : Part 15B/ Part 18 UL : ANSI AAMI ES60601-1:2005/A1:2012/A2:2021( V3.2) cUL : CAN/CSA-C22.2 No. 60601-1:14 (IEC 60601-1: 2005+A1:2012+A2:2020,MOD) ( V3.2) |
